A dedicated bass channel

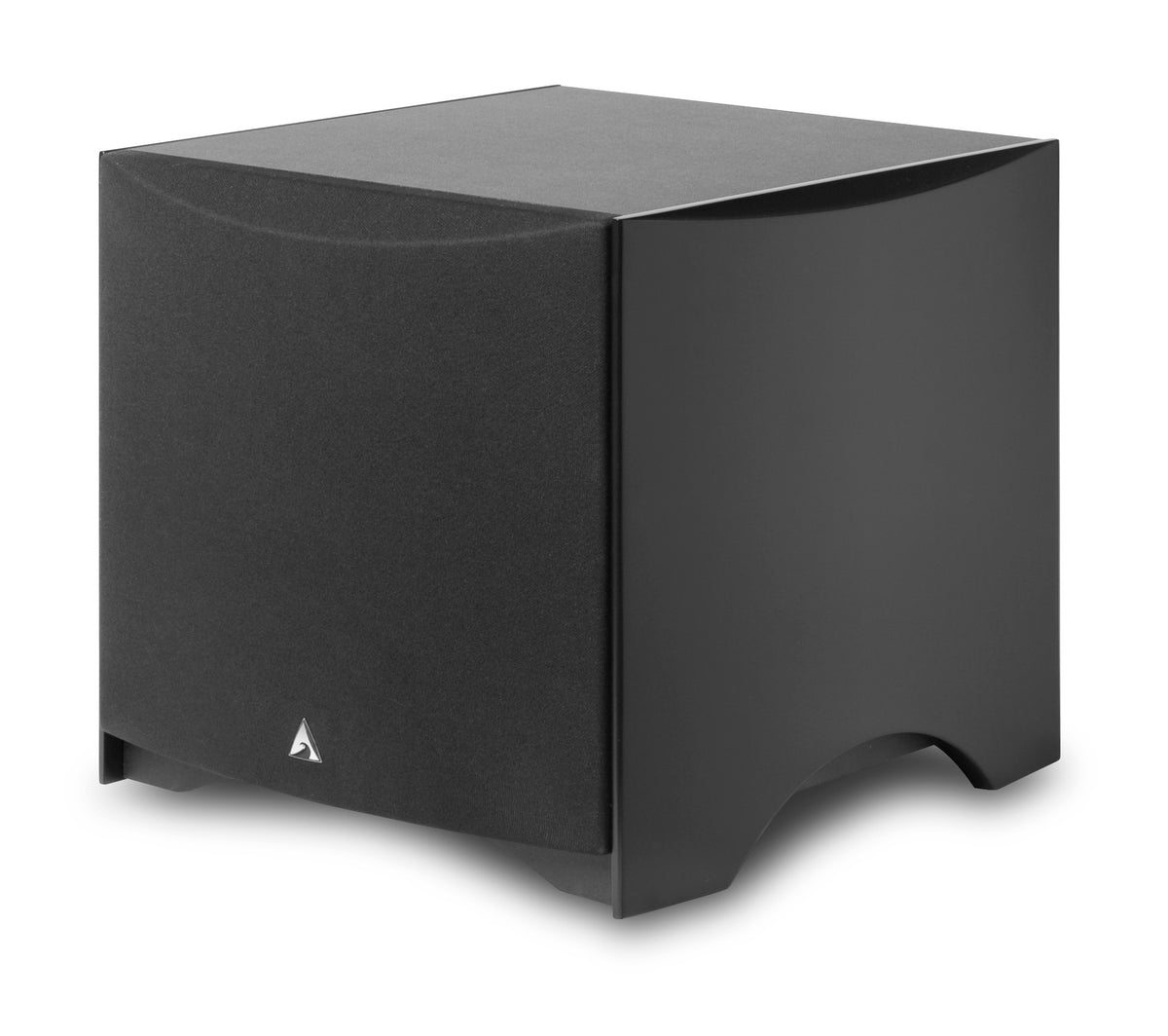

224SB is a powered subwoofer for a music or home theater system. Its job is to handle bass alongside the main speakers, with its own cabinet and amplification.
Position and setup affect how a subwoofer behaves in a room. Work through the level, crossover, and receiver settings before judging the balance from the listening position.
| Type/Features | Powered subwoofer, sealed enclosure |
|---|---|
| Features | 2-inch, four layer vented aluminum voice coil, vented motor |
| Amplifier Feature | Continuous 40–140Hz crossover, 18dB/octave low pass output |

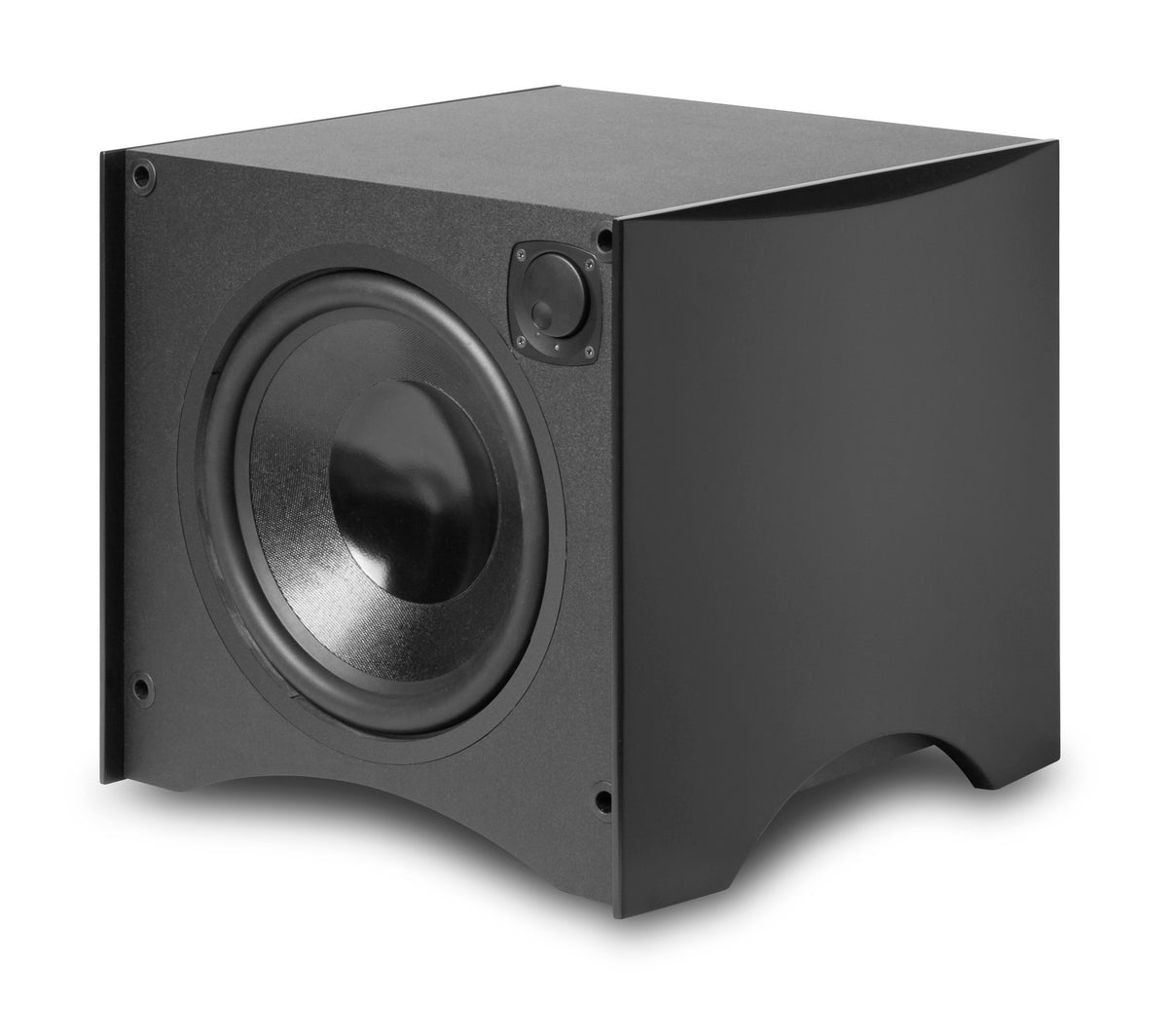

| Bass Driver | 10” long-throw composite cone |
| Output Power | 180W RMS |
| Frequency Response | 33Hz – 250Hz ±3 dB |
| Low Level (line) | 10k ohms |
| Peak Output | 103dB SPL into 1500 cubic Feet |

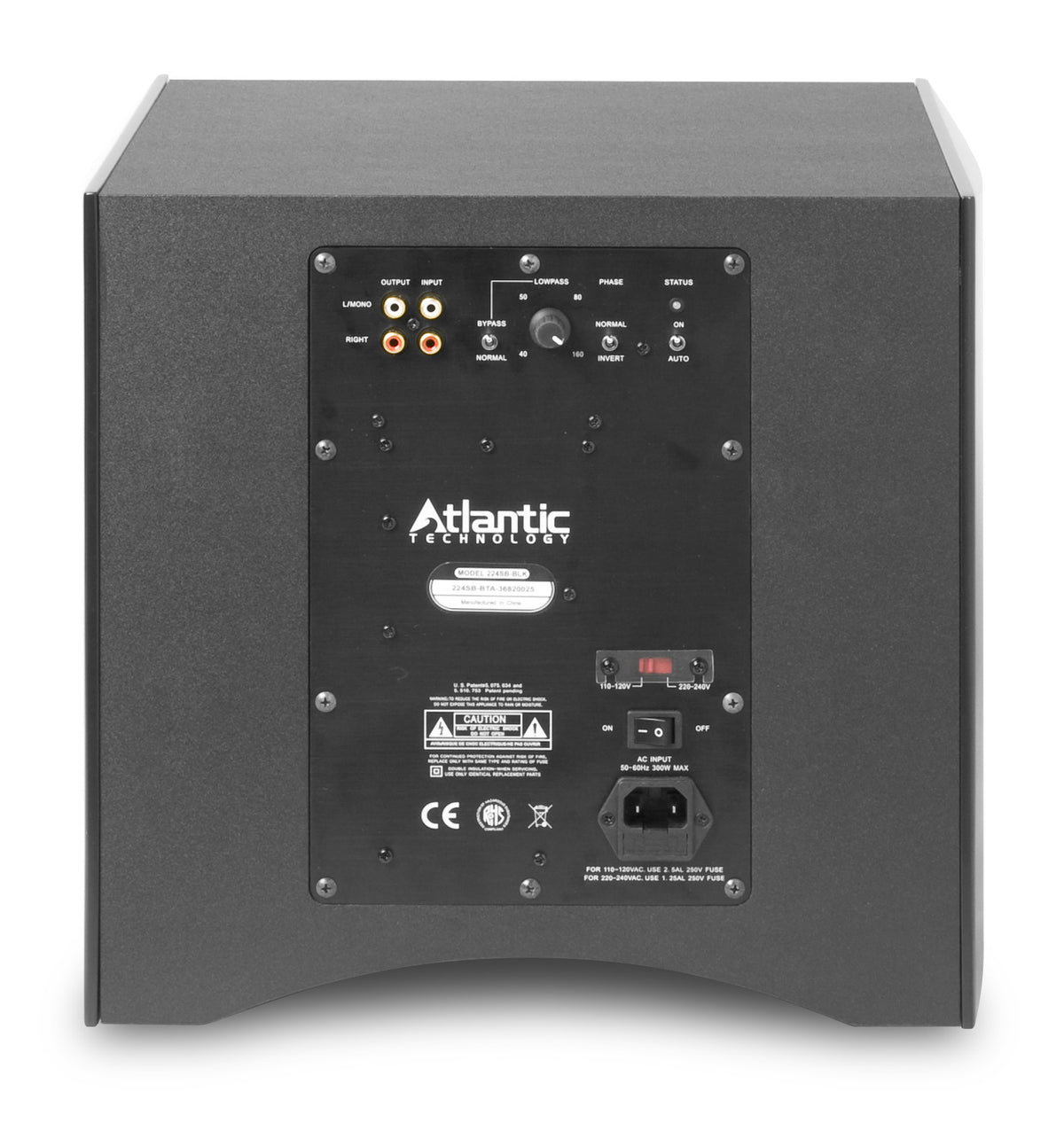

| Inputs | Variable low level stereo inputs and low level outputs |

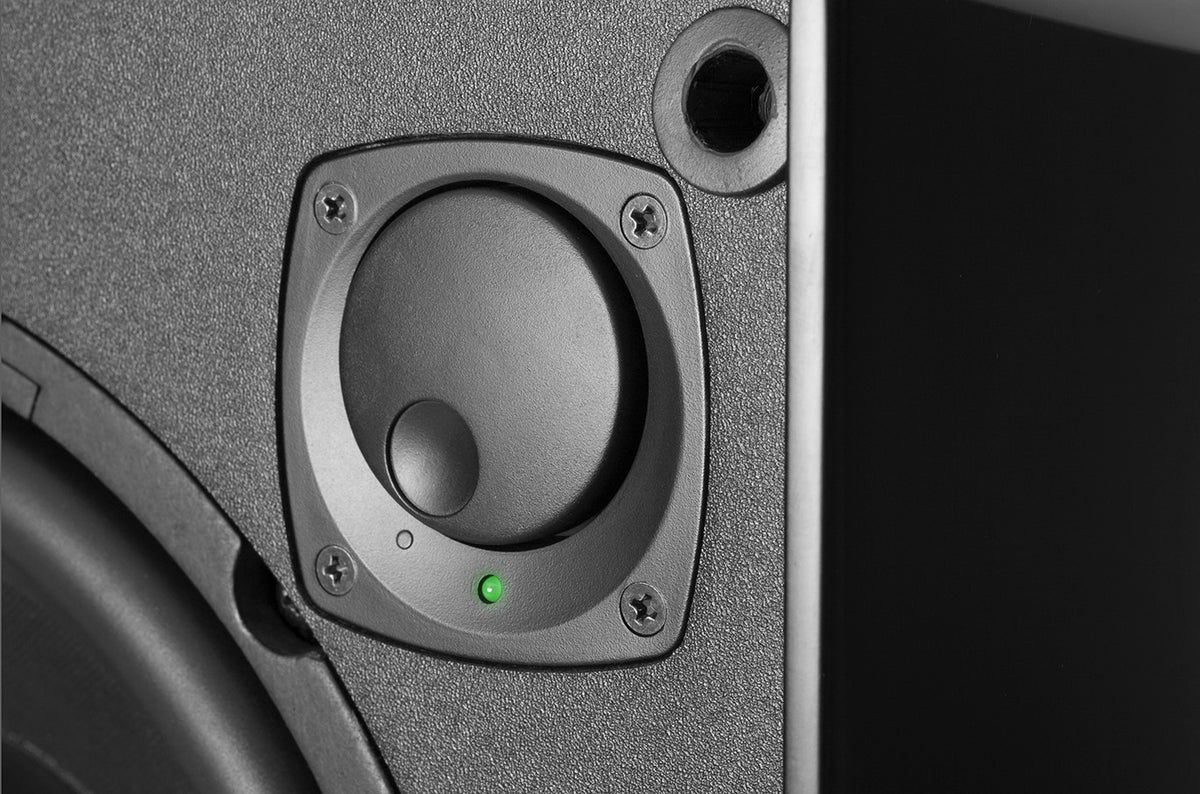

| Controls | Absolute phase invert switch, Auto signal sensing |
| Dimensions (WxHxD) including grille | 14.25 x 13.25 x 15.4 in. (368 x 337 x 391mm) |
| Weight | 31lbs/14kg |
| Power Requirements | 110-120/220-240V, 50/60Hz |
