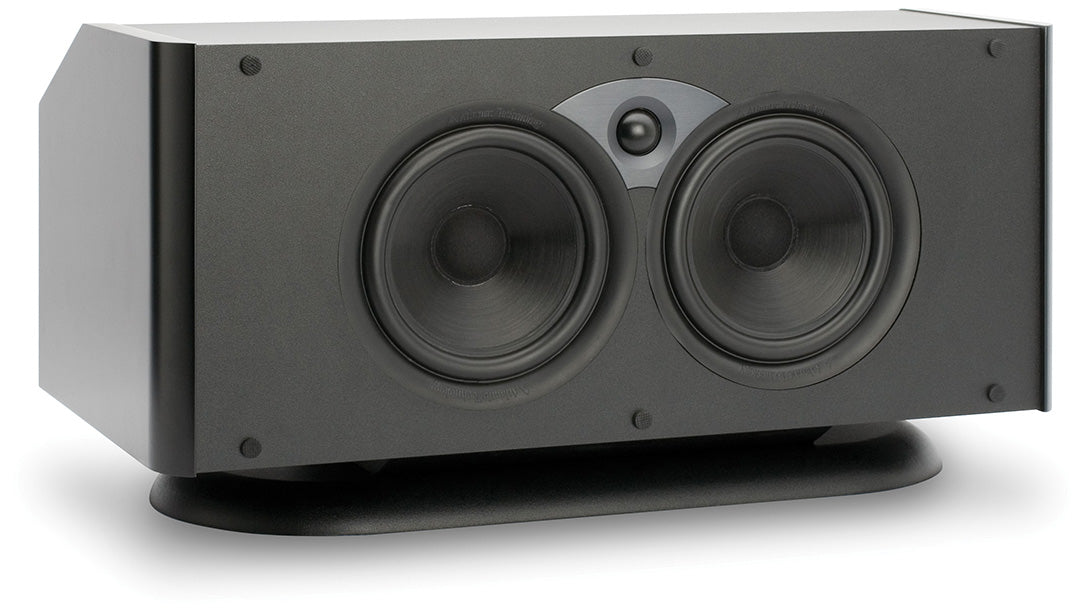

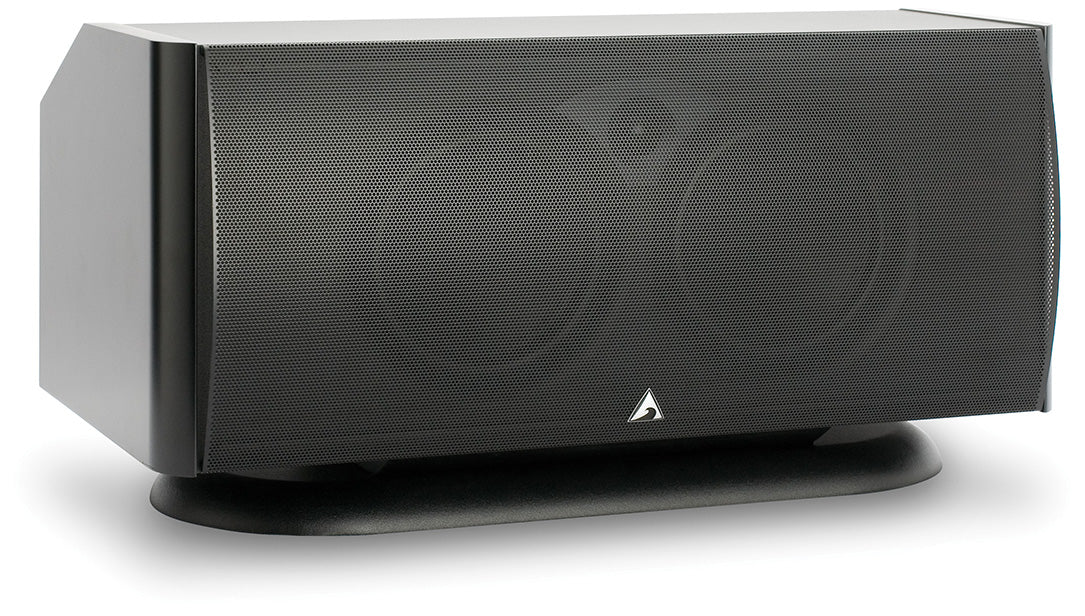

A center channel for the 6200e family
6200eC carries the center channel in a 6200e home theater system. It is designed to work with the matching left and right speakers and a dedicated subwoofer.
Place the horizontal cabinet centrally above or below the screen, with the drivers aimed toward the seating. Use the system's acoustic controls and the receiver's calibration together when setting up the front channels.
| Type | Sealed-box, 2-way |
|---|---|
| Woofer | (2) 6.5″ GLH |
| Tweeter | (1) 1″ silk dome |
| Frequency Response (± 3dB) | 60Hz – 20kHz |
| Frequency Response (± 6dB) | 50Hz – 20kHz |
| Nominal Impedance | 6Ω |

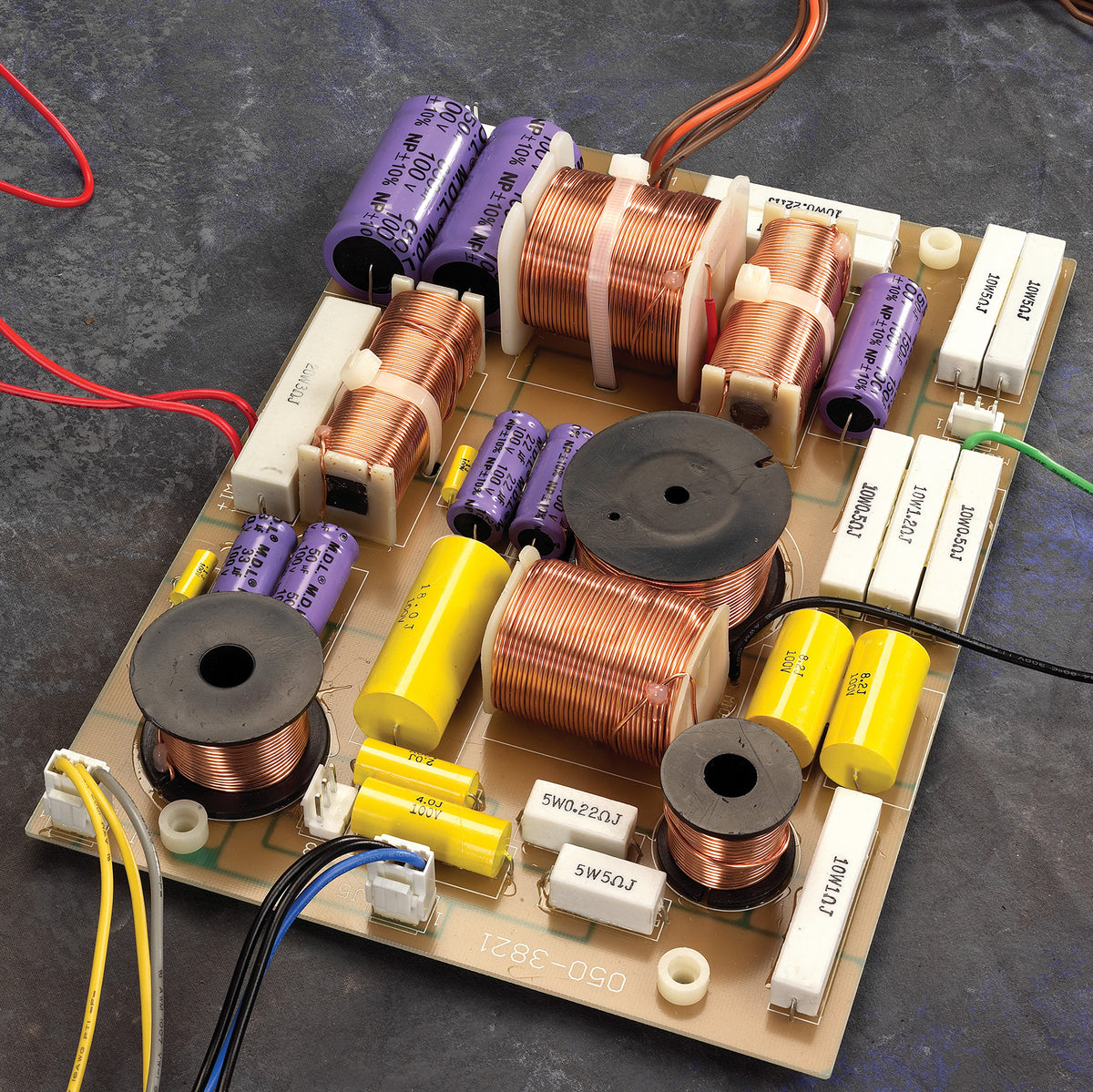

| Crossover Frequency | 3kHz |
| Sensitivity | 90dB |
| Recommended Amplifier Power | 15 – 150 Watts RMS |
| Dimensions w/ grilles(W x H x D) | 21.5 x 11.1 x 12in* (547 x 282 x 305mm*) |
| Weight (ea) | 25.0lbs; 11.3kg w/base |
