Bass for the front row and beyond

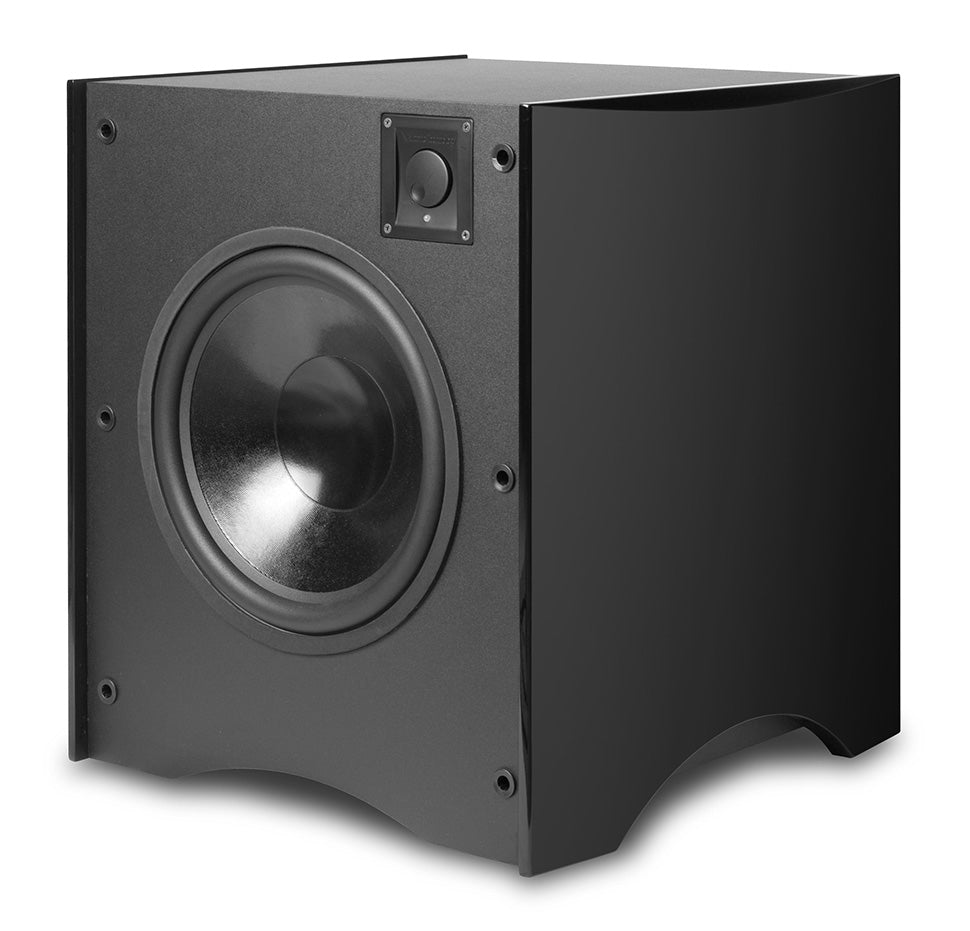

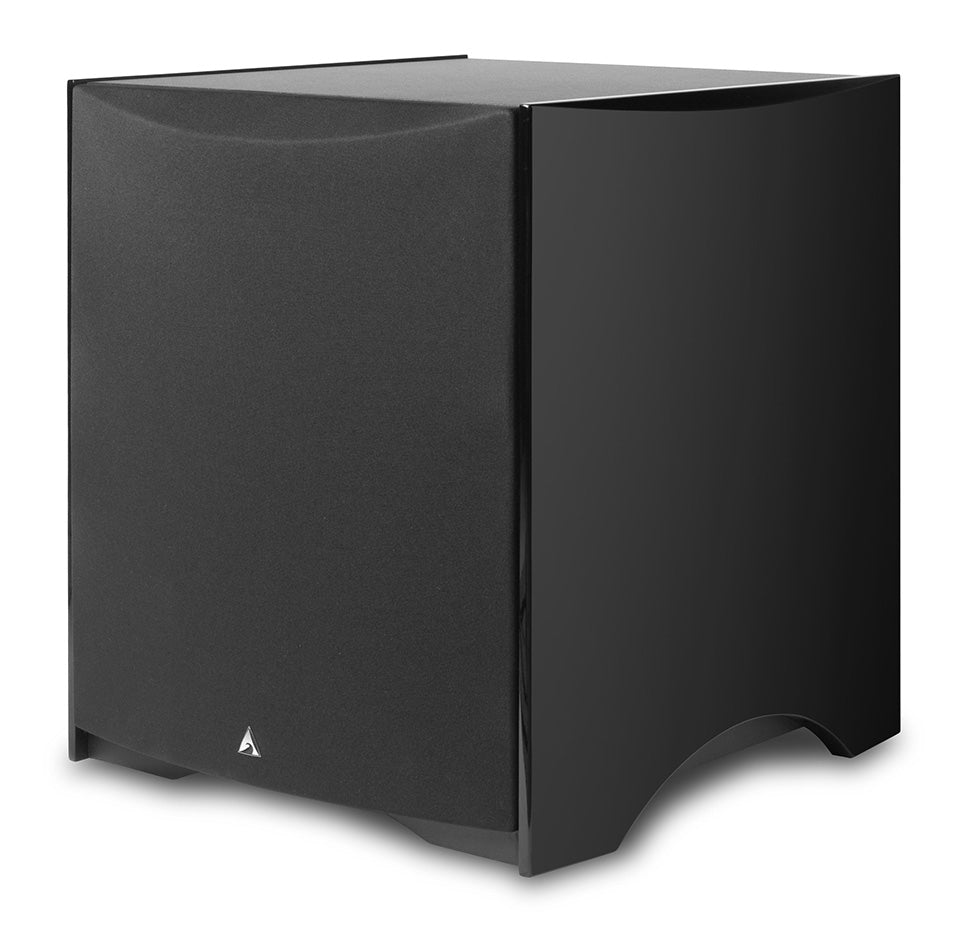

The 642eSB is a powered subwoofer for music and home theater systems. Its curved cabinet houses the bass driver and amplifier, giving the low-frequency channel a dedicated speaker of its own.

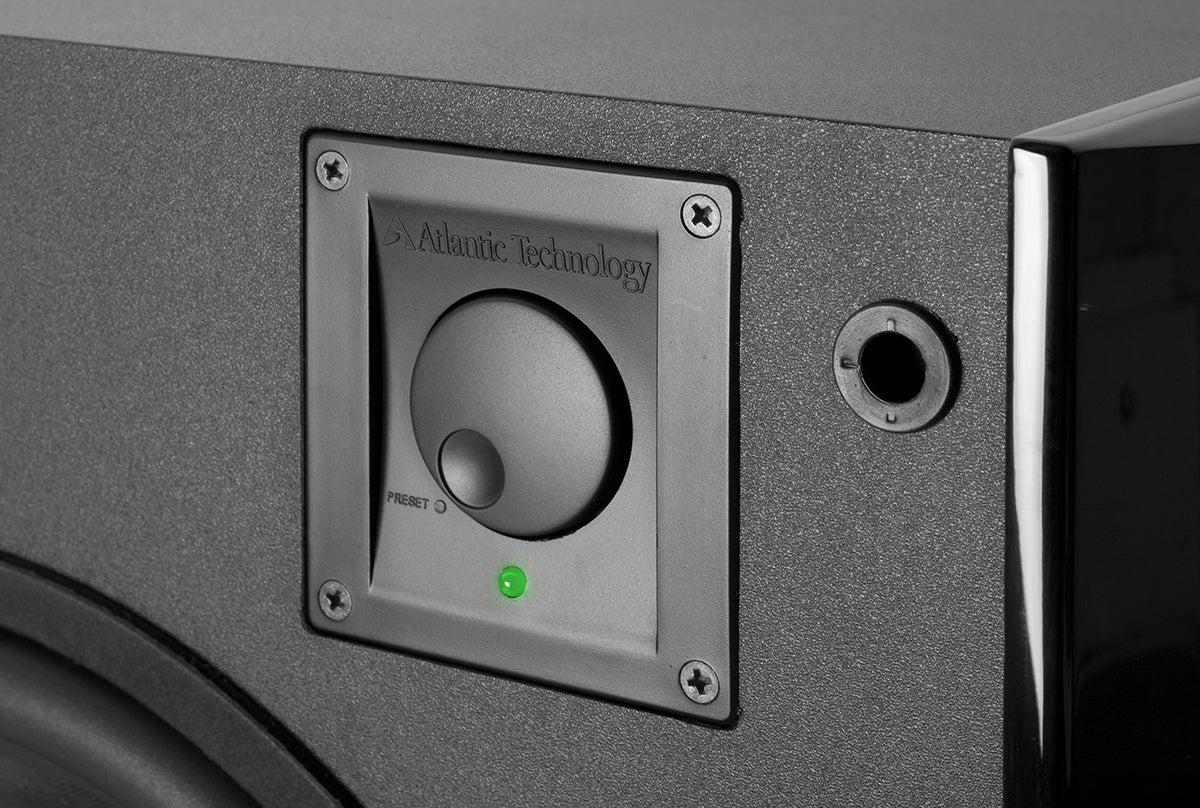

Use the level and crossover controls to blend it with the main speakers, or follow the receiver's bass-management settings. The subwoofer manual covers the connections and adjustments needed during setup.
| Type | Powered subwoofer, sealed enclosure |
|---|---|

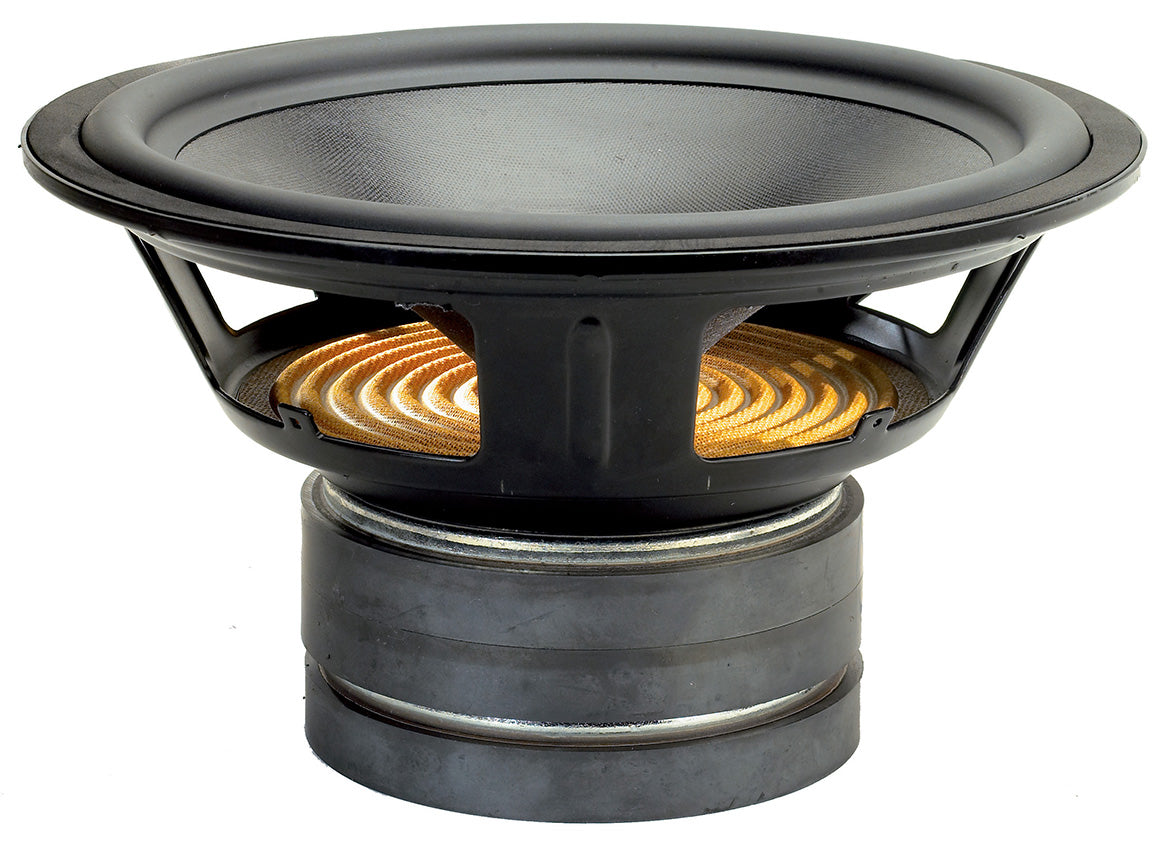

| Bass Driver | 12” long-throw composite cone |
| Features | 2-inch, four layer vented aluminum voice coil, vented motor |
| Amplifier Feature | Continuous 40–140Hz crossover, 18dB/octave low pass output |
| Output Power | 350W RMS |
| Frequency Response | 25Hz – 300Hz ±3 dB |
| Low Level (line) | 20k ohm |
| Peak Output | 107dB SPL into 2000 cubic Feet |

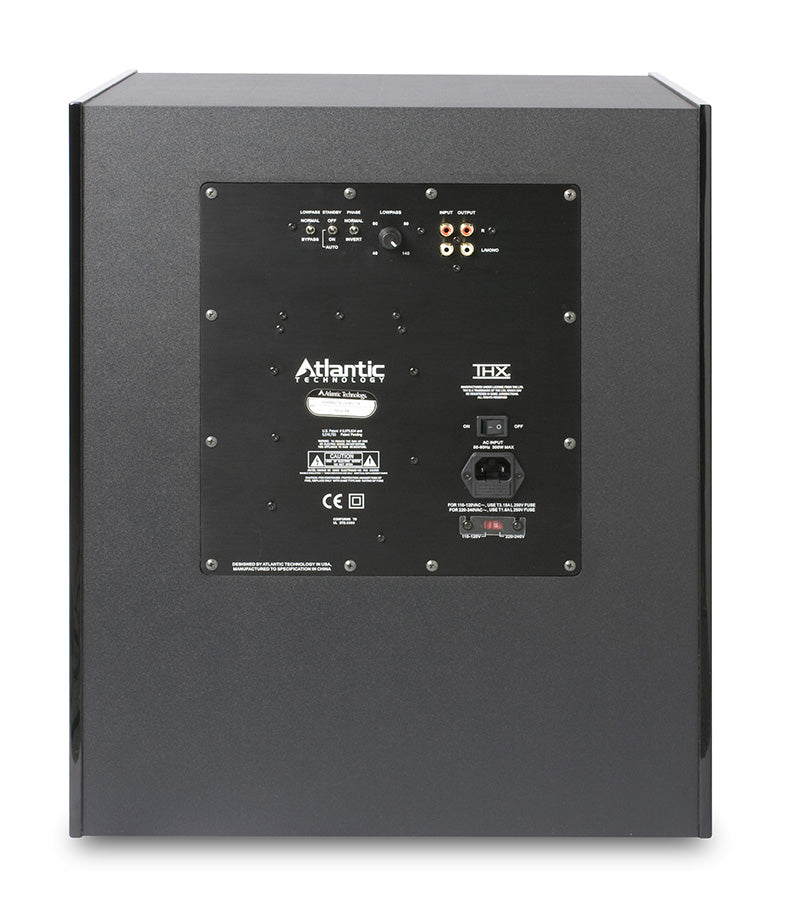

| Inputs | Variable low level stereo inputs and low level outputs |
| Controls | Absolute phase invert switch, Auto signal sensing |
| Dimensions w/ grilles(W x H x D) | 19.00 x 21.00 x 20.50in; 483 x 534 x 521mm (Depth w/grille) |
| Weight (ea) | 65lbs/29.5kg |
| Power Requirements | 110V AC 50/60Hz; 240V AC 50/60Hz |
