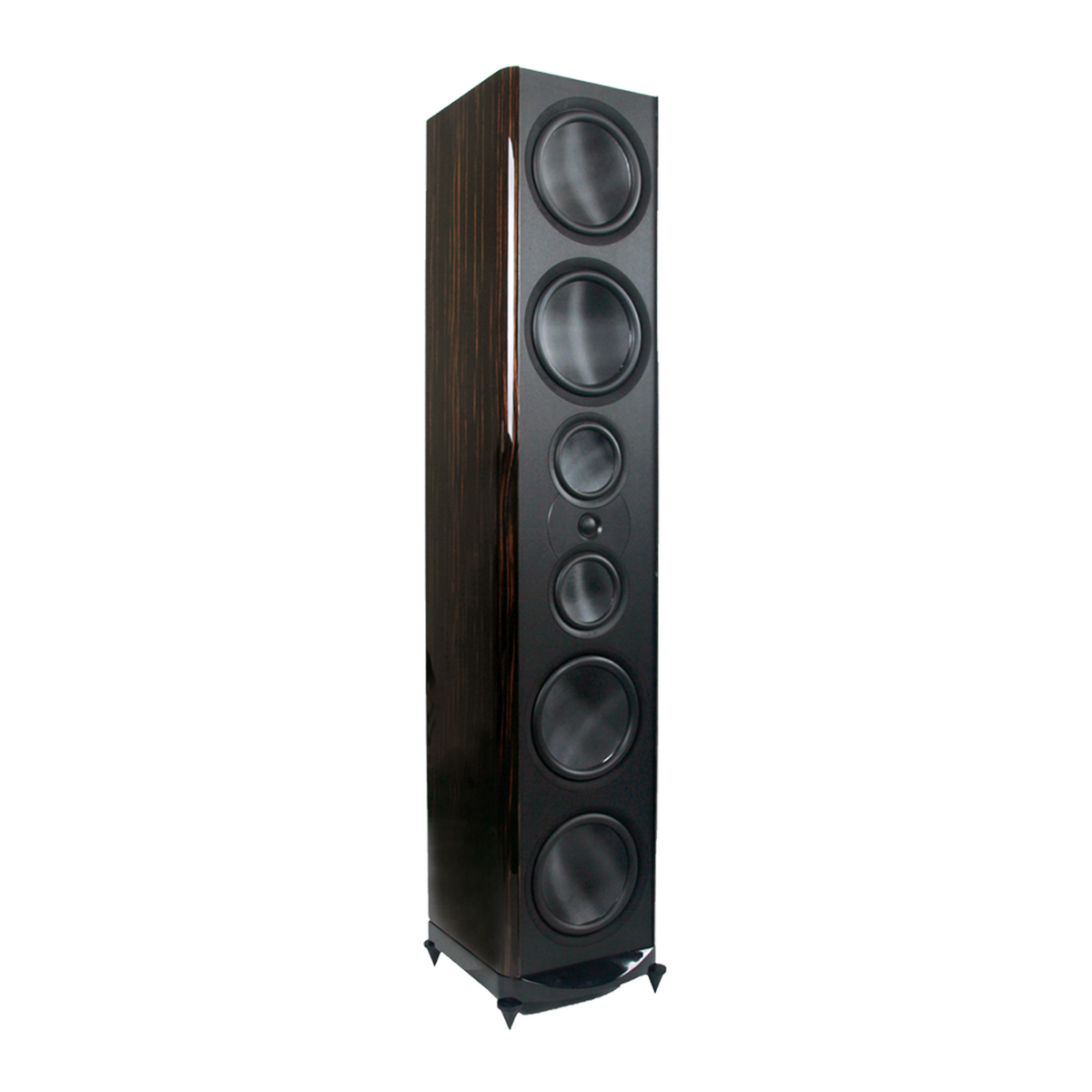

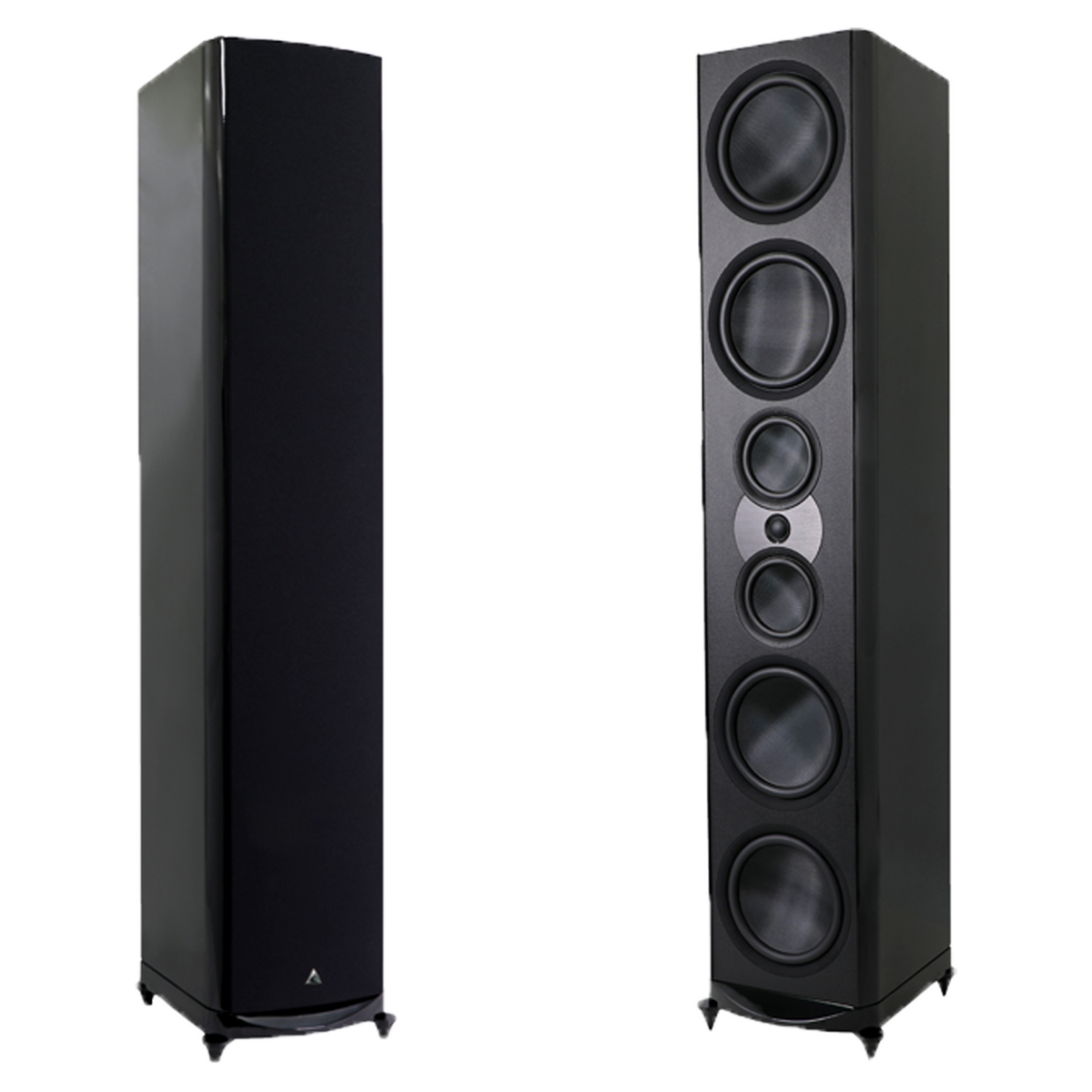

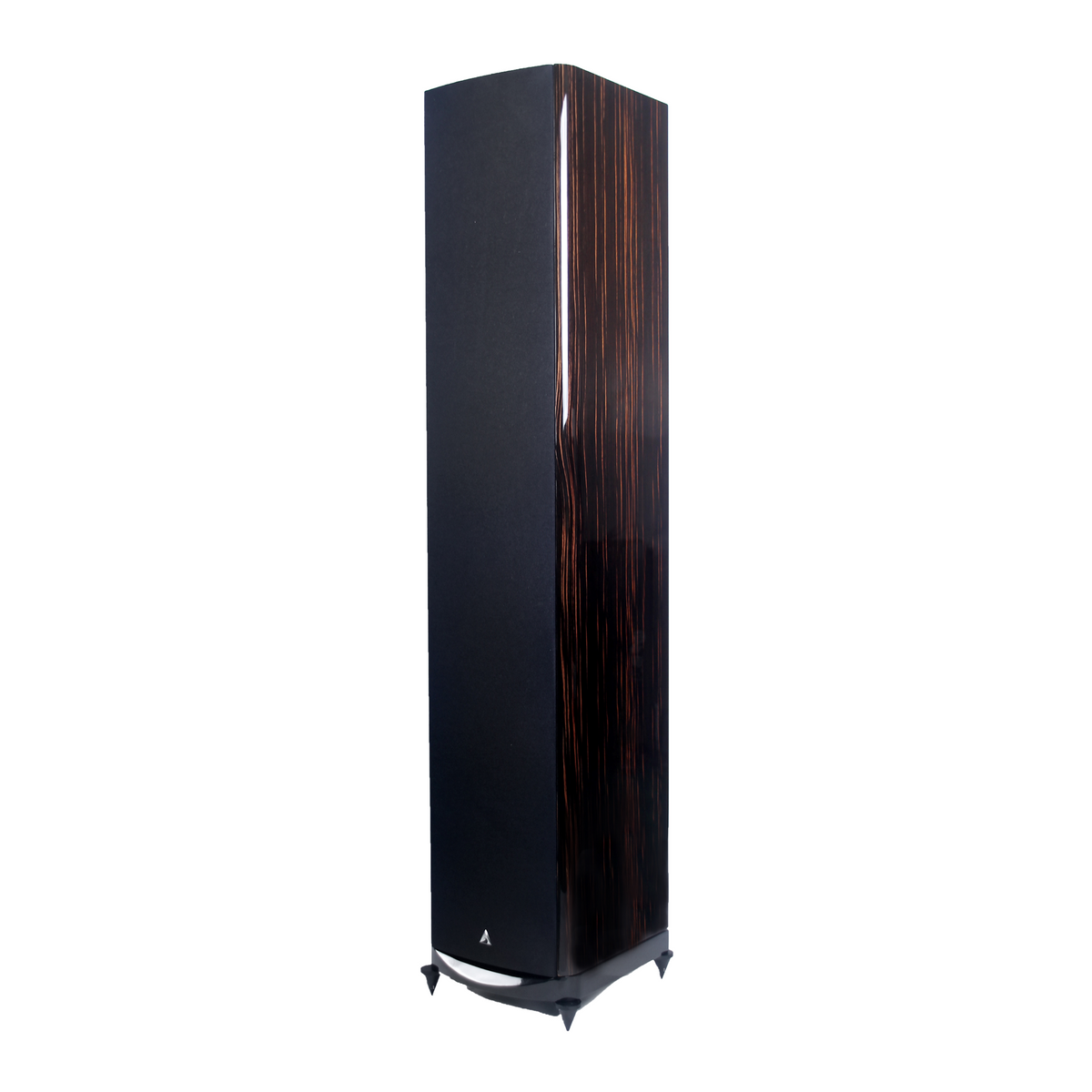

A three-way front speaker for home theater
8600eLR is a front-channel speaker in the 8600e family. It separates bass, midrange, and treble duties within the cabinet and pairs with the 8600eC center channel.

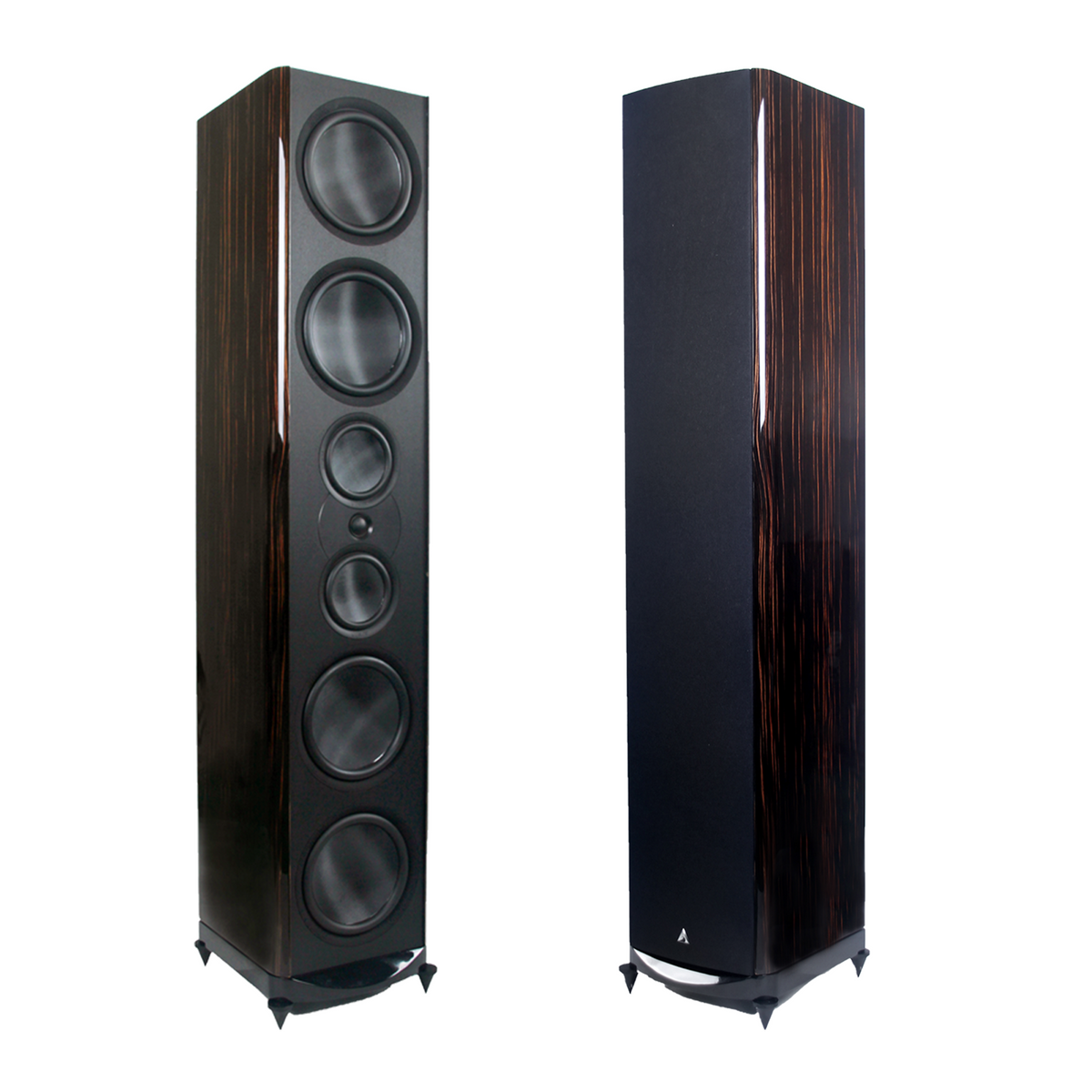

Plan the left and right positions around the screen and primary seats. The matching system components and a dedicated subwoofer form the starting point for a multichannel installation.

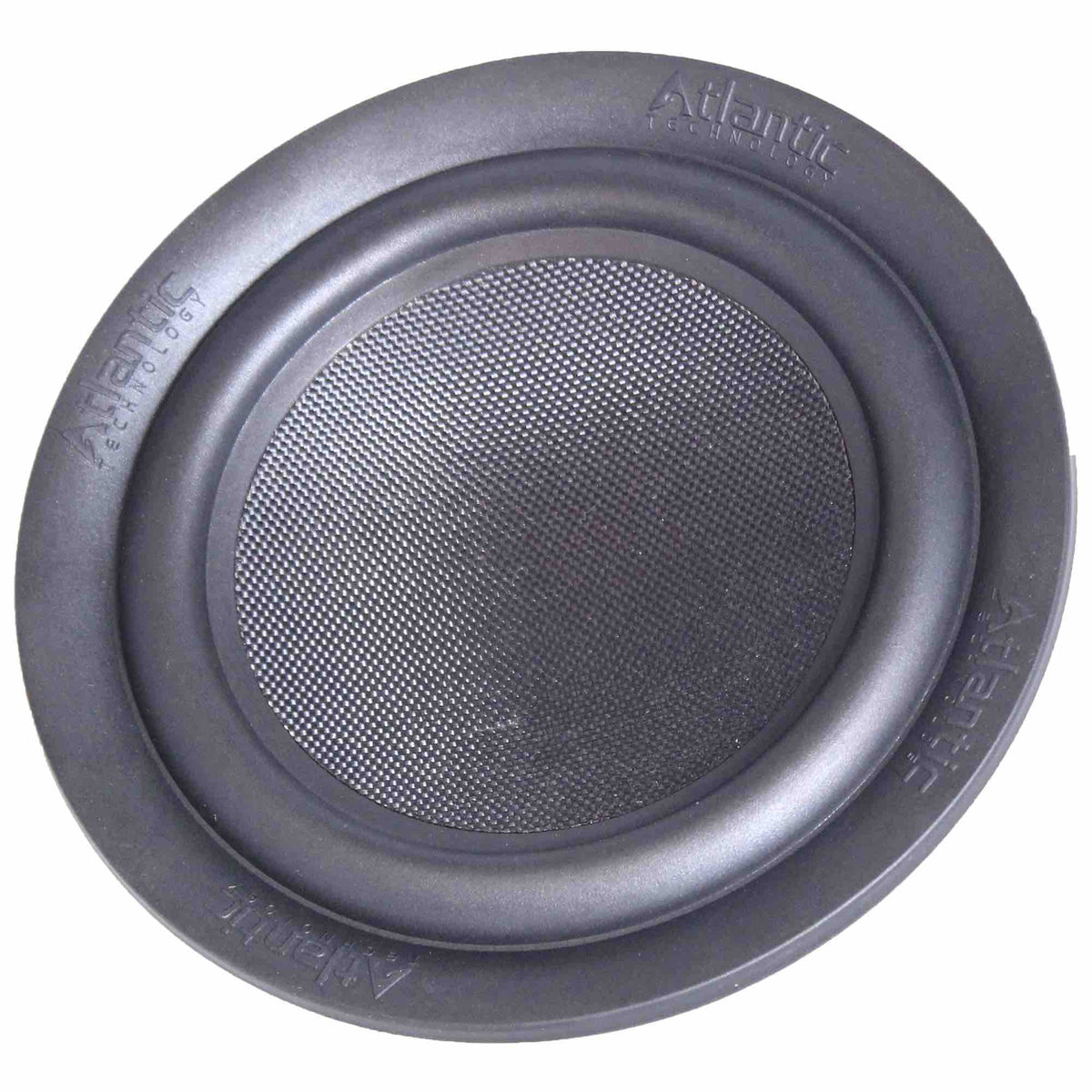

| Woofer | (4) 8″ Glass Fiber |
|---|---|

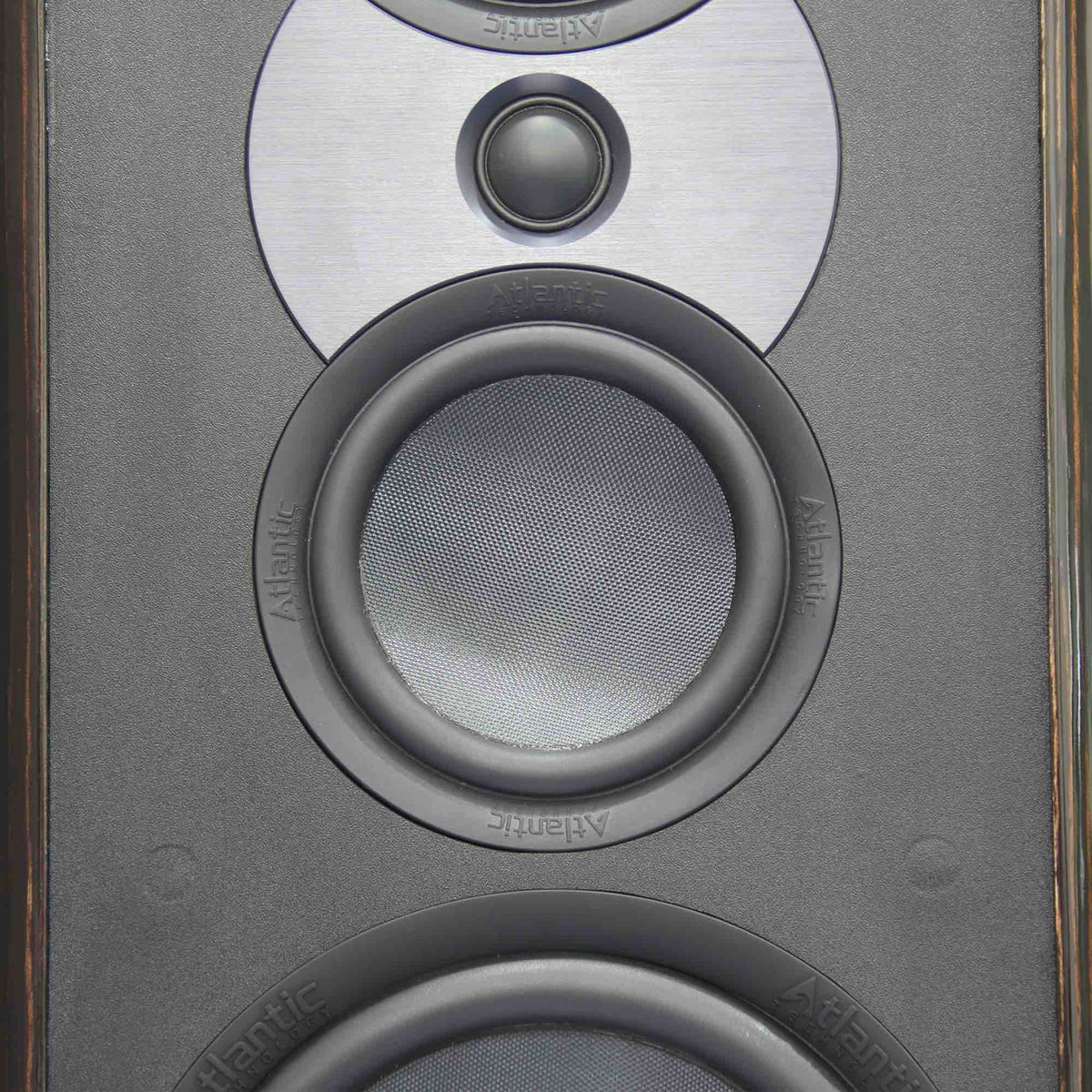

| Midrange | (2) 5.25″ Glass Fiber |
| Tweeter | (1) 1″ Aluminum-Magnesium |
| Frequency Response (± 3dB) | 42Hz – 25kHz |
| Frequency Response (± 6dB) | 35Hz – 25kHz |
| Nominal Impedance | 6Ω |
| Crossover Frequency | 450Hz, 3kHz |
| Crossover Type | Computer designed Butterworth 4th order asymmetrical time aligned Linkwitz-Riley |
| Sensitivity | 91dB |
| Recommended Amplifier Power | 25 – 300 Watts RMS |
| Dimensions w/ grilles(W x H x D) | 10.9 x 51.7 x 11.4in (278 x 1314 x 291mm) |
| Weight (ea) | 93.3lbs; 42.3kg |
| Type | Sealed-box, 3-way |
| Frequency Response | 50Hz – 25kHz ±2dB |
