An Azure speaker above the room

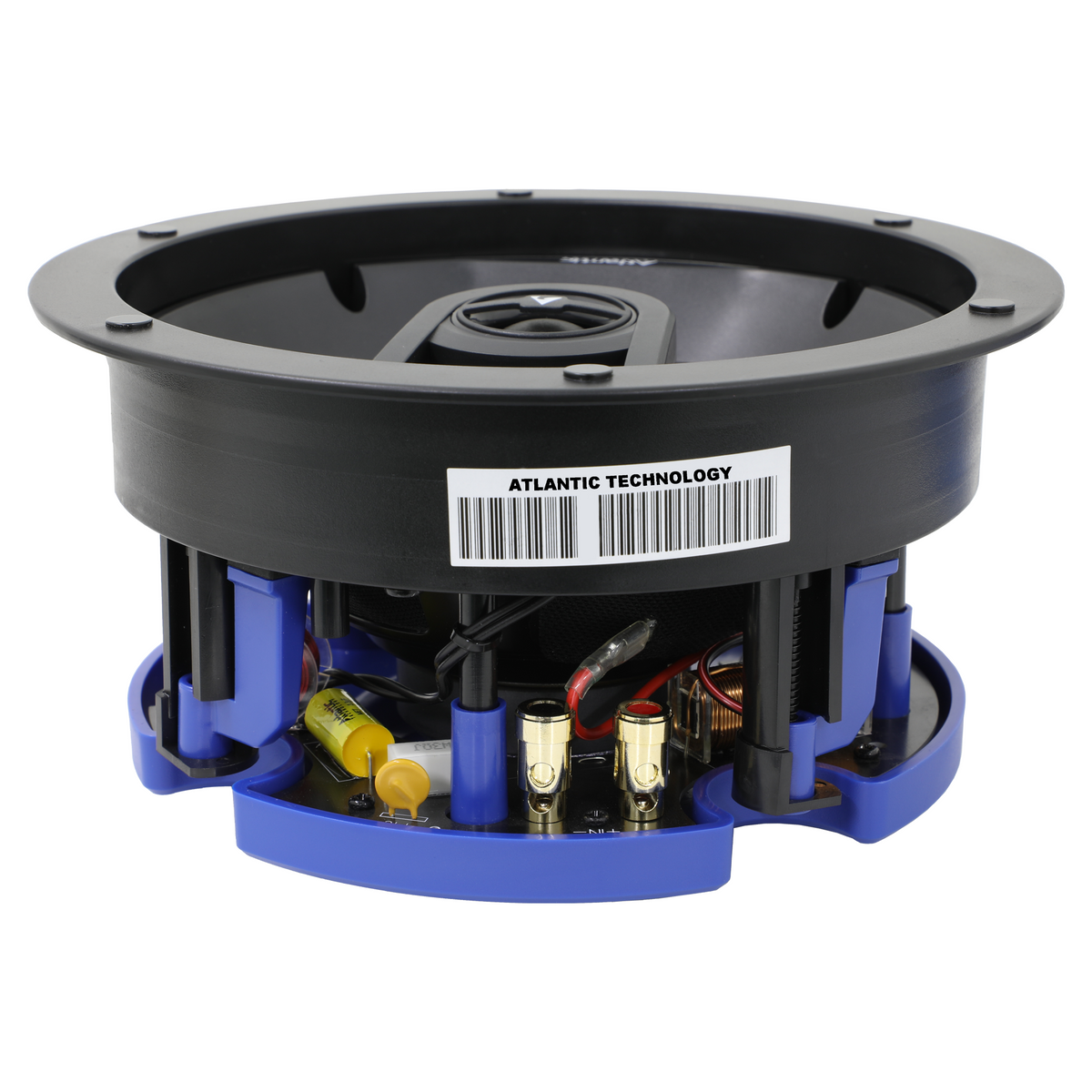

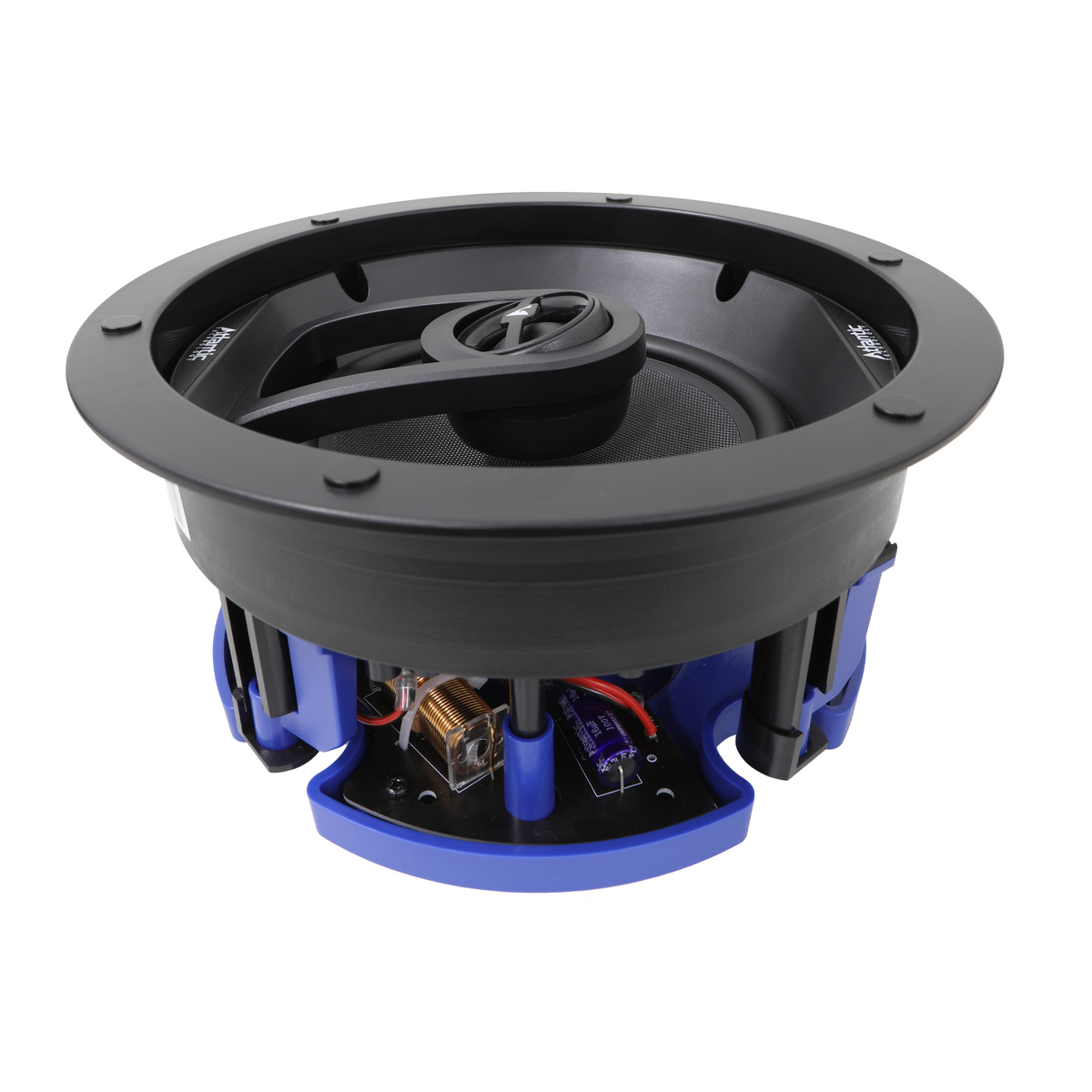

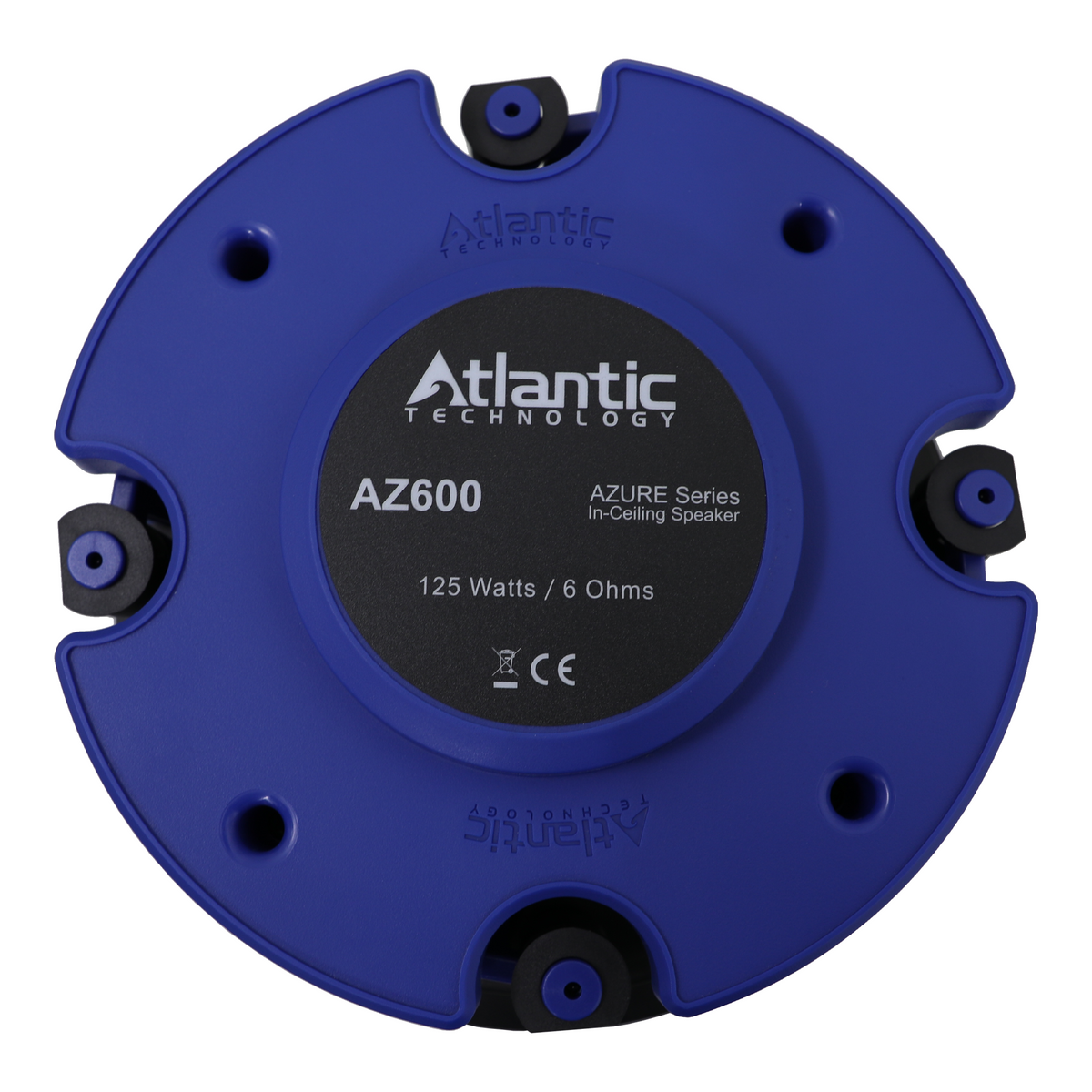

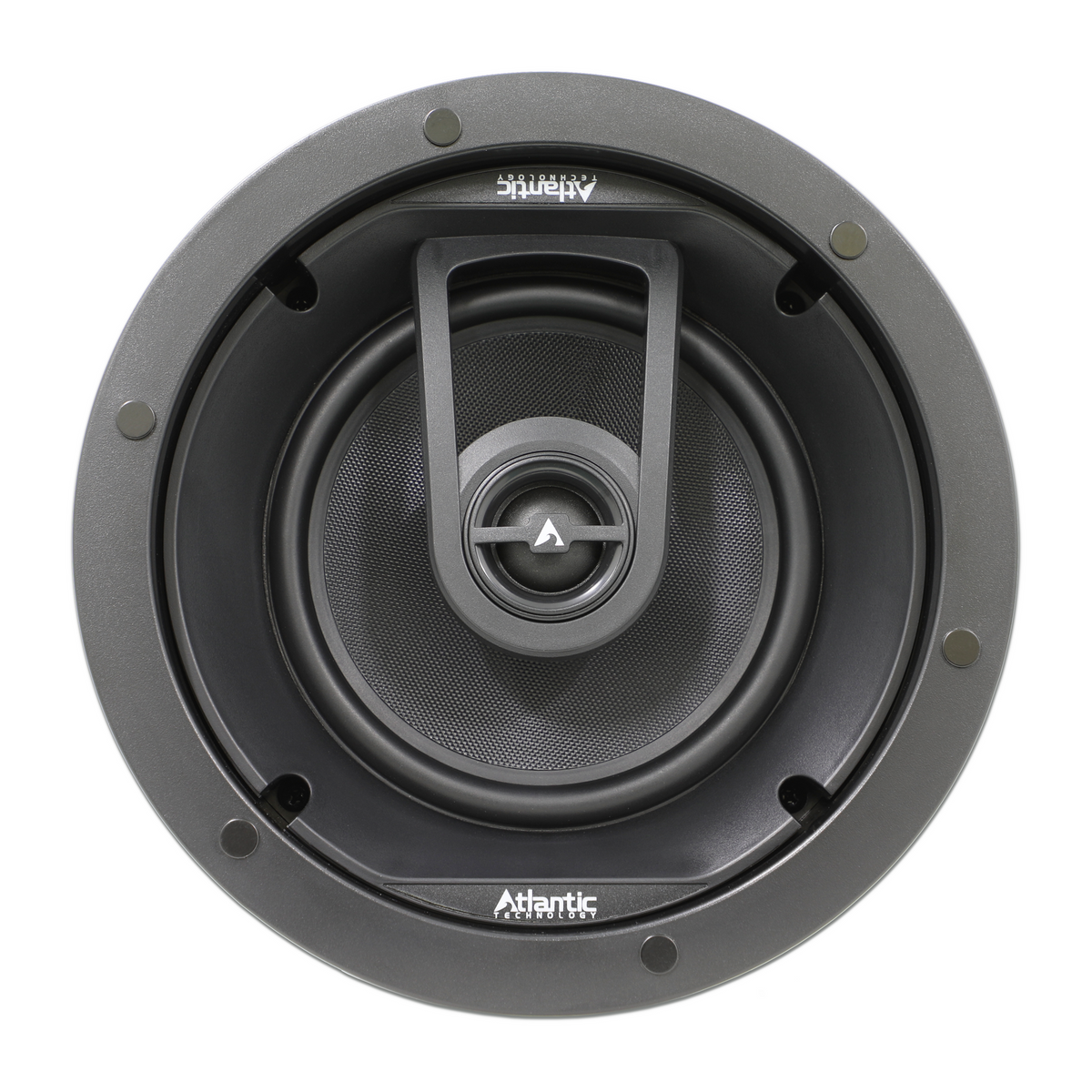

AZ600 is an in-ceiling speaker from the Azure family. A fiberglass-cone woofer and silk-dome tweeter sit behind a thin-bezel grille for home theater or whole-house audio installations.
The ceiling location and available cavity space determine how the speaker fits the room. Check the mounting requirements and any optional installation accessories before work begins.
| Woofer | Woofer 6 1/2 ” Humidity-resistant low distortion lightweight fiberglass cone, 1" voice coil, vented pole piece, butyl rubber surround |
|---|---|
| Tweeter (LRT = Low Resonance Tweeter) | Tweeter (LRT = Proprietary Low Resonance Tweeter) 1″ LRT™ Coated silk dome tweeter wide dispersion 30° orbital pivoting, ferrofluid cooled Neodymium magnet |
| Frequency Response | 48 – 22kHz, +/-3dB |
| Sensitivity | 87dB |
| Impedance | 6Ω |
| Recommended Amplifier Power | 10-125 Watts RMS |

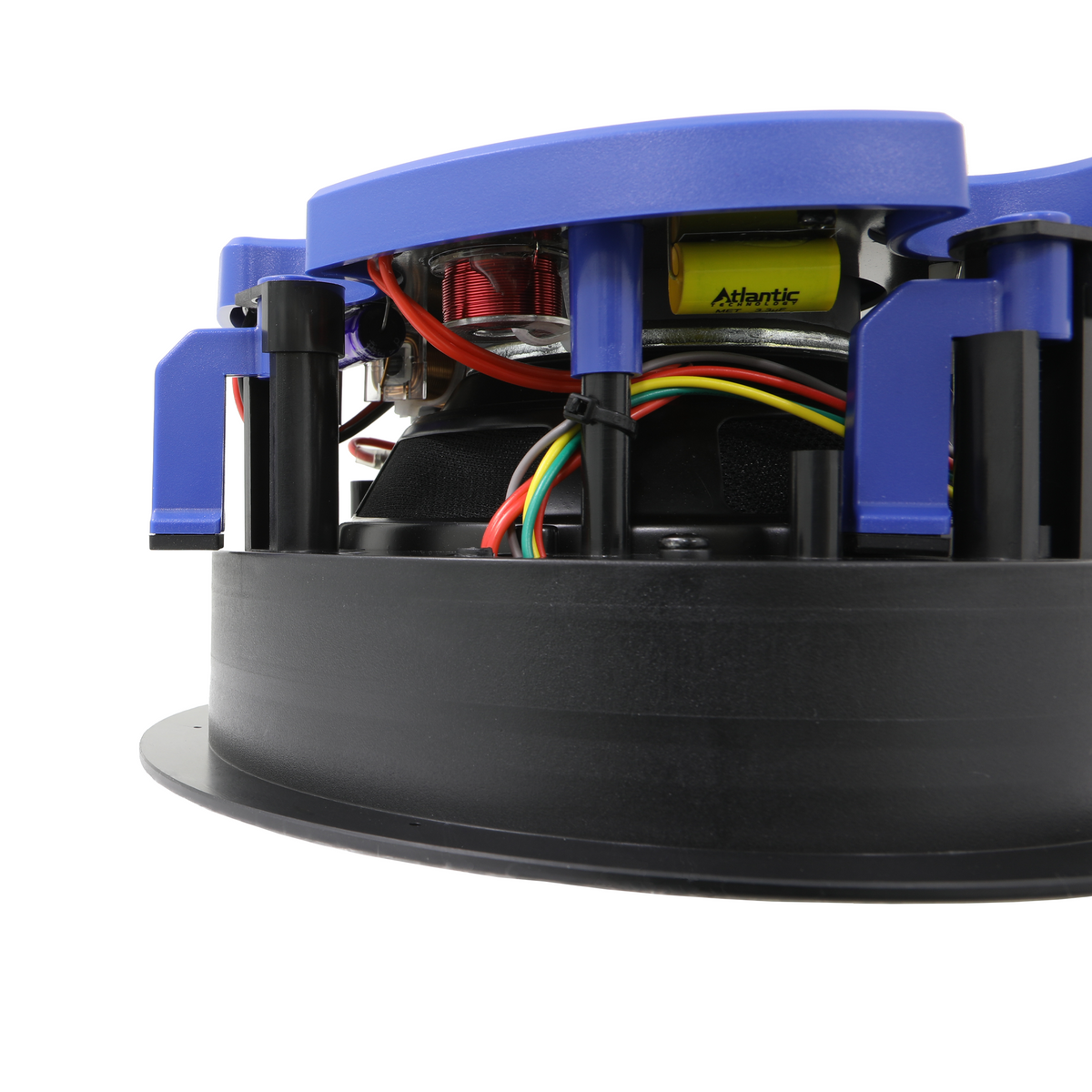

| Crossover | Crossover 3 kHz, 12 db/octave, polypropylene capacitors, air core inductors, resettable polyswitch protection circuit |
| Cut-Out Size | 8" (202mm) |
| Depth | 4 13/16" (122.24mm) |
| Net weight | 3.6 lbs |
| Dimensions | 9 1/4 ” Diameter (235mm) |
| New Construction Kit (optional) | IC-NC-TLC-6 |
| In-ceiling back box (optional) | IC-BOX-6/8 |
| Square Grills (optional) | SQ-GRILLS-6 (9 3/8") |
| Required Ceiling Thickness | 0.5 – 1″ |
