Seven channels in one soundbar

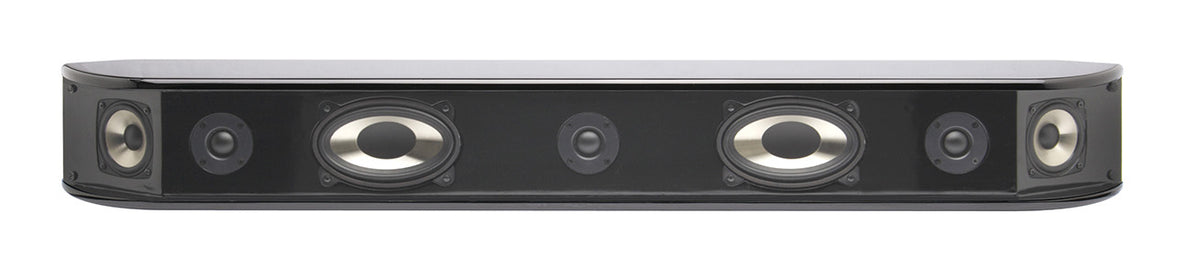

FS7.1 brings seven home theater speaker channels into one cabinet. Front and side-firing drivers handle the separate channels, with dual voice-coil drivers helping share the available cabinet space.

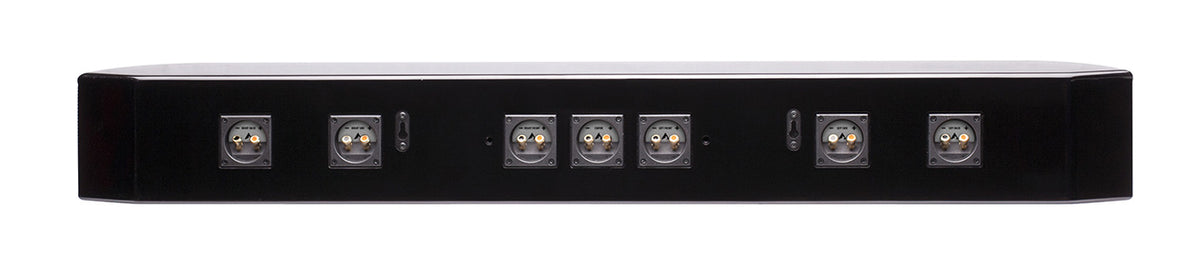

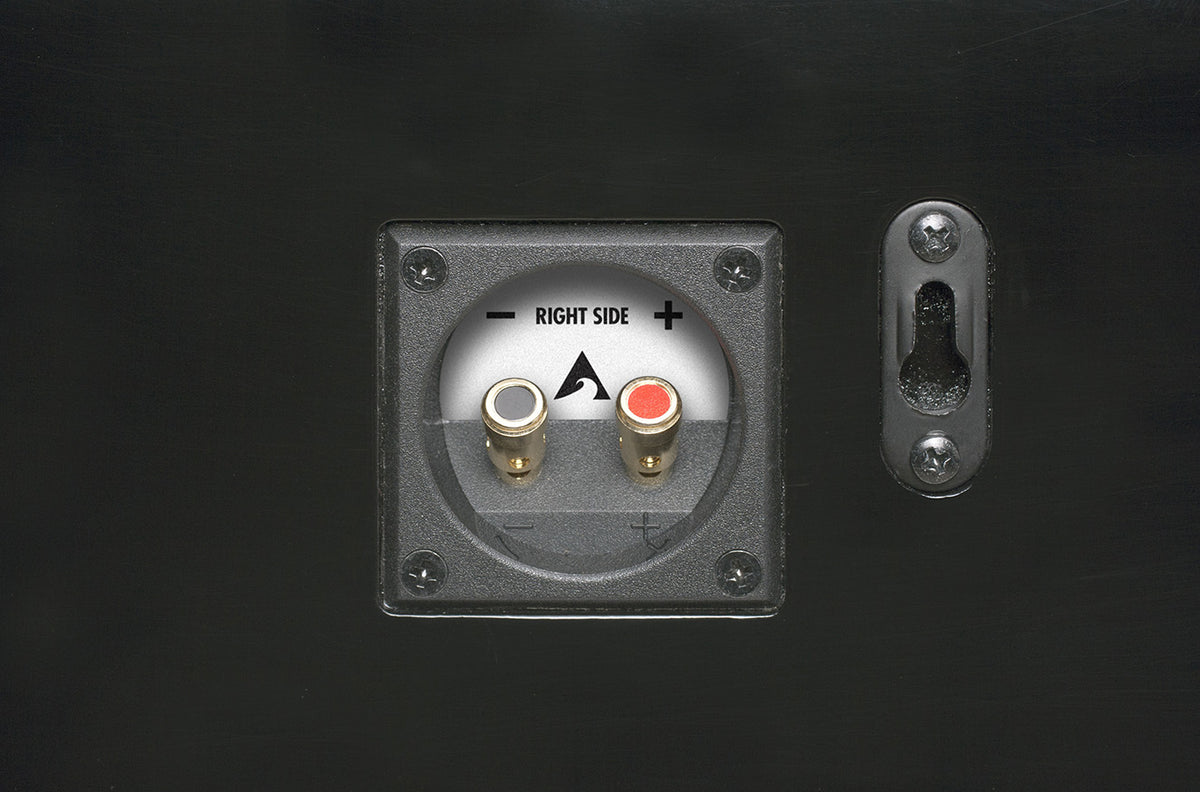

The side-firing drivers angle toward the listening area. Use the channel wiring diagram when connecting the soundbar to a surround receiver; the separate speaker channels still need their corresponding amplifier connections.
| Woofers | Two 4 × 6-inch dual-voice-coil LCR drivers |
|---|---|
| Tweeters | Three 1-inch soft domes |
| Surround drivers | Two 3.25-inch dual-voice-coil drivers |
| Frequency response | 75 Hz to 20 kHz (±3 dB) |
| Sensitivity | 89 dB |
| Impedance | 8 ohms |
| Recommended amplifier power | 10 to 125 W RMS |
| Dimensions | 43.5 × 5.5 × 5.25 inches (W × H × D, with grille) |
| Weight | 37 lb / 17 kg each |
