A ceiling speaker with directional adjustment

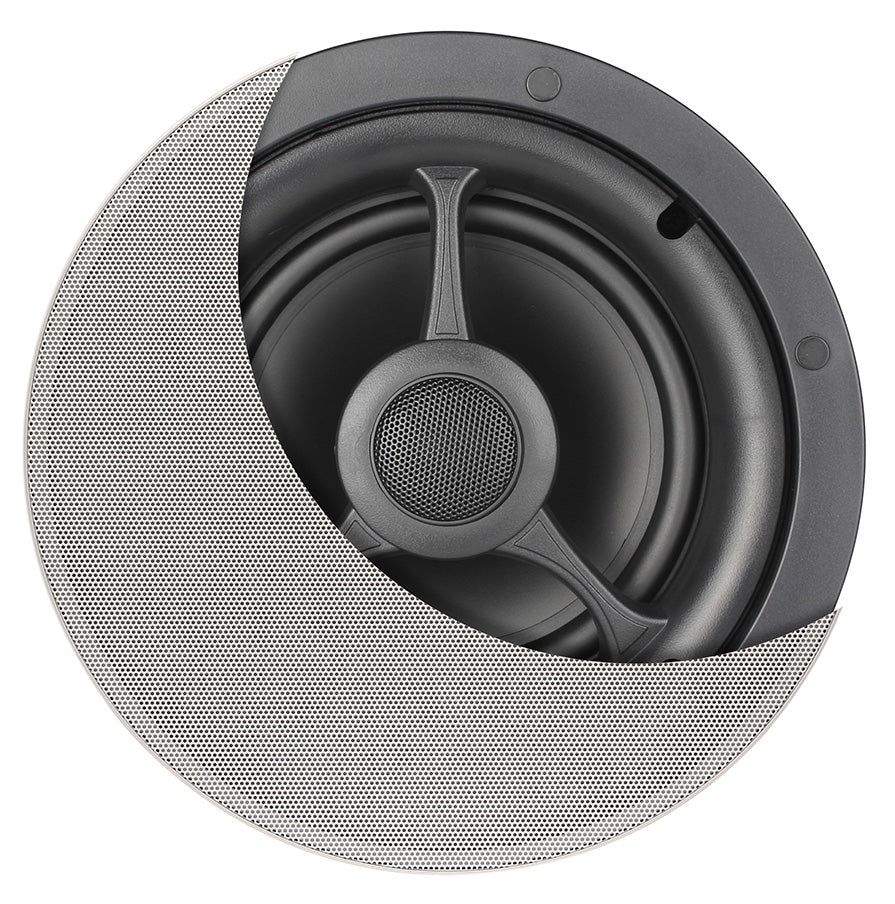

IC-6.1 combines a polypropylene woofer with a pivoting soft-dome tweeter. Its magnetic grille and thin bezel leave a simple outline on the ceiling.
The tweeter can be aimed toward the area where people listen. Check the ceiling depth and cutout dimensions first, particularly where joists, insulation, or other services constrain placement.
| Woofer | 6 1/2": Polypropylene |
|---|---|
| Tweeter | 1" Pivoting Silk Dome |
| Frequency Response | 50 - 20kHz +/-3dB |
| Sensitivity | 88dB |
| Recommended Amplifier Power | 10-100 Watts RMS |
| Impedance | 6Ω |
| Cut-Out Size | 8" (202mm) |
| Mounting Depth | 4.5" (115mm) |
| Weight (single speaker) | 3.5 lbs (1.59 kg) |
| New Construction Kit (optional) | IC-NC-TLC-6 |
| In-ceiling back box (optional) | IC-BOX-6/8 |

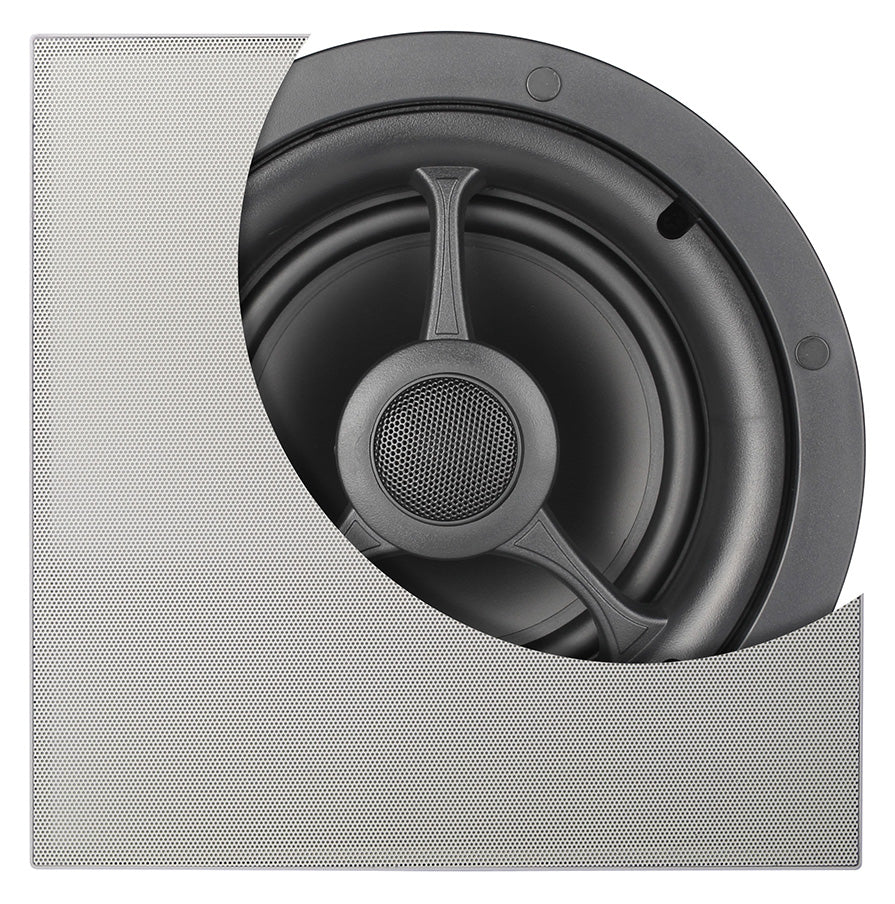

| Square Grills (optional) | SQ-GRILLS-6 (9 3/8") |
