For ceilings with limited depth

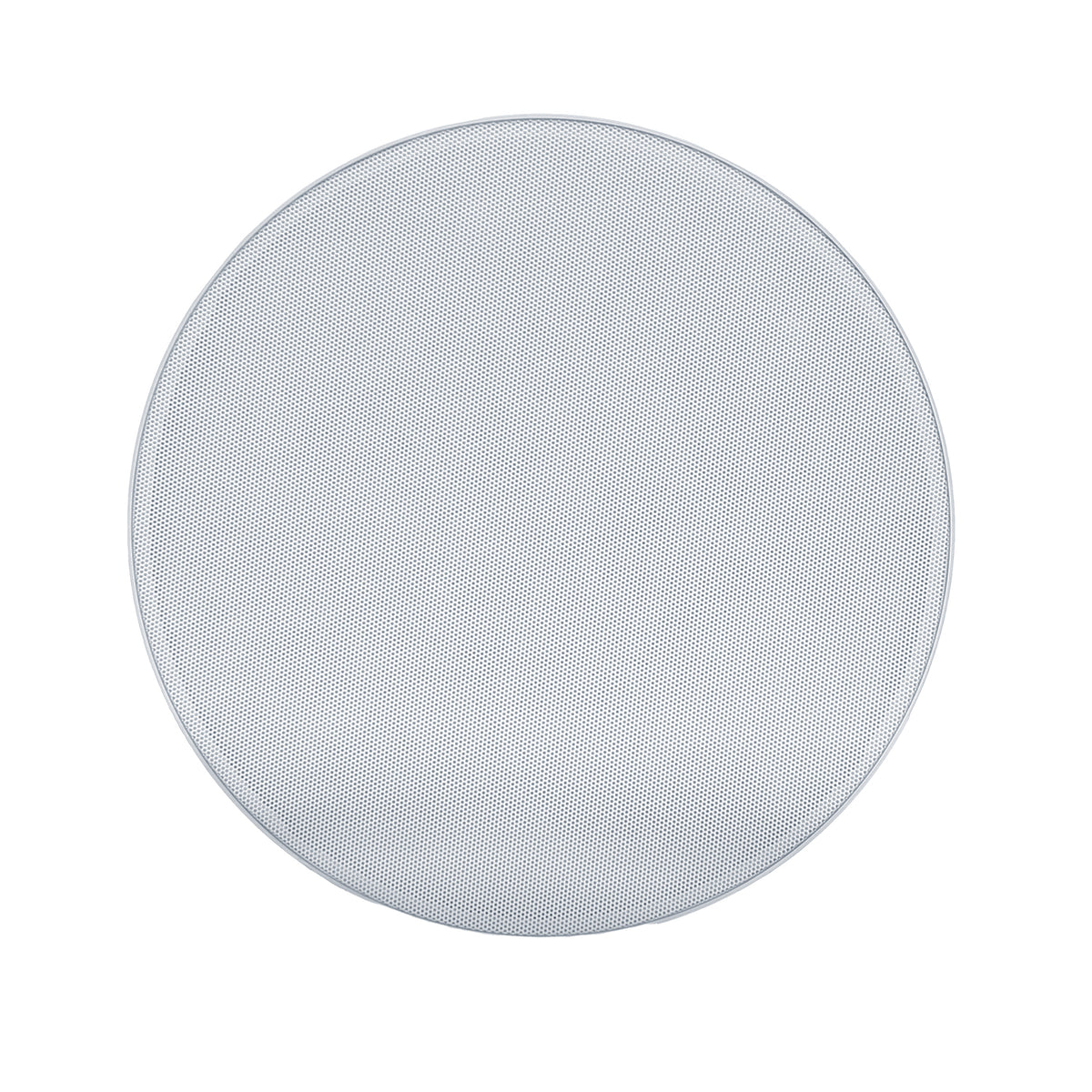

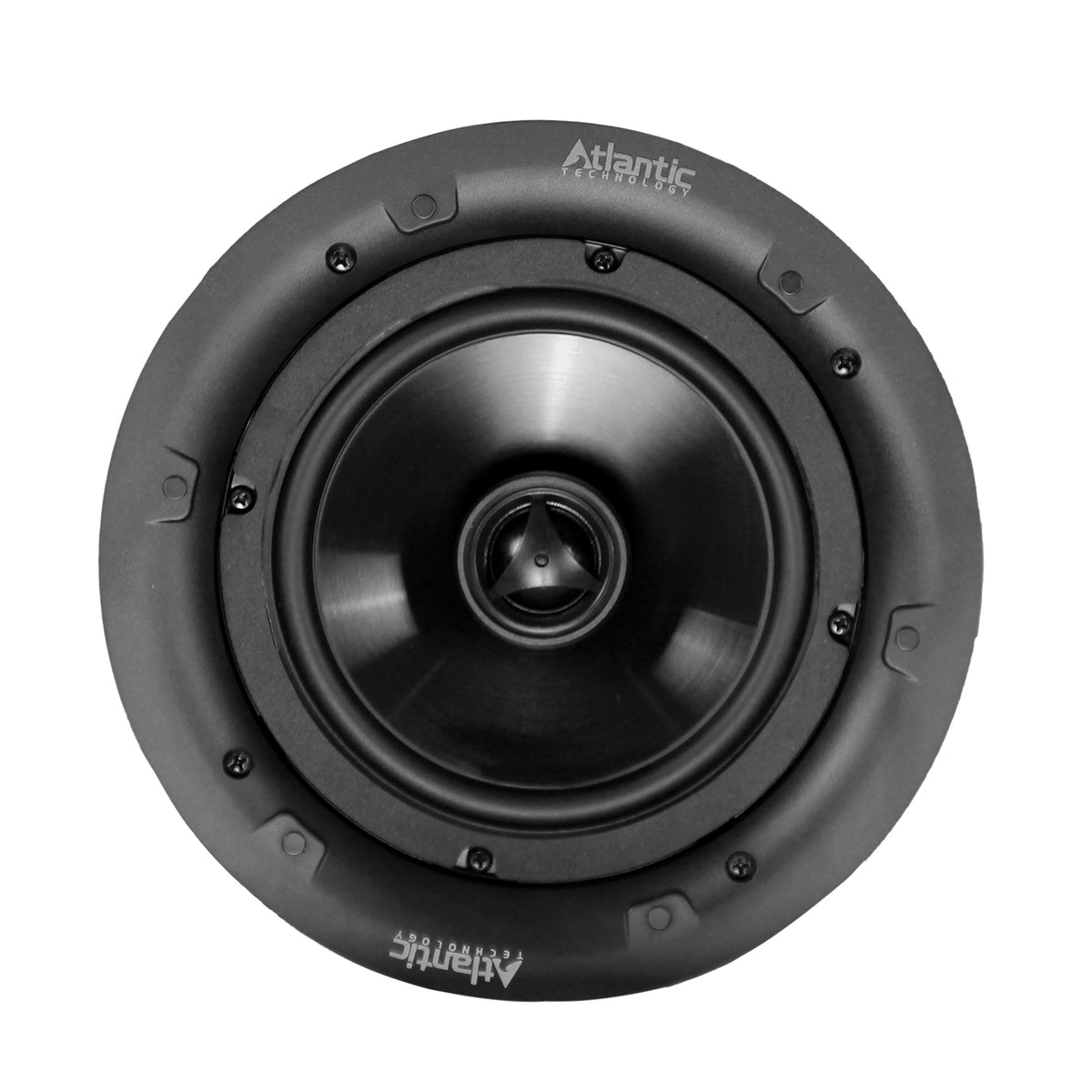

IC-6SLM is an in-ceiling speaker built around a shallow mounting profile. A thin bezel and magnetic, paintable grille form the visible part of the installation.
It is intended for locations where the available depth rules out a deeper speaker. Measure the cavity and check the specified clearance rather than relying on the visible ceiling opening alone.
| Woofer | 6.5" PPM Cone, rubber surround, 1" voice coil, vented pole piece |
|---|---|
| Tweeter | 1" silk dome, wide dispersion, 30 degrees of tilt, ferro-fluid cooled, neodymium magnet |
| Crossover | 3.0 kHz, 12db per octave crossover, PP capacitors, tweeter protection circuit |
| Frequency Response | 50Hz-22Lhz |
| Sensitivity | 92dB |
| Recommended Amplifier Power | 10-100 Watts RMS |
| Impedance | 6Ω |
| Cut-Out Size | 8" (202mm) |

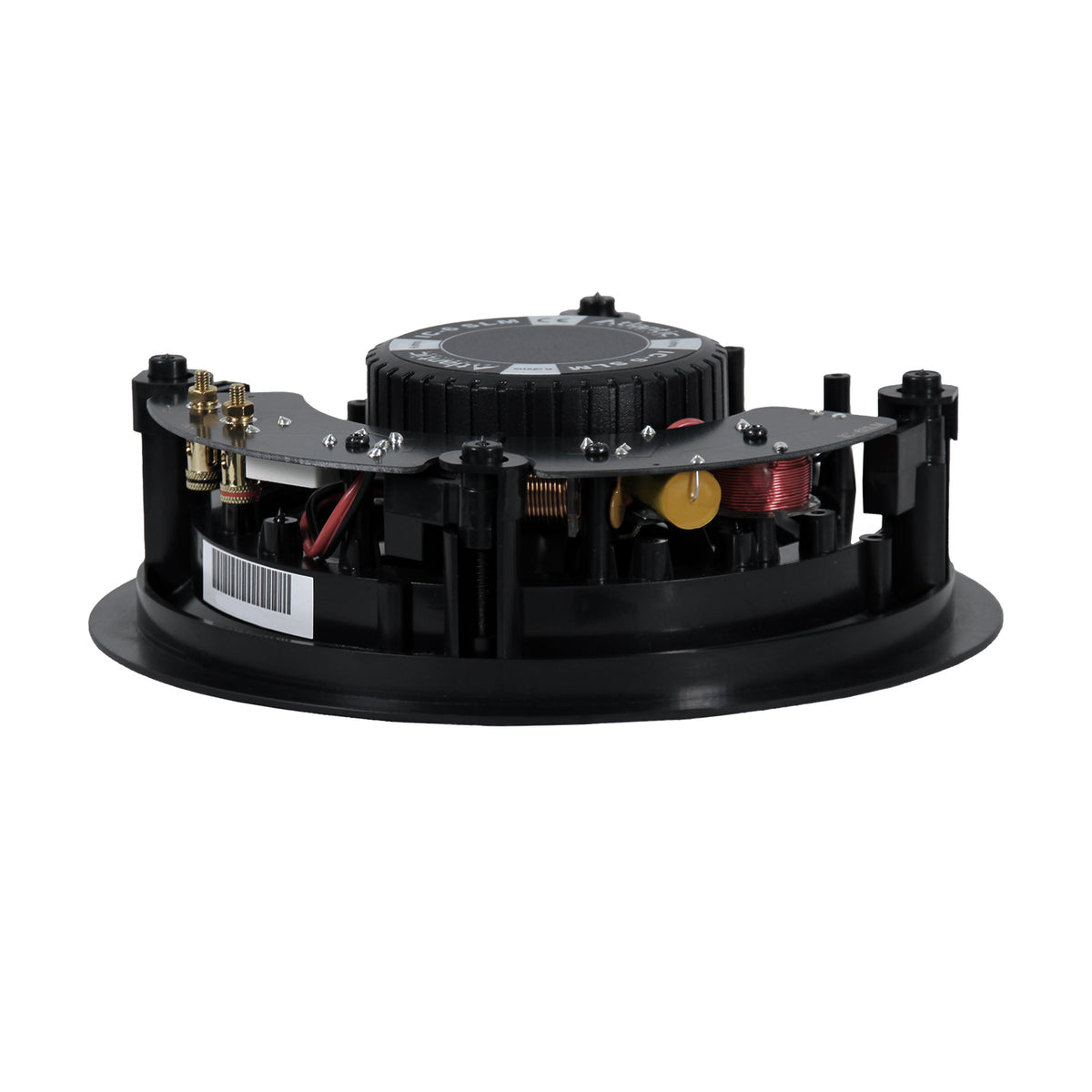

| Mounting Depth | 2 3/4″ (70mm) |
| Weight (single speaker) | 2.6 lbs, (1.2kg) |
| New Construction Kit (optional) | IC-NC-TLC-6 |
| In-ceiling back box (optional) | IC-BOX-6/8 |
| Square Grills (optional) | SQ-GRILLS-6 (9 3/8") |
| Required Ceiling Thickness | 0.5 – 1″ |
