Ceiling speakers with aimable tweeters

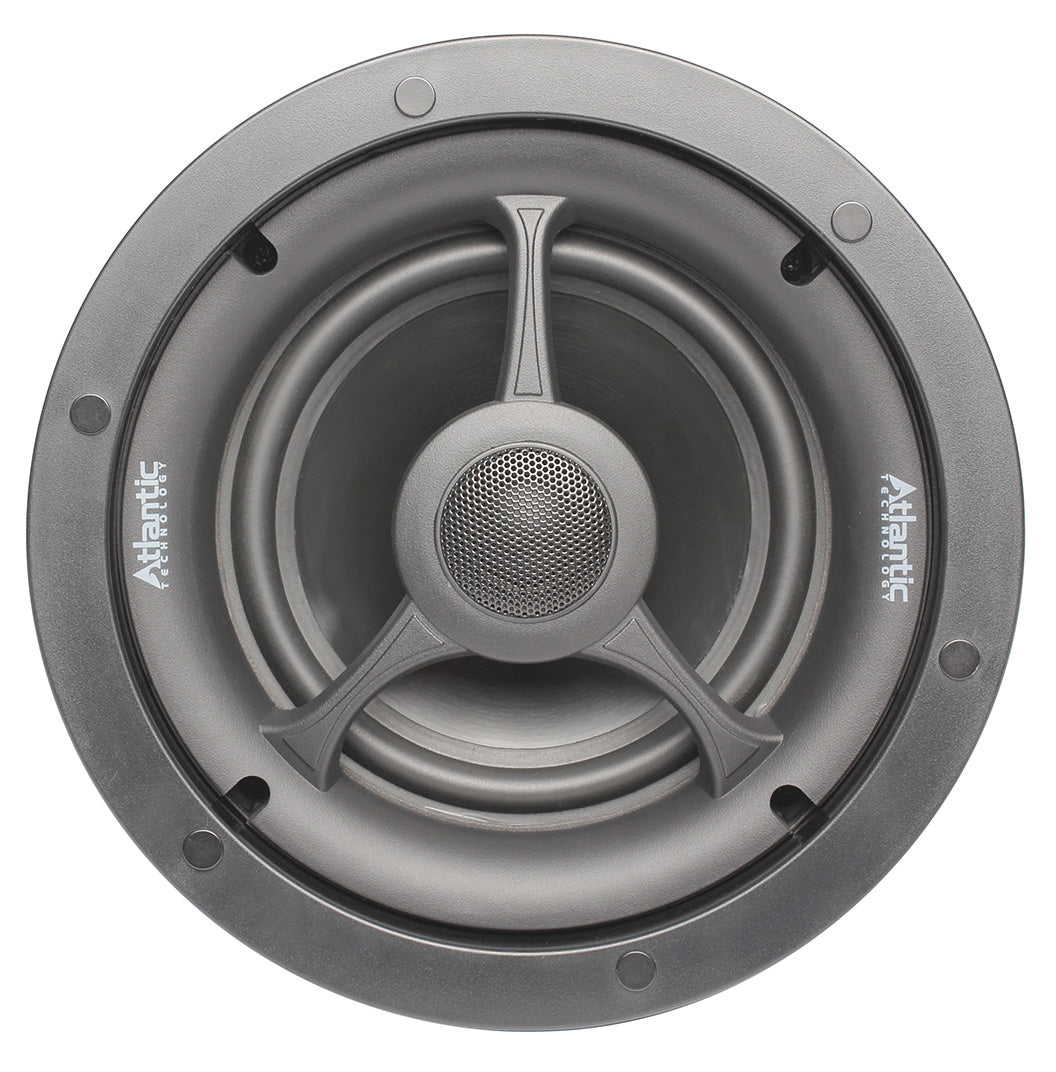

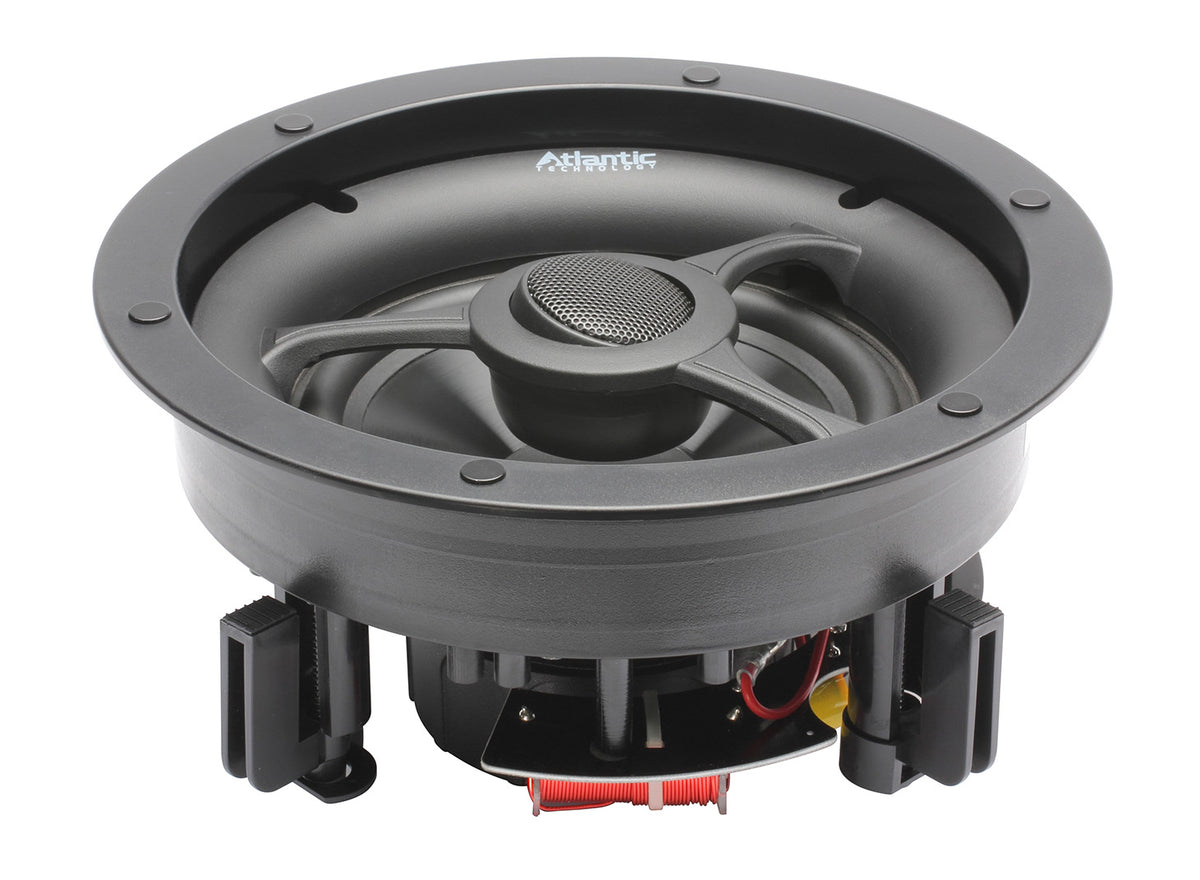

IC-6.2 and IC-8.2 are two-way ceiling speakers with pivoting soft-dome tweeters. The tweeter can be directed toward the listening area after the speaker's position has been chosen.
Their woofers use carbon-loaded mica/poly cones. The two models provide different cabinet and cutout sizes, so check the selected model against the available ceiling space.
| Woofer | IC-6.2: 6.5" PPM Cone, rubber surround, 1" voice coil, vented pole piece IC-8.2: 8" PPM Cone, rubber surround, 1.25" voice coil, vented pole piece |
|---|---|
| Tweeter | IC-6.2: 1" silk dome, wide dispersion, 30 degrees of tilt, ferro-fluid cooled, neodymium magnet IC-8.2: 1" silk dome, wide dispersion, 30 degrees of tilt, ferro-fluid cooled, neodymium magnet |

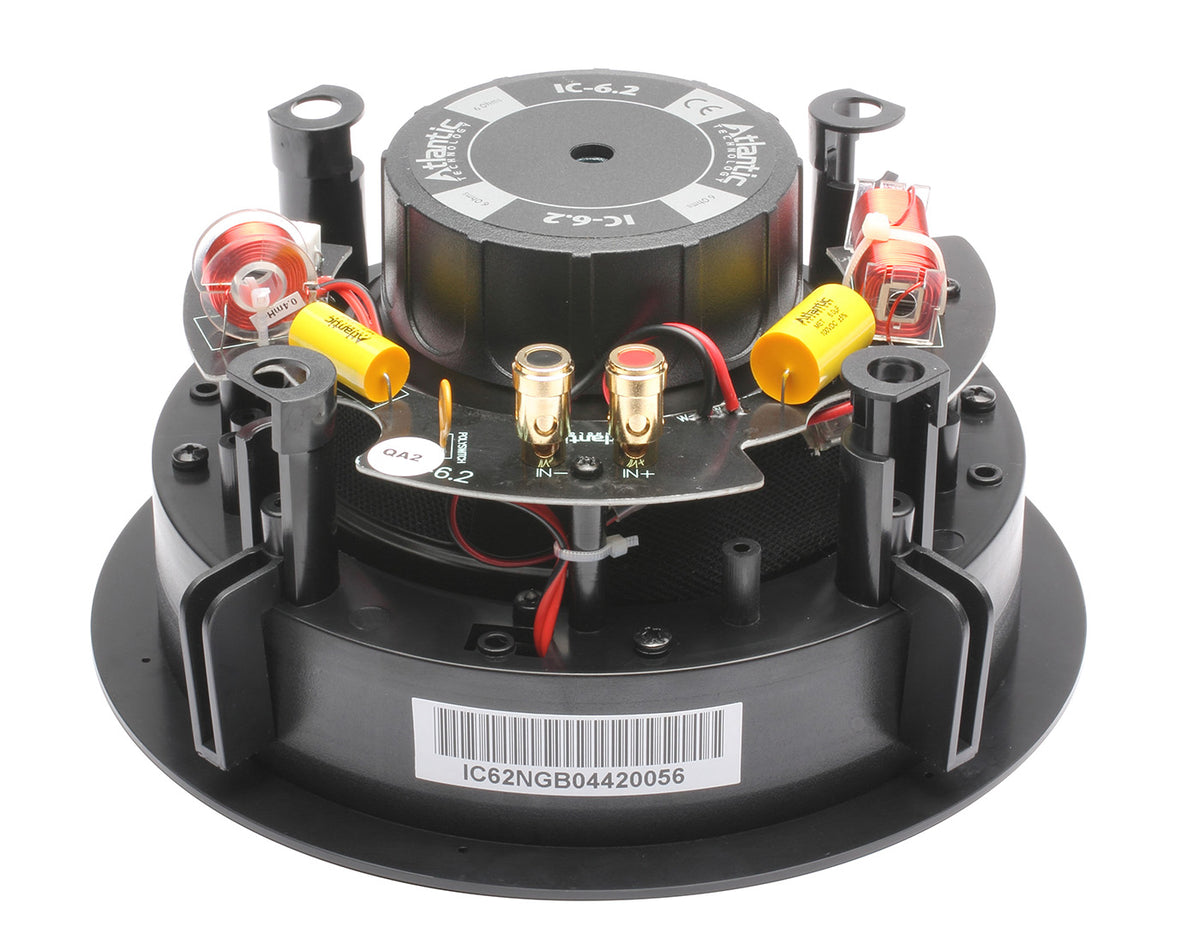

| Crossover | IC-6.2: 3.0 kHz, 12db per octave crossover, PP capacitors, tweeter protection circuit IC-8.2: 2.7 kHz, 12db per octave crossover, PP capacitors, tweeter protection circuit |
| Frequency Response | IC-6.2: 48Hz-22Lhz IC-8.2: 45Hz-22Lhz |
| Sensitivity | IC-6.2: 88dB IC-8.2: 89dB |
| Recommended Amplifier Power | IC-6.2: 10-125 Watts RMS IC-8.2: 10-150 Watts RMS |
| Impedance | IC-6.2: 6Ω IC-8.2: 6Ω |
| Cut-Out Size | IC-6.2: 8" (202mm) IC-8.2: 9 5 /8″ (244mm) |
| Mounting Depth | IC-6.2: 4 1/4" (10.80 cm) IC-8.2: 4 3/4" (12.07 cm) |
| Weight (single speaker) | IC-6.2: 3.5 lbs (1.59kg) IC-8.2: 5 lbs. (2.27 kg) |
| New Construction Kit (optional) | IC-6.2: IC-NC-TLC-6 IC-8.2: IC-NC-TLC-8 |
| In-ceiling back box (optional) | IC-6.2: IC-BOX-6/8 IC-8.2: IC-BOX-6/8 |
| Square Grills (optional) | IC-6.2: SQ-GRILLS-6 (9 3/8") IC-8.2: SQ-GRILLS-8 (11″) |
| Required Ceiling Thickness | IC-6.2: 0.5 – 1″ IC-8.2: 0.5 – 1″ |
