An in-wall option for the front stage

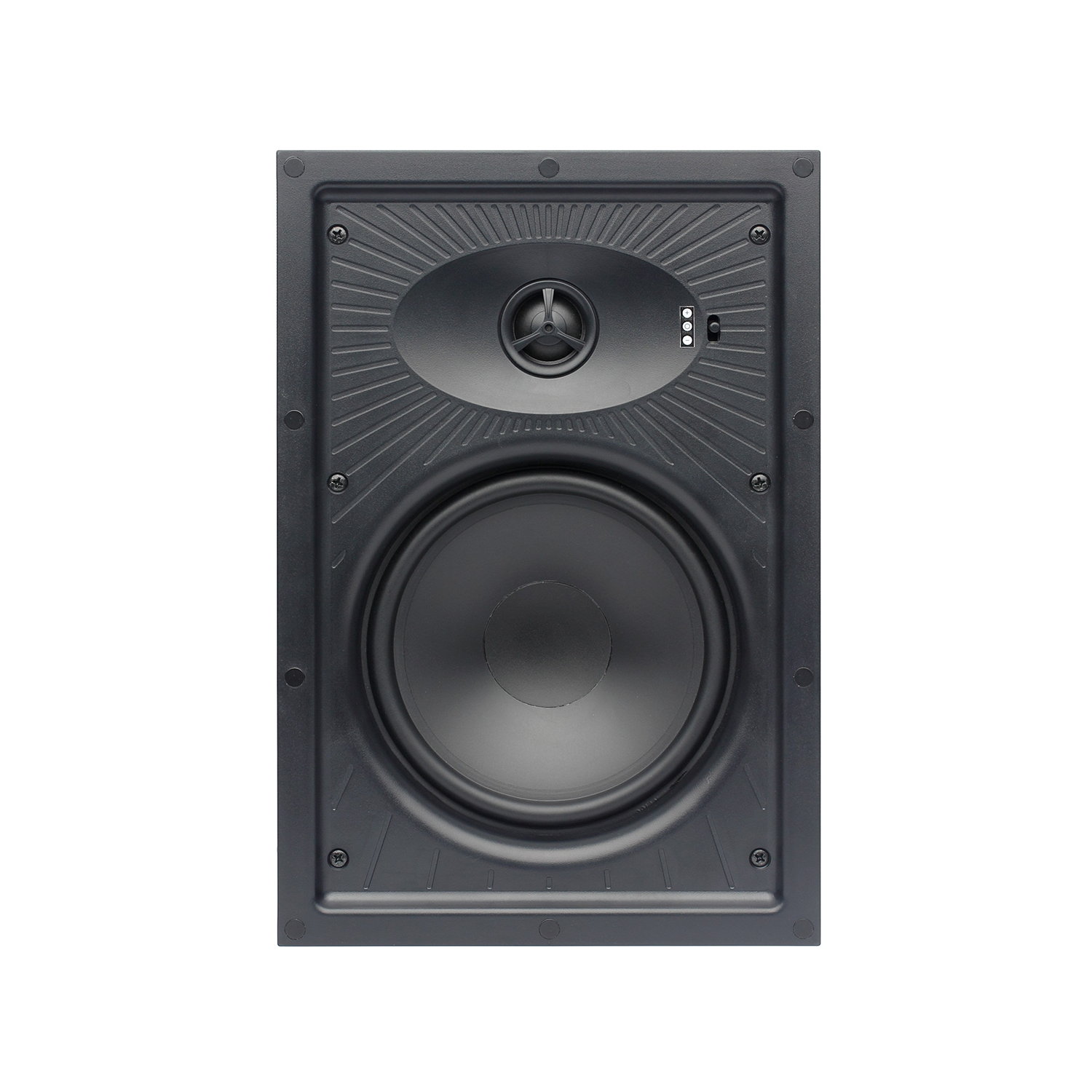

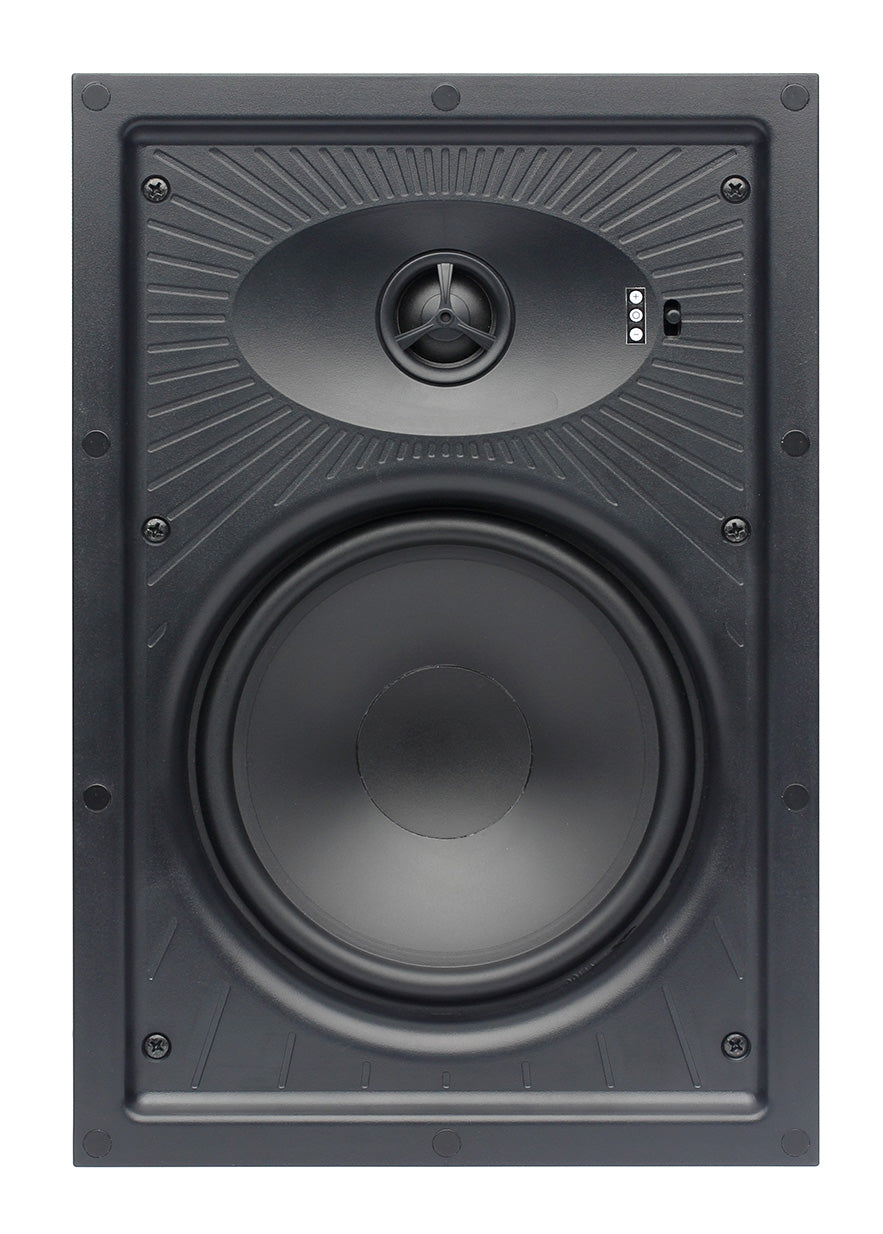

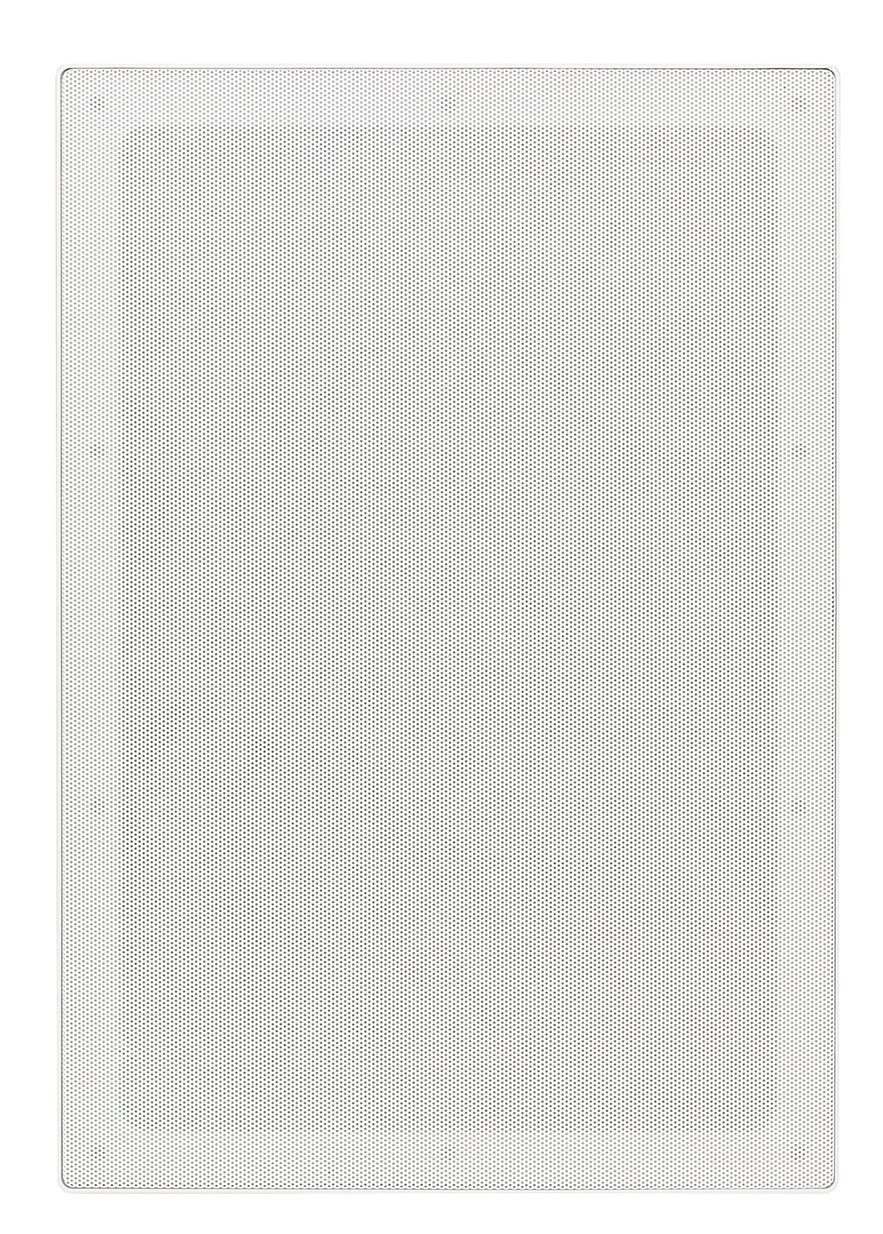

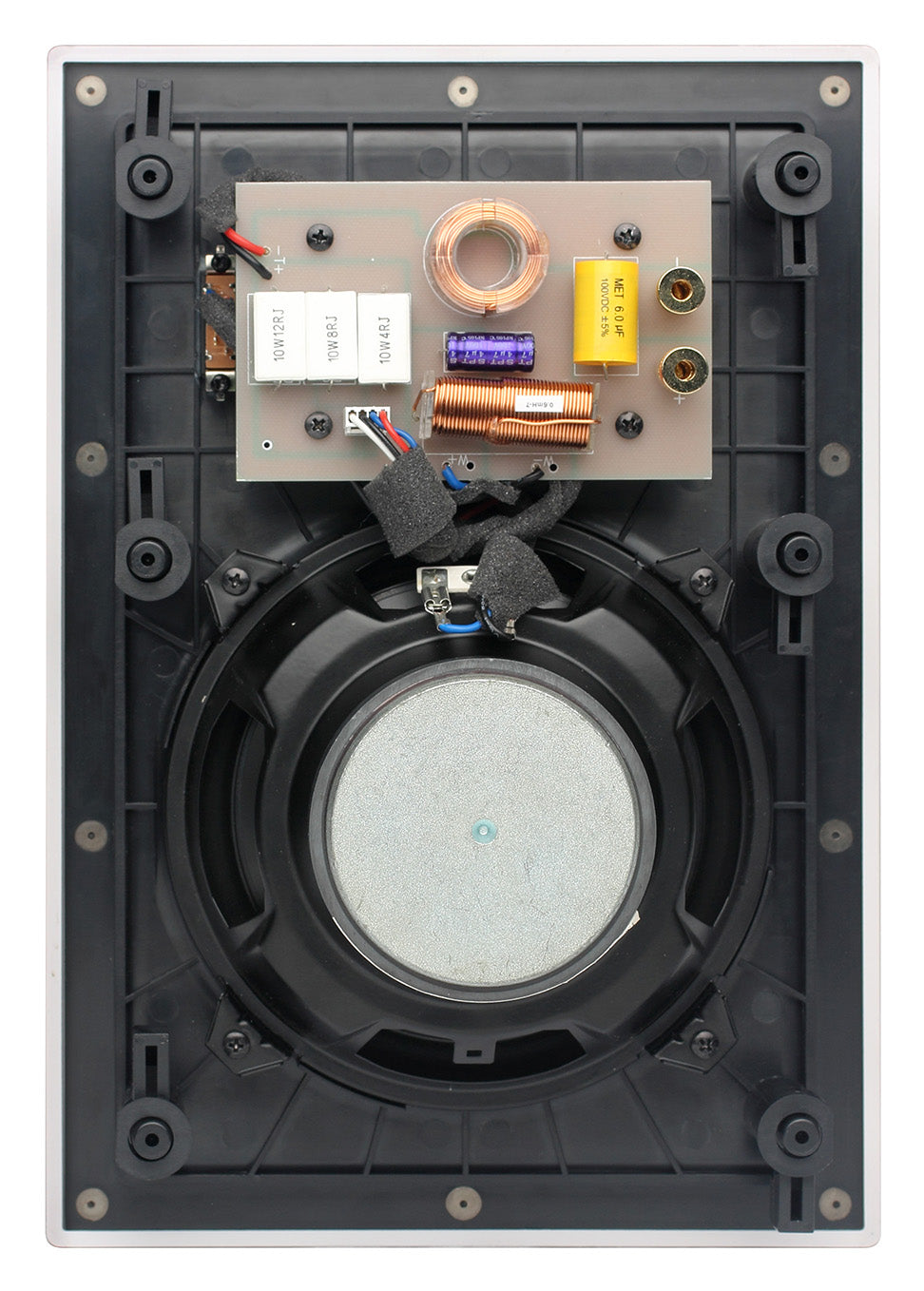

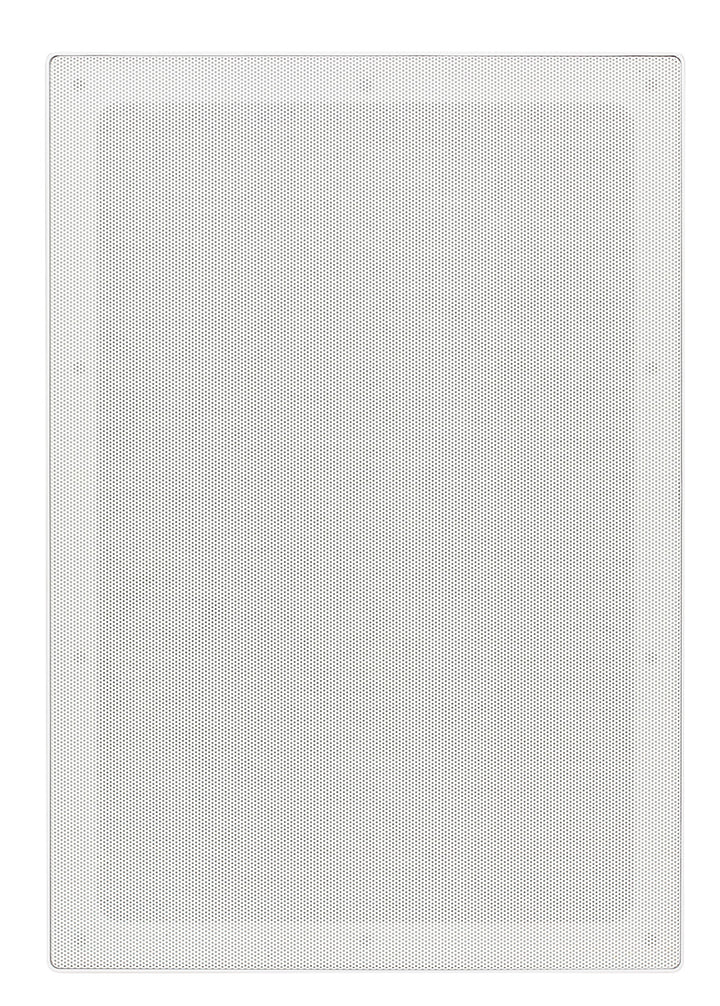

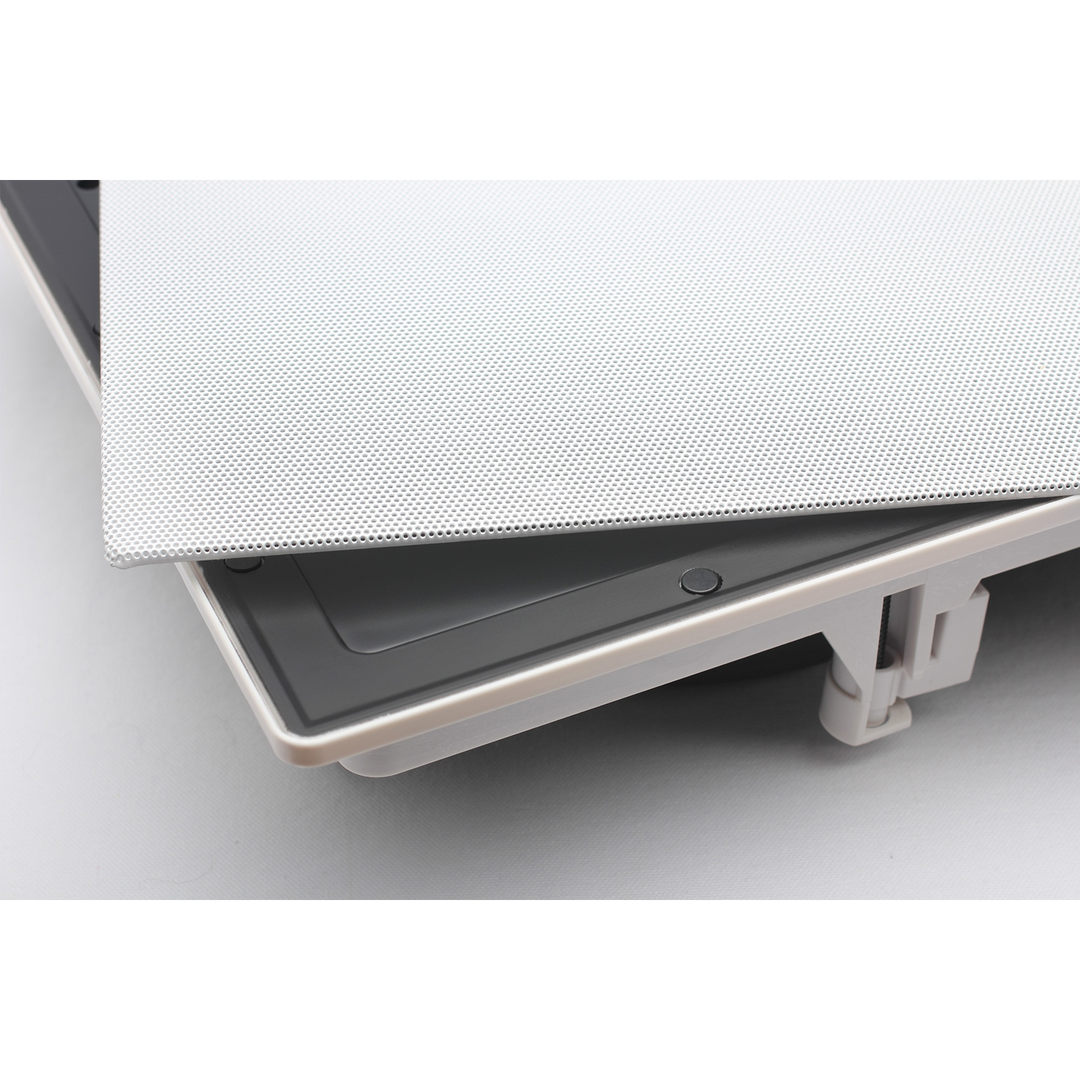

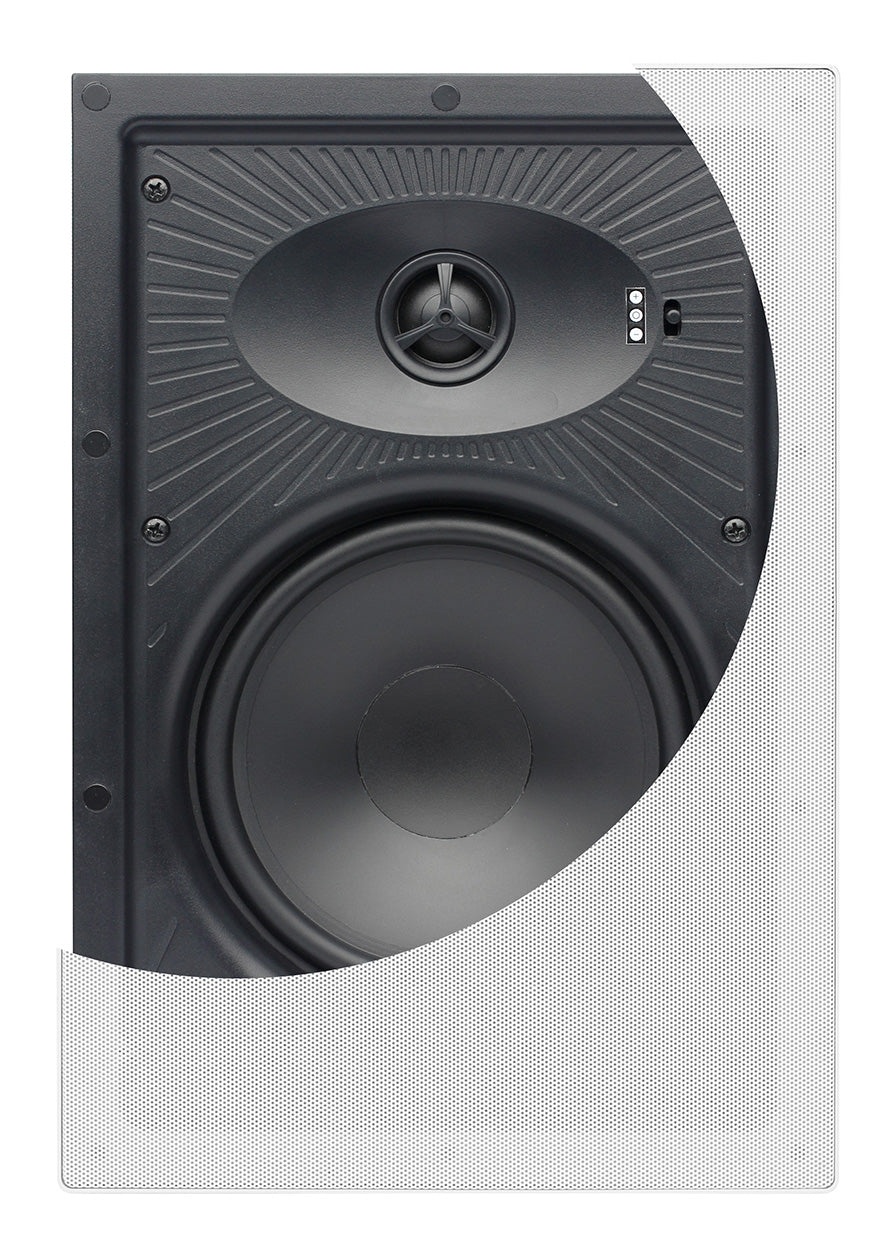

The Signature Series IW-105LCR is an in-wall speaker for home audio and theater installations. It provides a way to place the front channels in the wall when room furnishings leave little space for cabinets.
Plan cable access, mounting depth, and the relationship to the display before installation. The product manual is the reference for the wall opening and connection details.
| Type | 2-Way |
|---|---|
| Optimum Wall Volume | (2) 6 1/2˝ Mineral Damped Polymer |
| Woofers | (1) 6 1/2˝ Mineral Damped Polymer |
| Tweeter | (1) 1˝ dome |
| Frequency Response | 56 - 20kHz +/- 3dB |
| Sensitivity | 87dB |
| Impedance | 6 Ohms |
| Crossover Frequency | 3200Hz, 1st order |
| Amplifier Power | 25-150 Watts |
| Dimensions (Grille Frame) | 8 5/8˝ x 12 5/8˝ (220mm x 320mm) |
| Cutout Dimensions | 7 1/4˝ x 11 1/4˝ (185mm x 285mm) |
| Net Weight | 4.6 lbs; 2.1kg each |
| New Construction Kit | IN-NC-105LCR |
