An adjustable array behind the grille

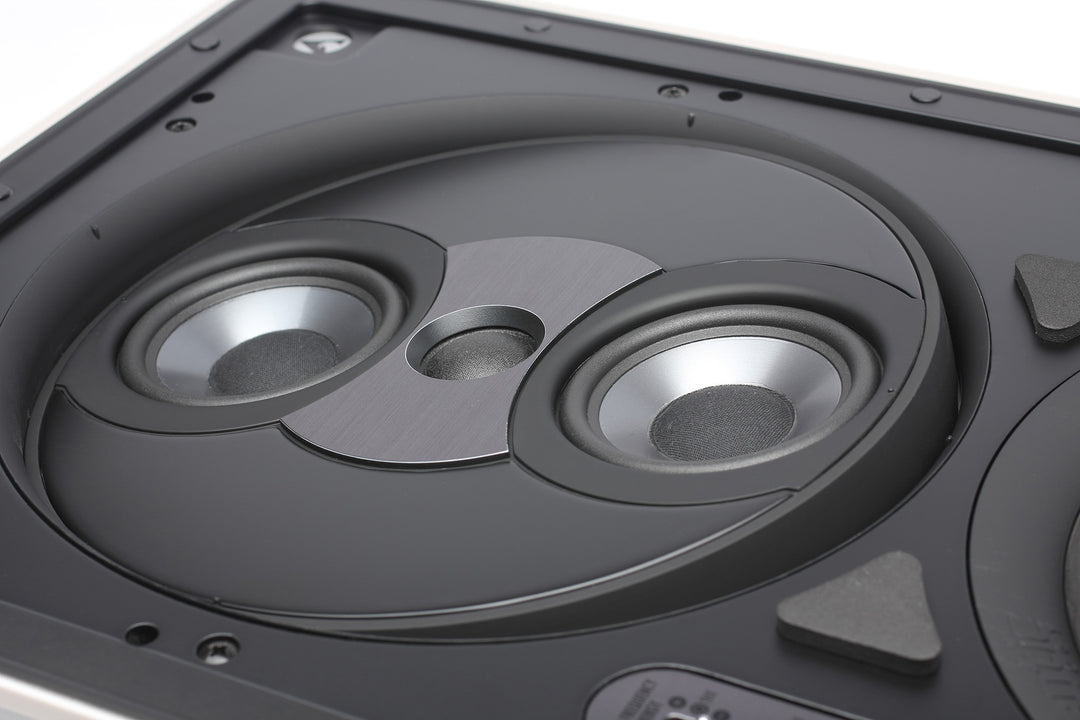

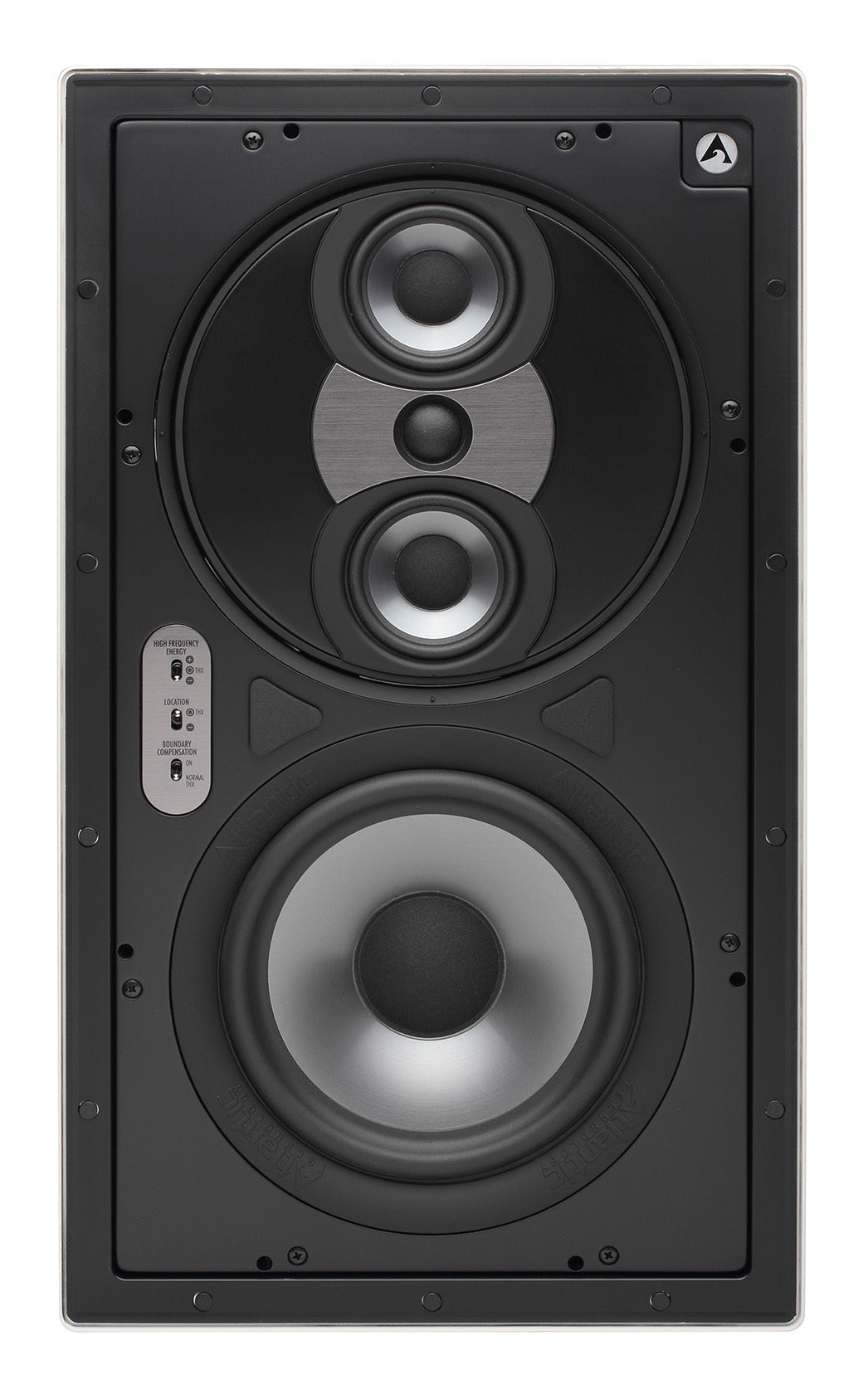

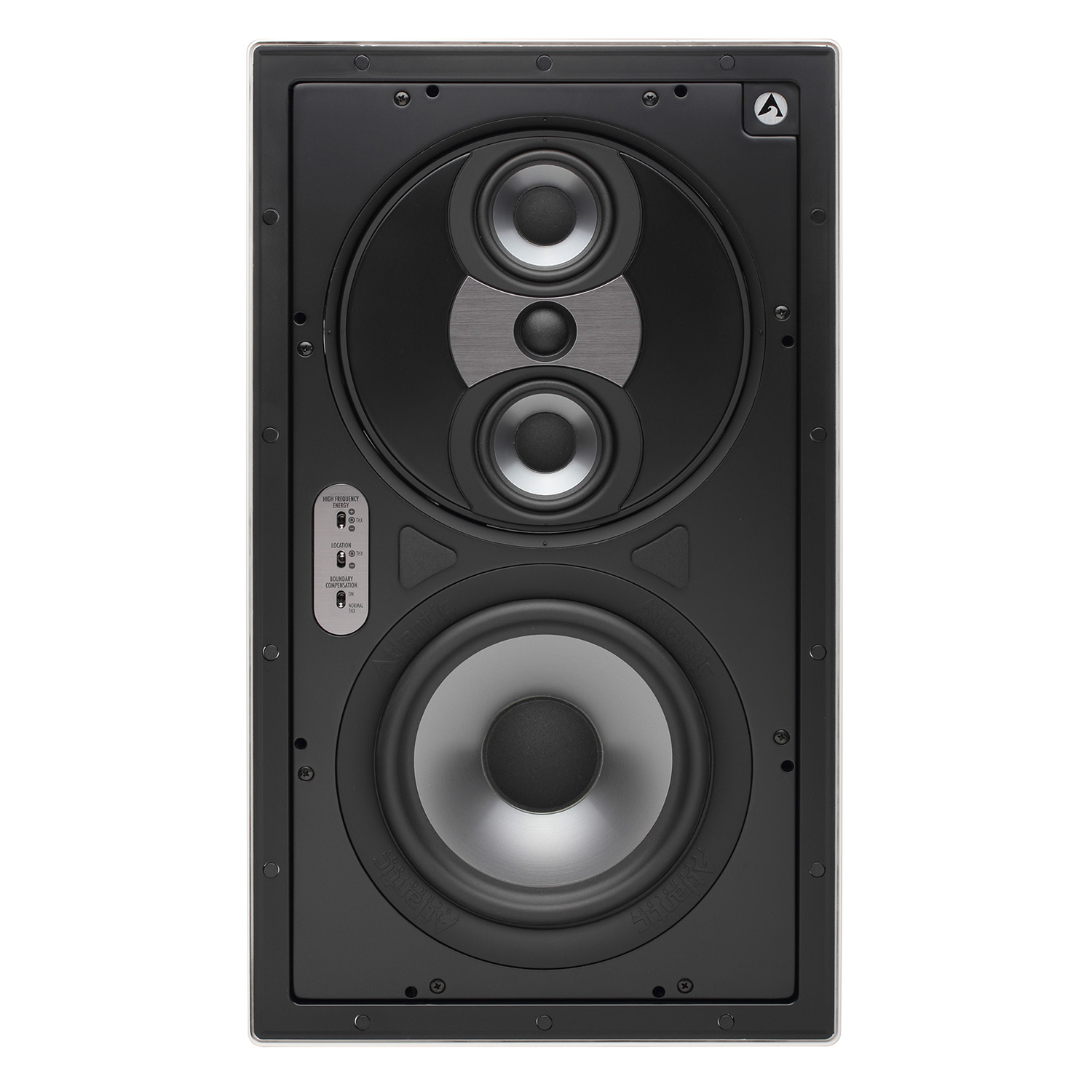

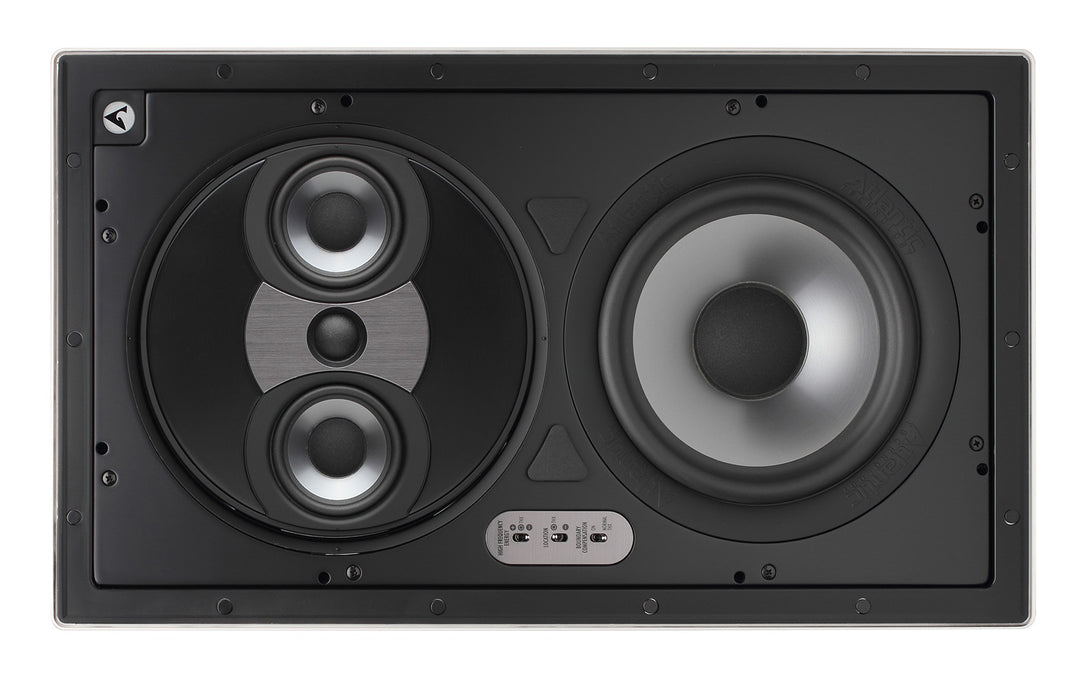

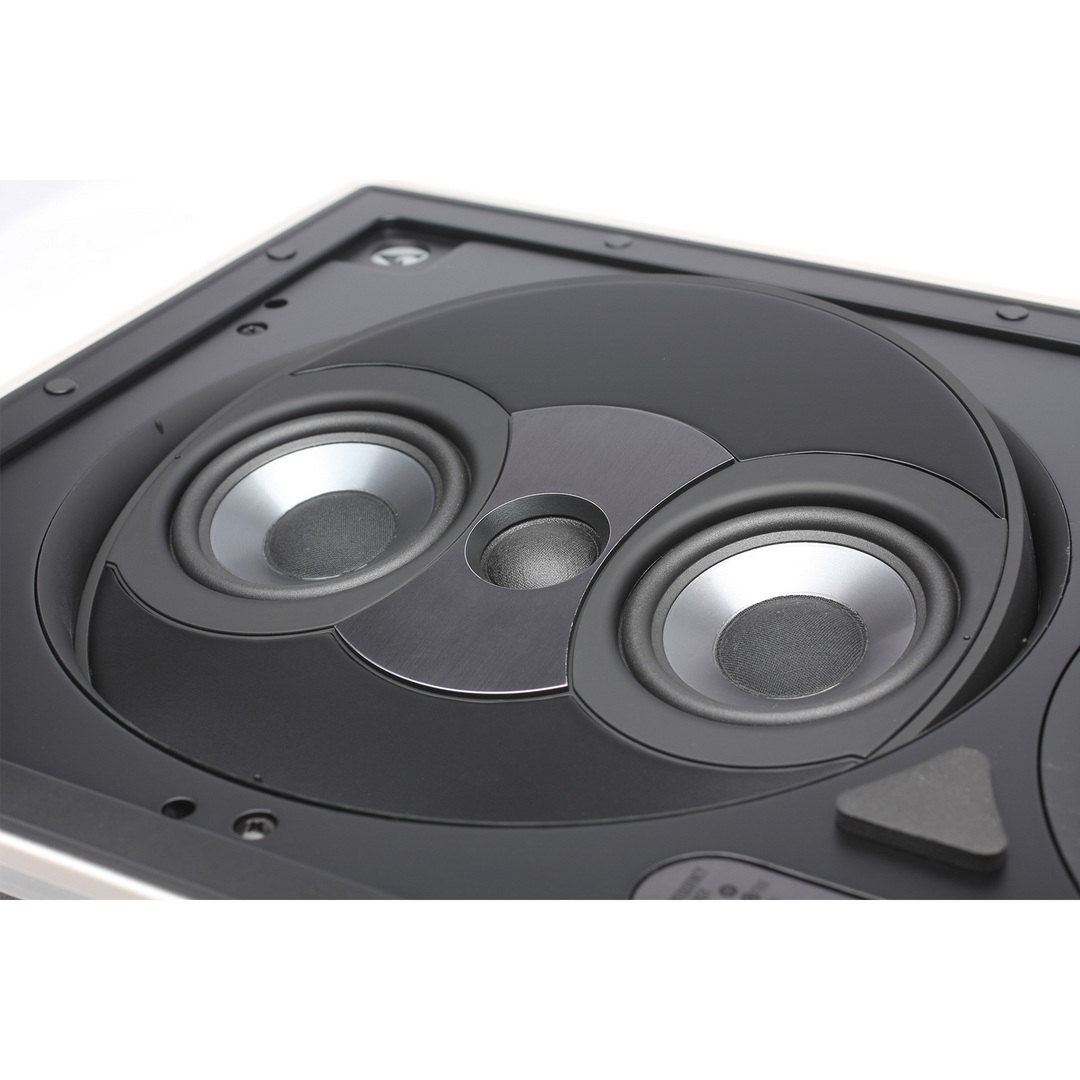

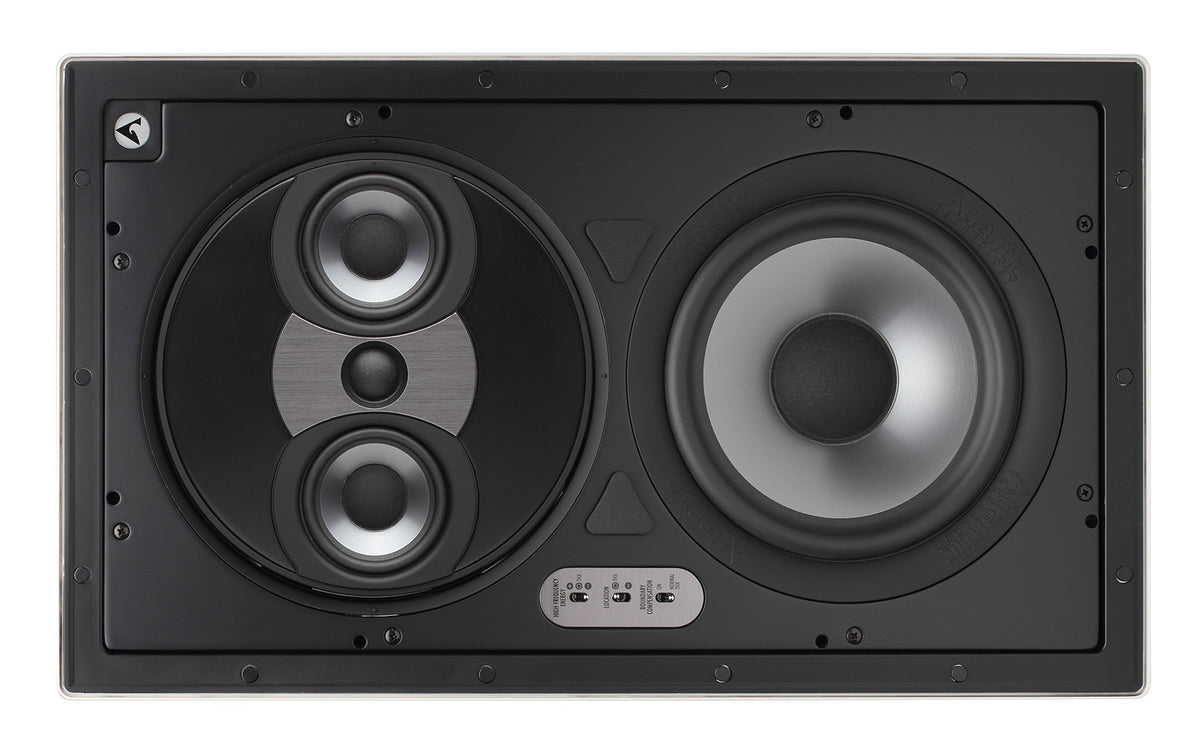

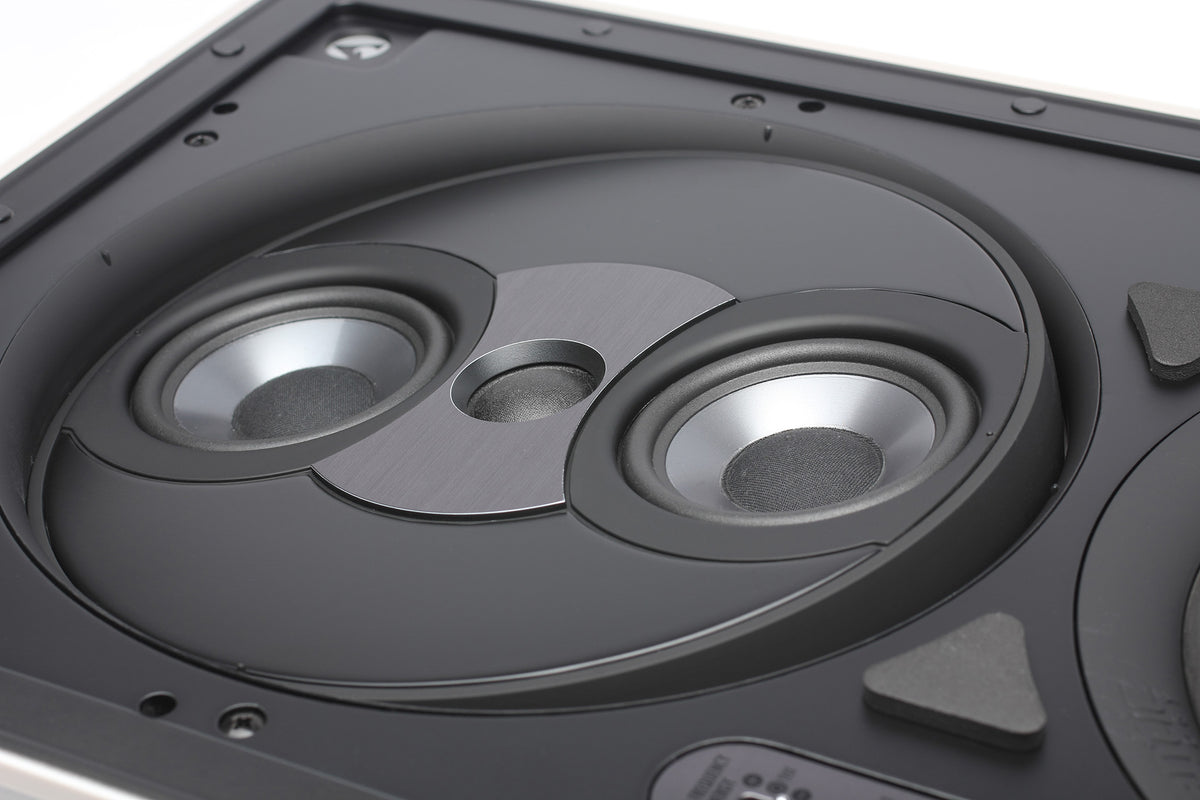

IW-30LCR is a three-way architectural speaker with a woofer and a separate midrange/tweeter assembly. That assembly can rotate and tilt to suit the speaker's position in the wall.

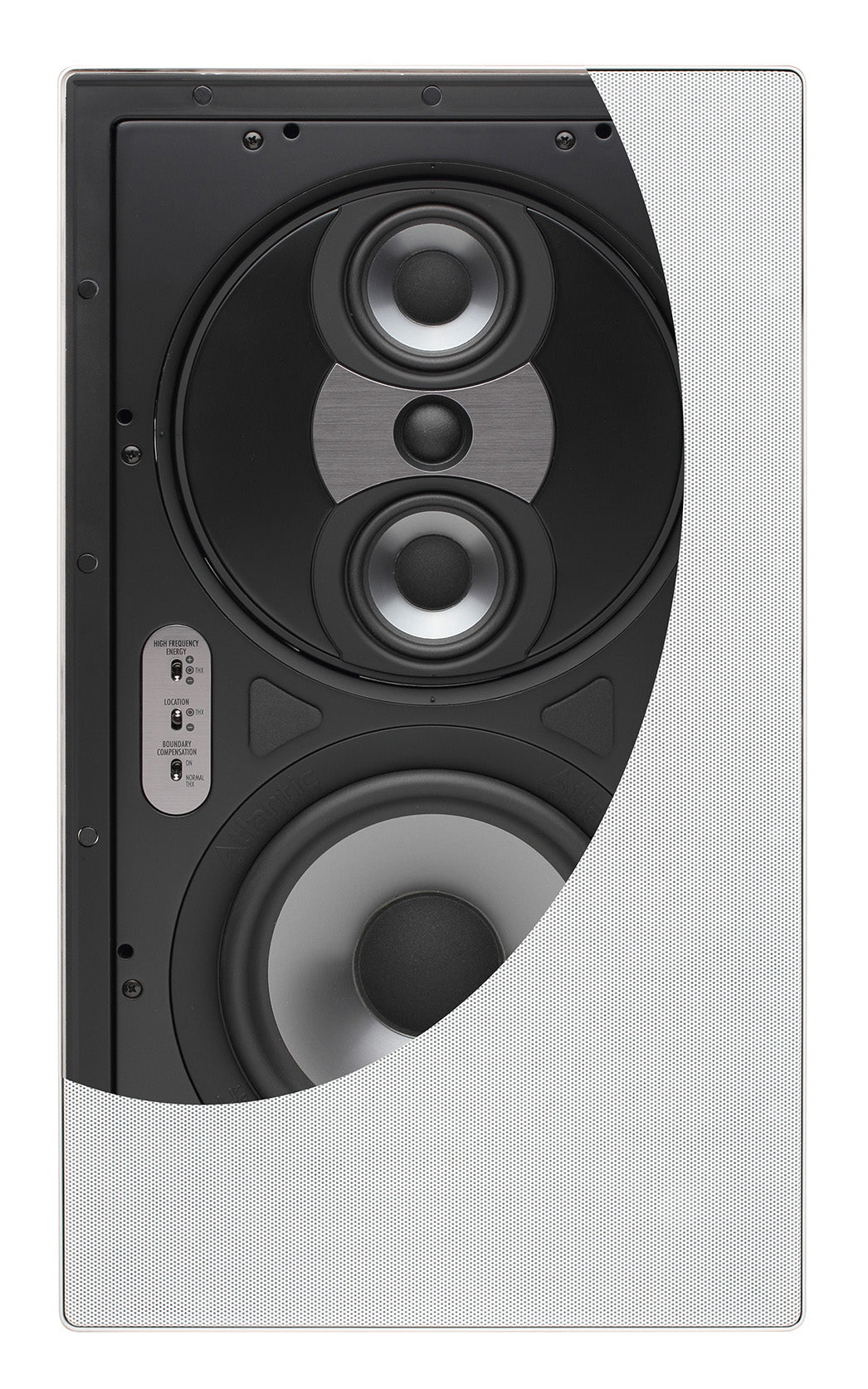

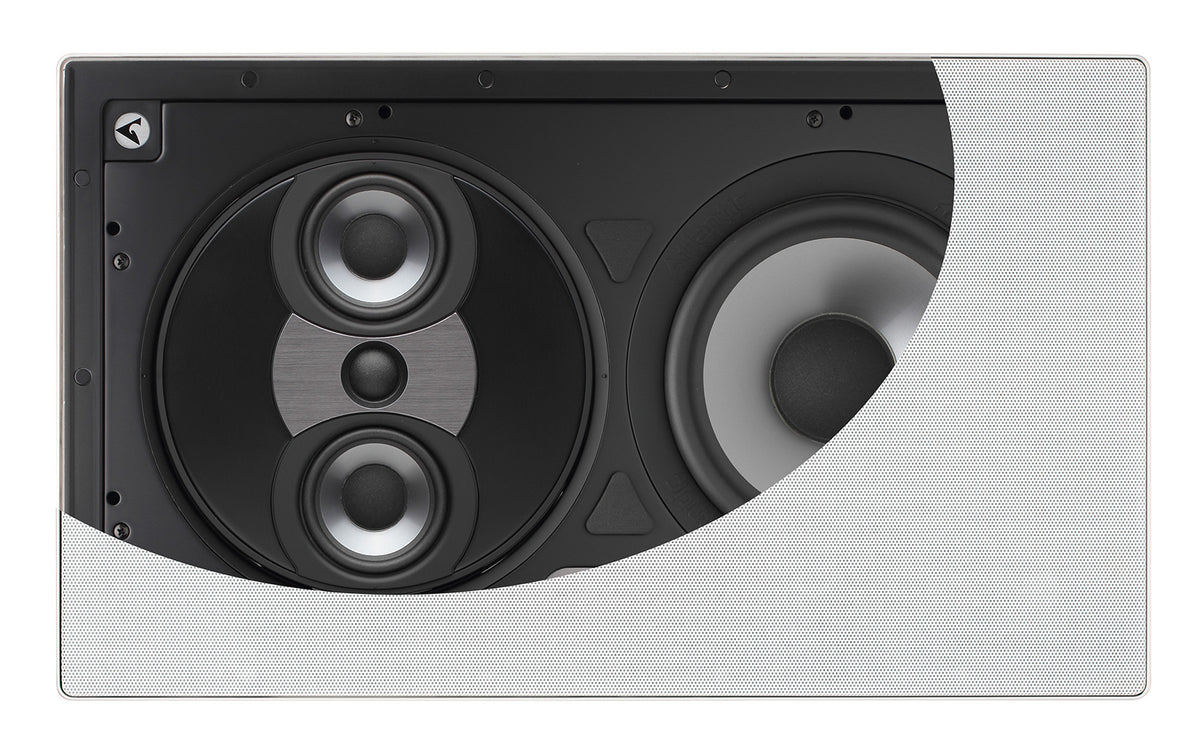

The drivers sit in an MDF baffle behind a magnetic grille and thin bezel. The adjustment is useful when the wall opening and the listening position do not line up directly.
| Type | 3-Way |
|---|---|
| Woofer | 8” (203mm) GLH* |
| Midrange | (2) 3½" (89mm) GLH* |
| Tweeter | 1" (25mm) soft dome LRT™ |
| Frequency Response | 55Hz – 20kHz ±3dB |
| Nominal Impedance | 6Ω |
| Crossover Frequency | 500Hz, 3000Hz 3rd order |
| Sensitivity | 89dB |
| Recommended Amplifier | 25 – 200 Watts RMS |
| Dimensions (W x H x D) | 12 9/16 x 21 13/8 x 3 7/8" (319 x 554 x 100mm) |
| Cutout Dimensions (W x H) | 11 1/8 x 20 3/8" (283 x 518mm) |
| Weight (ea) | 15 lbs. (6.9kg) |
| Optional Back Box | IN-BOX-30LCR |
