An in-wall subwoofer package

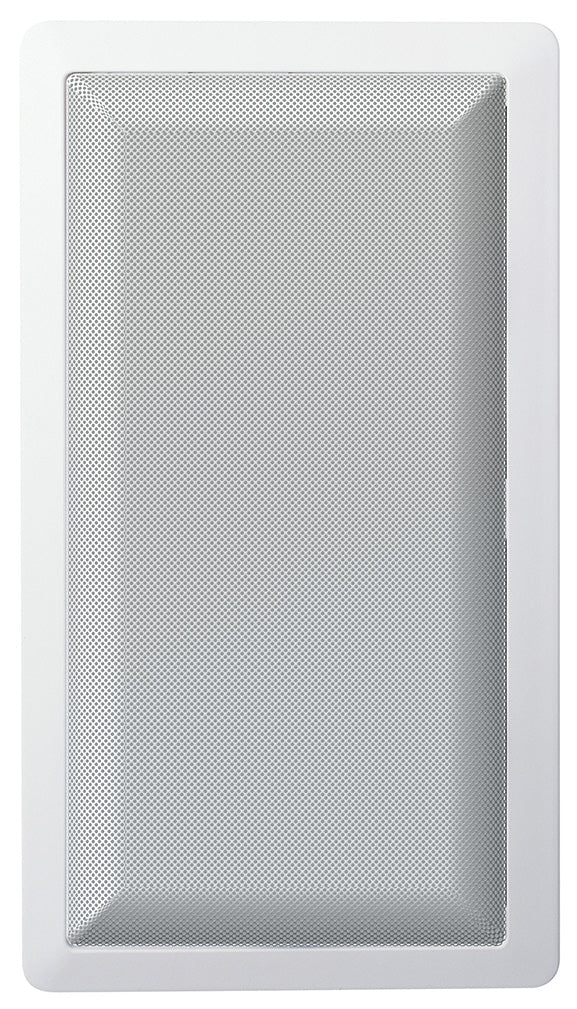

This package combines the IWTS-8eSUB in-wall subwoofer, SA-380 amplifier, and IN-BOX-8eSUB enclosure. The bass speaker sits in the wall while the amplifier remains accessible with the rest of the equipment.
Plan the enclosure position and cable run before the wall is finished. This is an installed system, so wall construction and the space available behind the surface are part of choosing it.

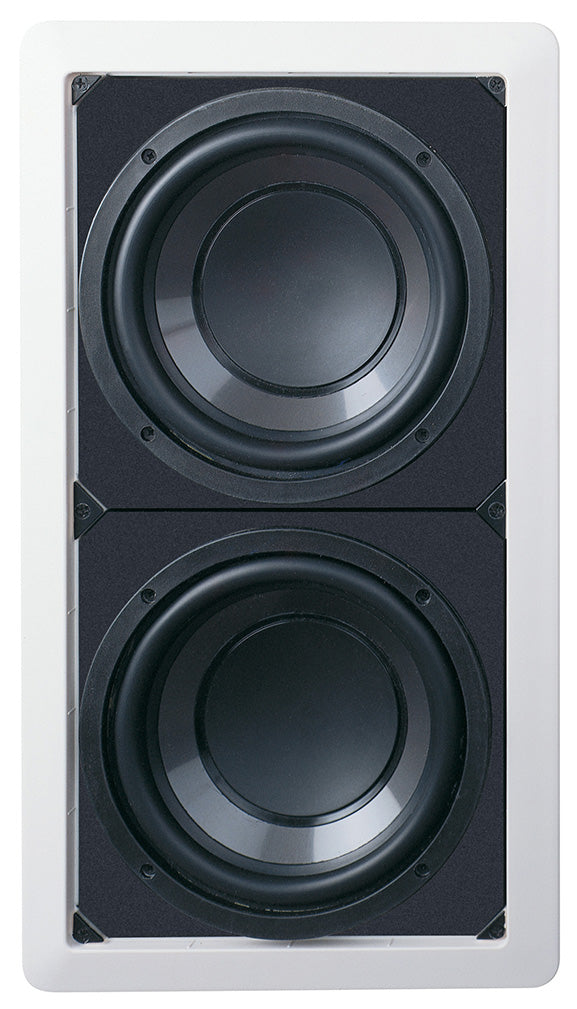

| IWTS-8eSUB / Woofer | (2) 8” High output woofers, Coated Composite Molded Graphite cones with 8 lbs. motor assemblies |
|---|---|
| IWTS-8eSUB / Frequency Response | 20Hz – 100Hz ± 3dB (typical, in room) |
| IWTS-8eSUB / Peak Output | Single 102dB, Dual 105dB (3000 cu. ft. space) |
| IWTS-8eSUB / Woofer Module Dimensions (H x W x D) | Woofer Module: 19-13/16” x 10-5/8” x 3” |
| IWTS-8eSUB / IN-BOX-8 SUB Enclosure Dimensions (H x W x D) | 81” x 14” x 3-1/2” |

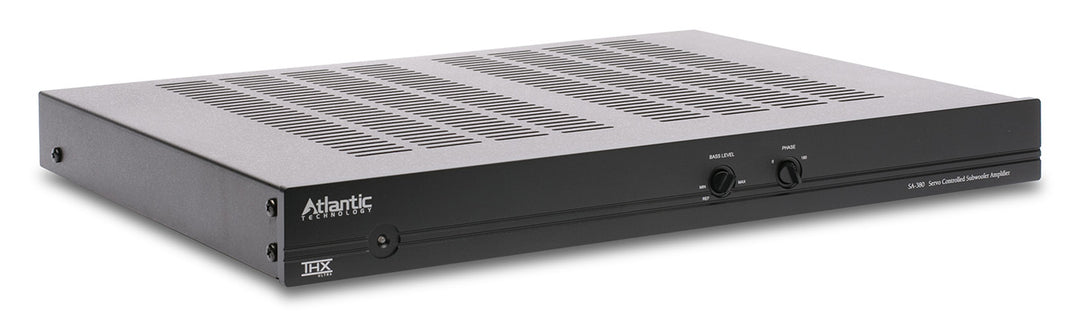

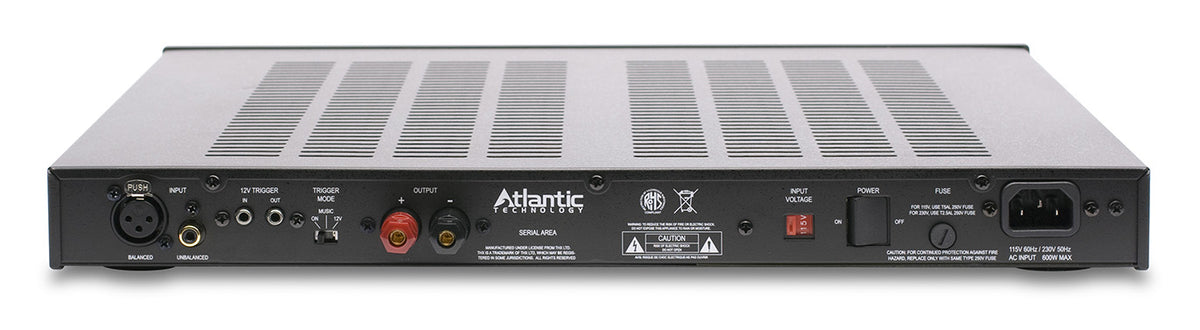

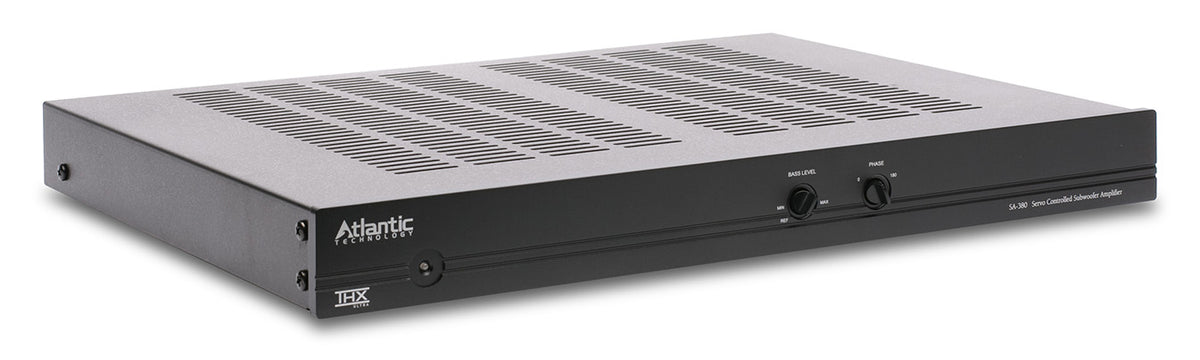

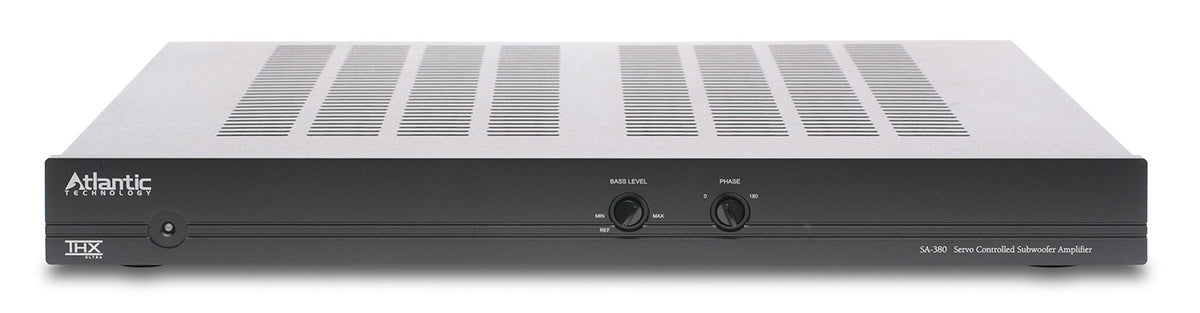

| SA-380 / RMS Power | 380 watts, 4 ohms |
| SA-380 / Signal to Noise Ratio | -97dB @ full power |
| SA-380 / Frequency Response | 20-150Hz +/-3dB |
| SA-380 / Low Level Input Sensitivity | 250mv @ full output, 100Hz |
| SA-380 / Low Level Input Impedance | 15K Ohms |
| SA-380 / Power Supply Storage | 22K microfarads |
| SA-380 / Toroidal Transformer | 400VA |
| SA-380 / Peak Output Stage Current | 40amps rated |
| SA-380 / Dimensions(W x H x D) | 17" x 1.5" x 11.5" (430 x 40 x 330mm) |
| SA-380 / Weight (ea) | 18lbs. (8.2kg) |
