Flexible placement around the screen

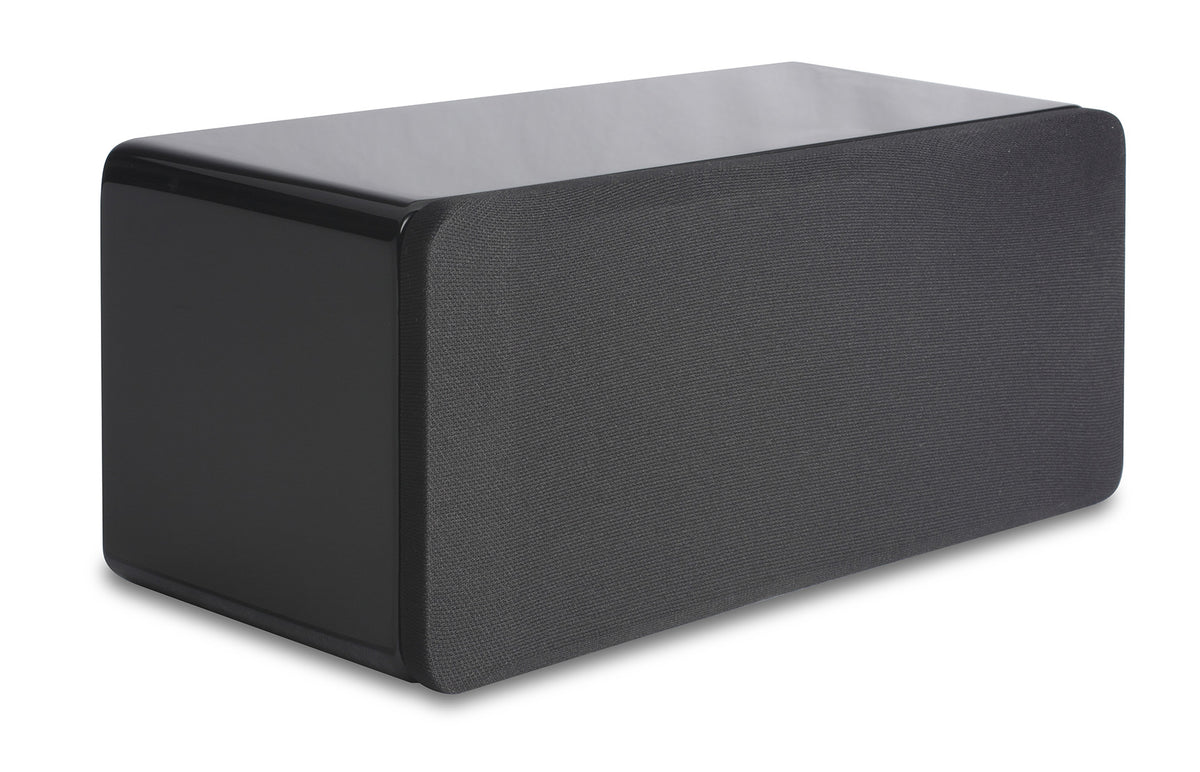

LCR3 is a compact speaker for left/right, center, or surround duties. Vertical and horizontal placement options let the same model fit different positions in a home theater.

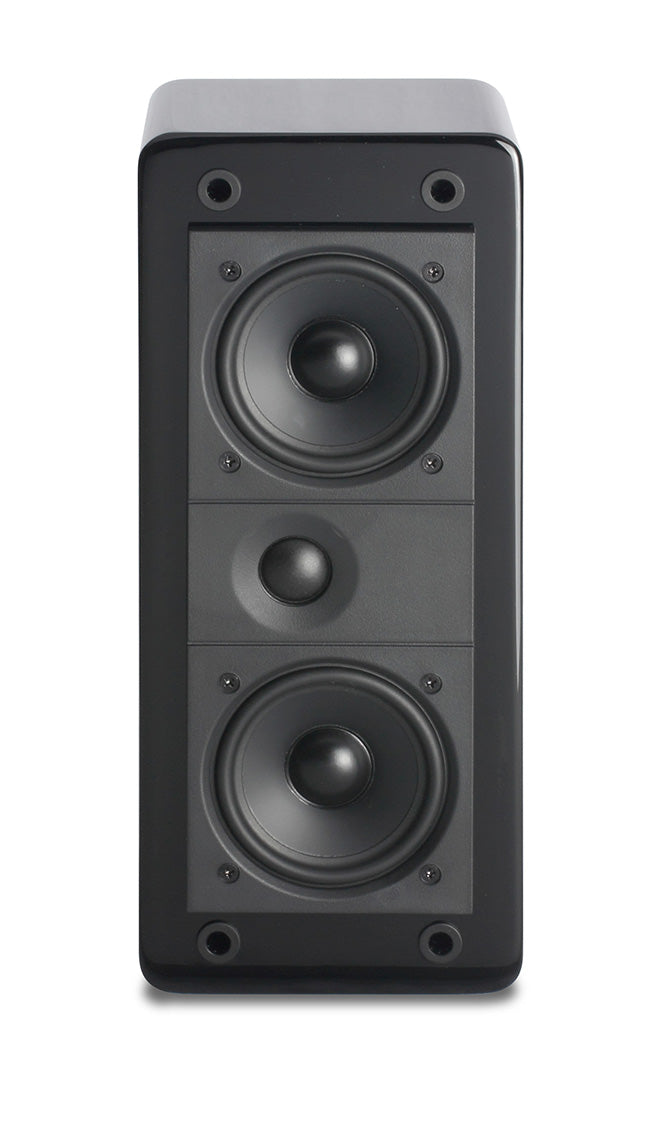

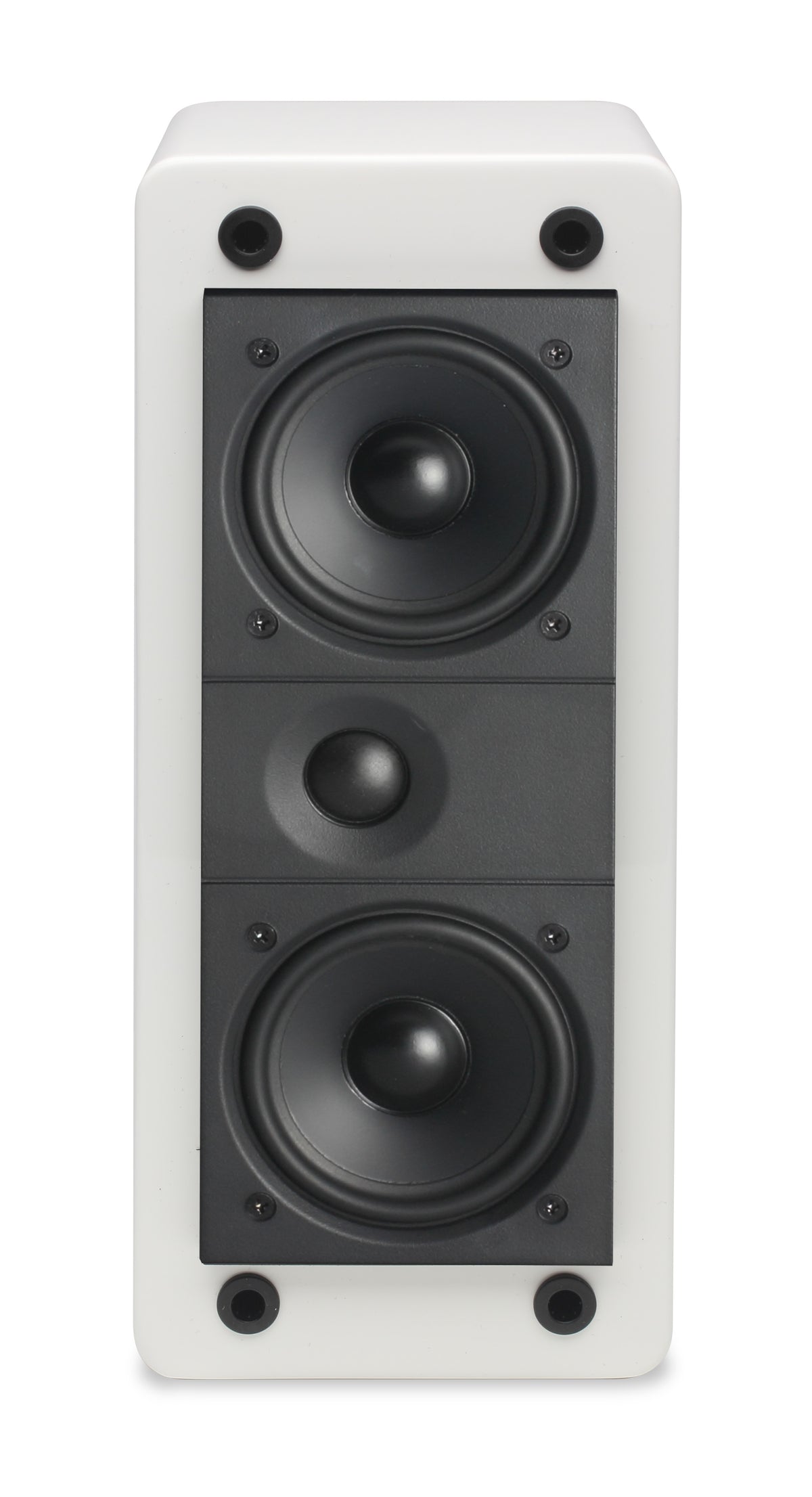

Its drivers are mounted in a dense plate within the cabinet. It can be considered for a system where separate speakers are wanted but a full-size cabinet will not fit every location.
| Type | Sealed-box, 2-way |
|---|---|
| Woofer | (2) 3½˝ Composite Polypropylene/Paper |
| Tweeter | (1) ¾˝ silk dome tweeter |
| Frequency Response | 70Hz – 20kHz ±3dB |
| Nominal Impedance | 6Ω |
| Crossover Frequency | 3.5kHz |
| Sensitivity/Peak Output | 88dB |
| Recommended Amplifier Power/Amplifier Power-THD | 10 – 125 Watts RMS |
| Dimensions w/ grilles (W x H x D) | 4 3/4 x 11 1/4 x 5" w grill (120 x 284 x 127mm) |
| Weight (ea) | 4.8 lbs; 10.57kg |
