A subwoofer for a compact system
The SB-900 adds a dedicated bass channel to a home theater or music system. It is also a companion for Atlantic Technology soundbars when you want a separate subwoofer alongside the front speakers.
Its Clear Filter Technology addresses the effect of the enclosure on bass reproduction. The amplifier and bass controls let you integrate the subwoofer with the rest of the system rather than treating it as a separate source of sound.

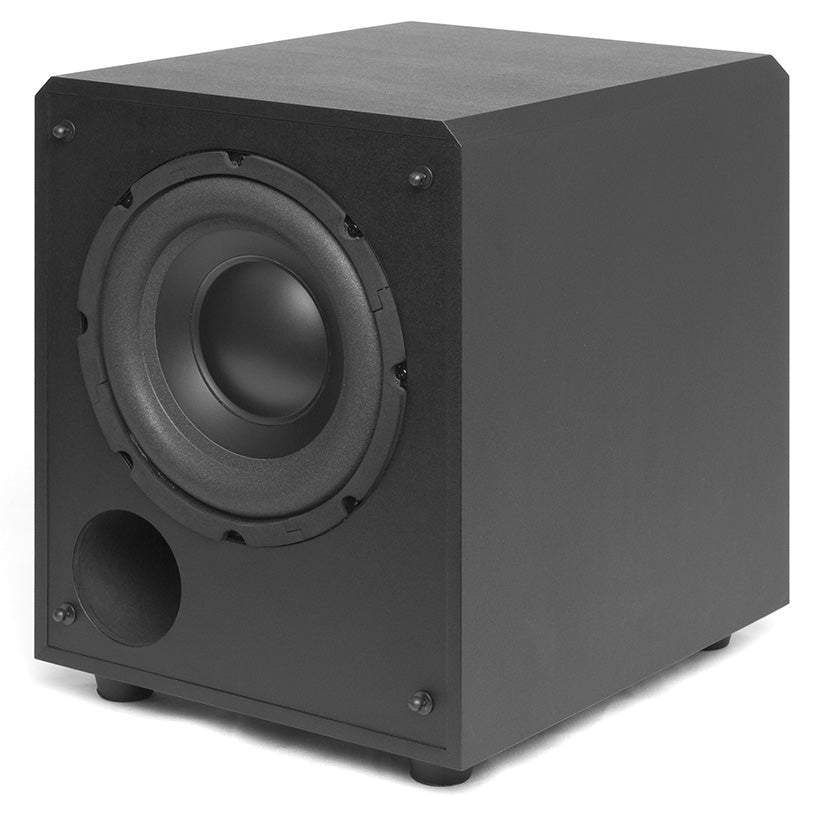

| Bass Driver | 8” (203mm) long-throw composite cone |
|---|---|
| Features | 1.5-inch, vented aluminum voice coil, vented motor |
| Amplifier Feature | Continuous 40–220Hz crossover, 18dB/octave low pass output |
| Output Power | 125W RMS |
| Frequency Response | 32Hz – 250Hz ±3 dB |
| Low Level (line) | 10k ohms |
| Peak Output | 103dB SPL into 1500 cubic Feet |

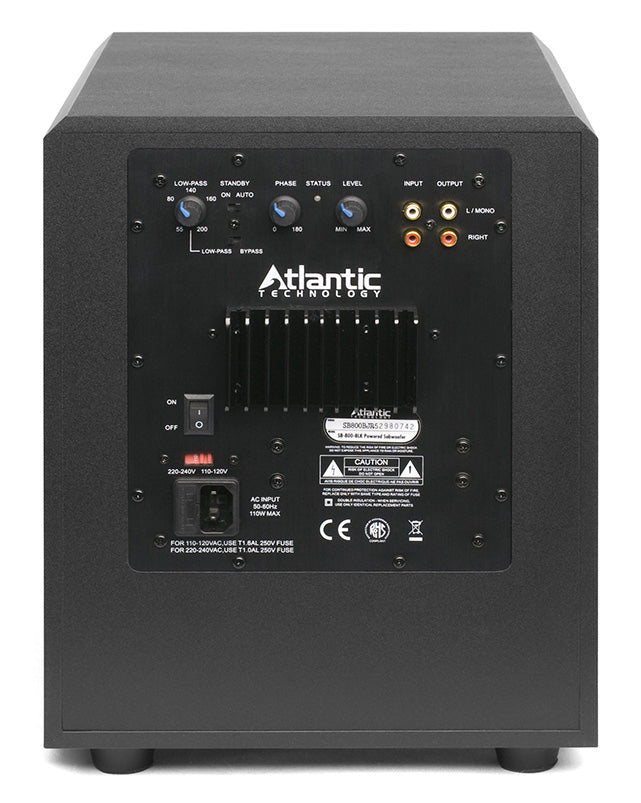

| Inputs | Variable low level stereo inputs and low level outputs |
| Controls | Absolute phase invert switch, Auto signal sensing |
| Dimensions w/ grilles(W x H x D) | 11 x 13 x 13.125 in (279 x 330 x 333mm) |
| Weight (ea) | 28lbs/12.7kg |
| Power Requirements | 110-120/220-240V, 50/60Hz |
