Name: AZ620 / AZ820
Brand: Atlantic Technology
Price: 420.0 USD
Availability: InStock

$420.00/ each

Size

AZ620 (6.5 Inch)

AZ820 (8 Inch)

Free Ground Shipping

30 Day Money-Back Guarantee

In stock, ready to ship
Inventory on the way

Unparalleled In-Ceiling Audio Experience

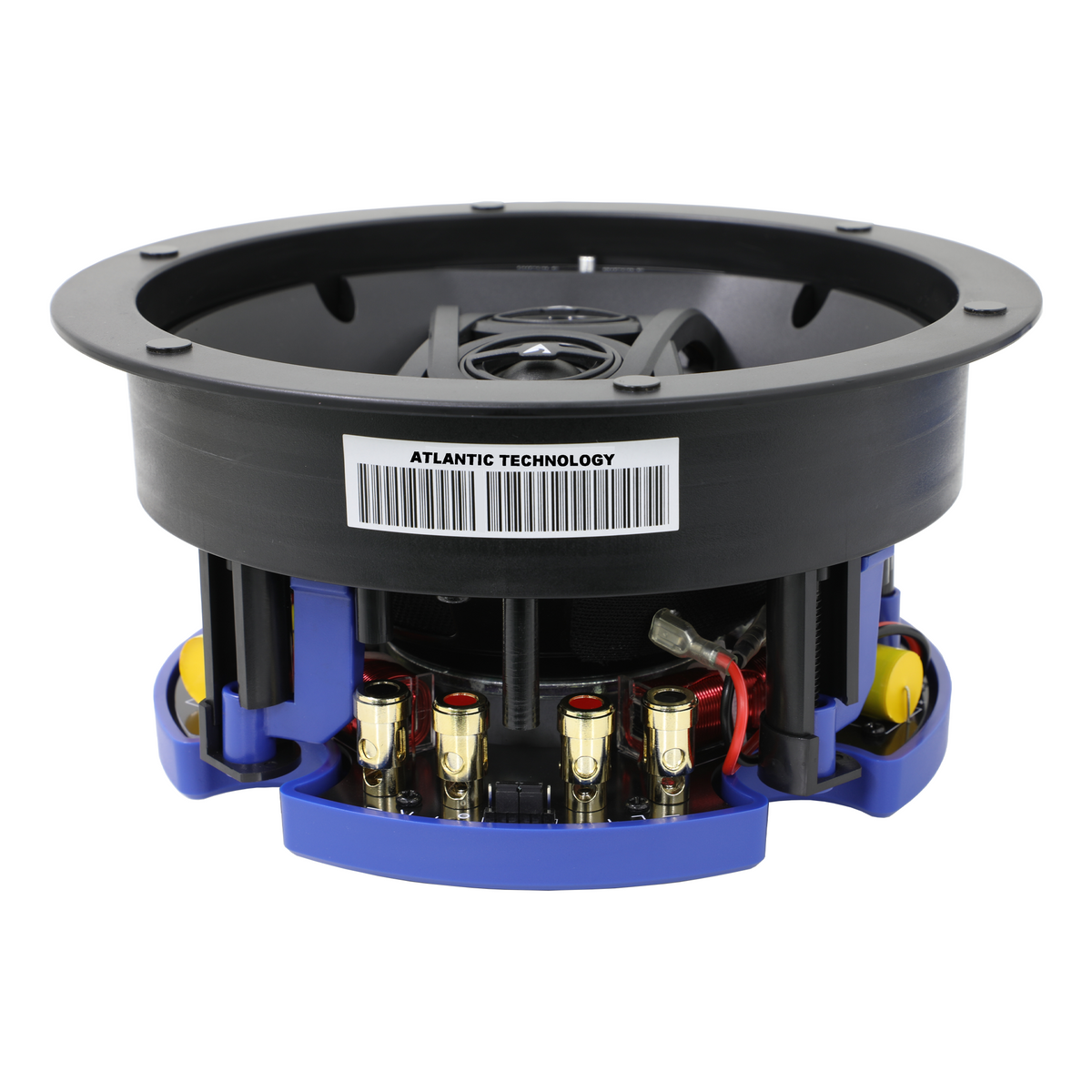

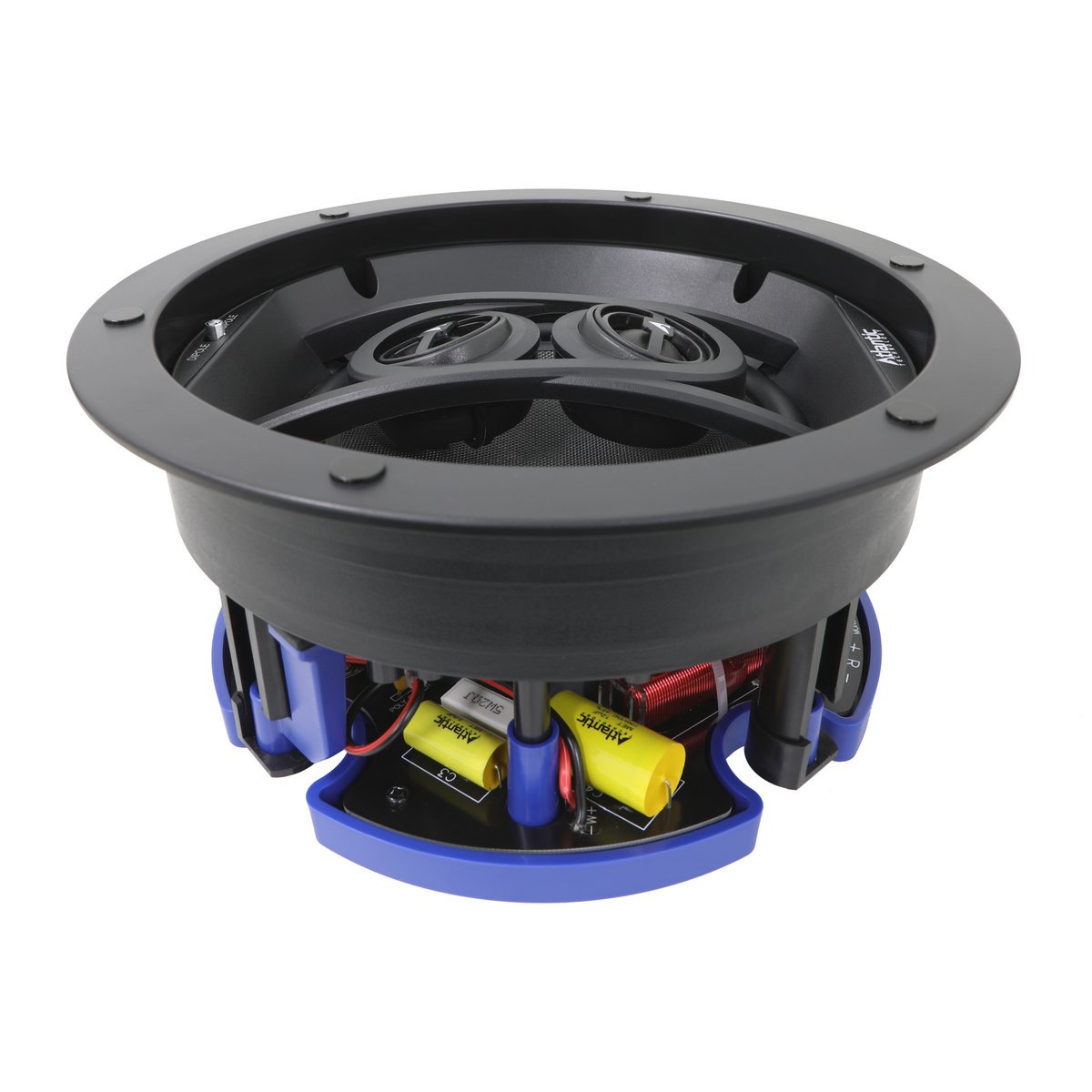

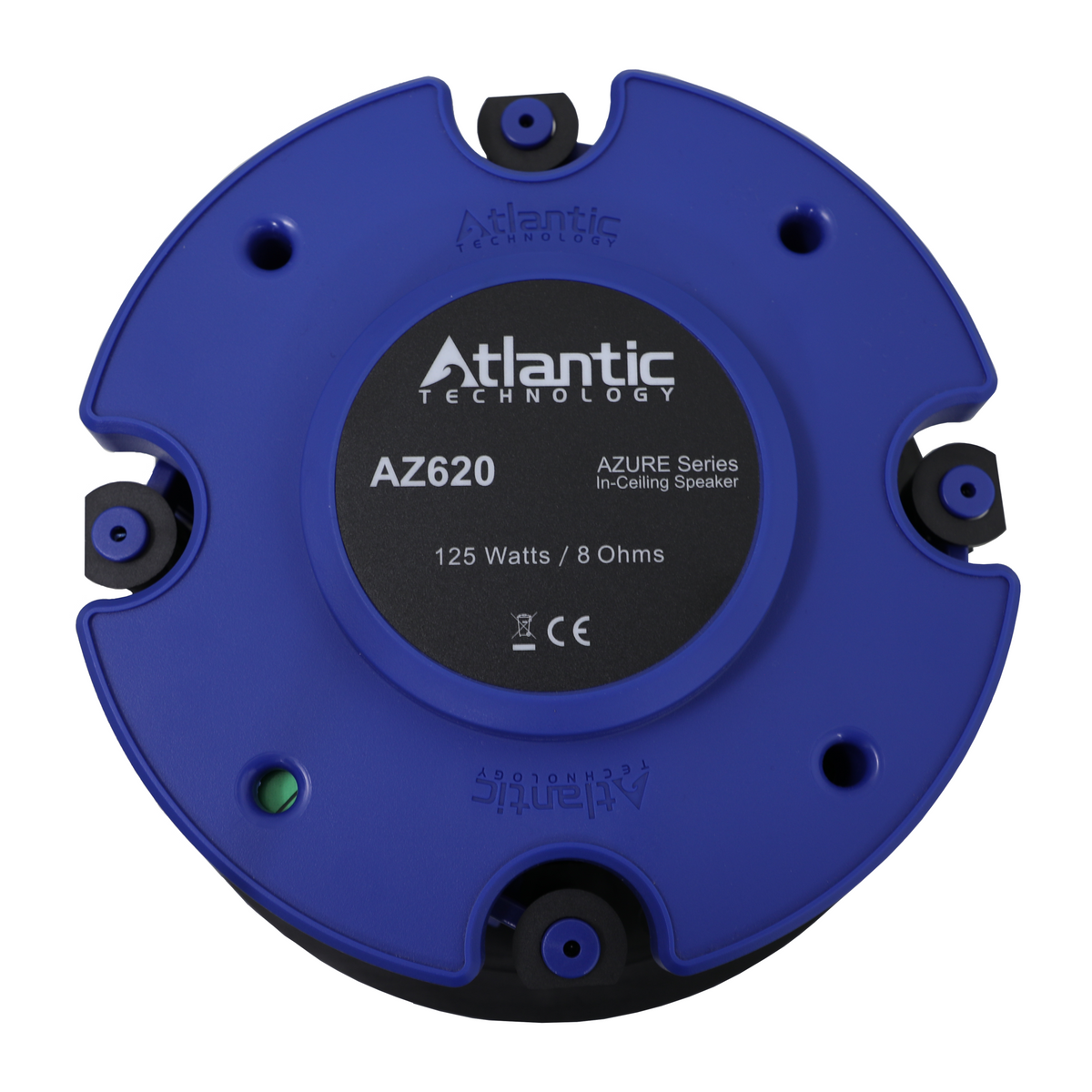

Discover the Azure AZ620 and AZ820, your versatile companions for superior in-ceiling sound. These architectural speakers, built with cutting-edge technology and premium materials, provide the exceptional audio quality of our award-winning 8600 series in a discrete, easy-to-install design. Experience music and home-theater effects like never before, all while seamlessly blending into your space. Simply put, they're the perfect addition to any Atlantic Technology system.

[{"id":39348744421425,"title":"AZ620 (6.5 Inch)","option1":"AZ620 (6.5 Inch)","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":{"id":28087763501105,"product_id":6582611378225,"position":6,"created_at":"2021-06-02T12:20:08-04:00","updated_at":"2021-06-02T12:20:38-04:00","alt":null,"width":2048,"height":2048,"src":"\/\/shop.atlantictechnology.com\/cdn\/shop\/products\/az620backweb.png?v=1622650838","variant_ids":[39348744421425]},"available":true,"name":"AZ620 \/ AZ820 - AZ620 (6.5 Inch)","public_title":"AZ620 (6.5 Inch)","options":["AZ620 (6.5 Inch)"],"price":42000,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","featured_media":{"alt":null,"id":20332832358449,"position":6,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/shop.atlantictechnology.com\/cdn\/shop\/products\/az620backweb.png?v=1622650838"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39348744454193,"title":"AZ820 (8 Inch)","option1":"AZ820 (8 Inch)","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":{"id":28087763370033,"product_id":6582611378225,"position":7,"created_at":"2021-06-02T12:20:07-04:00","updated_at":"2021-06-02T12:20:38-04:00","alt":null,"width":2048,"height":2048,"src":"\/\/shop.atlantictechnology.com\/cdn\/shop\/products\/az820back.png?v=1622650838","variant_ids":[39348744454193]},"available":true,"name":"AZ620 \/ AZ820 - AZ820 (8 Inch)","public_title":"AZ820 (8 Inch)","options":["AZ820 (8 Inch)"],"price":68000,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","featured_media":{"alt":null,"id":20332832391217,"position":7,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/shop.atlantictechnology.com\/cdn\/shop\/products\/az820back.png?v=1622650838"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

	AZ600	AZ610	AZ620	AZ810	AZ820
Woofer	Woofer 6 1/2 ” Humidity-resistant low distortion lightweight fiberglass cone, 1" voice coil, vented pole piece, butyl rubber surround	6 1/2 ” Humidity-resistant low distortion lightweight fiberglass cone, 1" voice coil, vented pole piece, butyl rubber surround 8” Humidity-resistant, low distortion lightweight fiberglass cone, 1.25" voice coil, vented pole piece, butyl rubber surround	6.5" dual 1" voice coil, vented pole piece, humidity-resistant low distortion curved lightweight fiberglass cone, butyl rubber surround	8” Humidity-resistant, low distortion lightweight fiberglass cone, 1.25" voice coil, vented pole piece, butyl rubber surround	8" dual 1" voice coil, vented pole piece, humidity-resistant low distortion curved lightweight fiberglass cone, butyl rubber surround
Tweeter (LRT = Low Resonance Tweeter)	Tweeter (LRT = Proprietary Low Resonance Tweeter) 1″ LRT™ Coated silk dome tweeter wide dispersion 30° orbital pivoting, ferrofluid cooled Neodymium magnet	Tweeter (LRT = Low Resonance Tweeter) 1″ LRT™ coated silk dome wide dispersion 30° orbital pivoting tweeter, ferrofluid cooled Neodymium magnet, +/- 3 dB tweeter level/boundary compensation	Dual 3/4″ LRT™ coated silk dome wide dispersion 30° pivoting orbital tweeters ferrofluid cooled Neodymium magnets	Tweeter (LRT = Low Resonance Tweeter) 1″ LRT™ coated silk dome wide dispersion 30° orbital pivoting tweeter, ferrofluid cooled Neodymium magnet, +/- 3 dB tweeter level/boundary compensation	Dual 1″ LRT™ coated silk dome wide dispersion 30° pivoting orbital tweeters ferrofluid cooled Neodymium magnets
Frequency Response	48 – 22kHz, +/-3dB	48 – 22kHz, +/-3dB	48 - 22kHz, +/-3dB	45 - 22kHz, +/-3dB	45 - 22kHz, +/-3dB
Sensitivity	87dB	88dB	88dB	89dB	89dB
Impedance	6Ω	6Ω	2 x 8 ohms, stereo; 1 x 4 ohms, mono	6Ω	2 x 8 ohms, stereo; 1 x 4 ohms, mono
Recommended Amplifier Power	10-125 Watts RMS	10-125 watts RMS	10-125 watts RMS	10-150 Watts RMS	10-150 Watts RMS

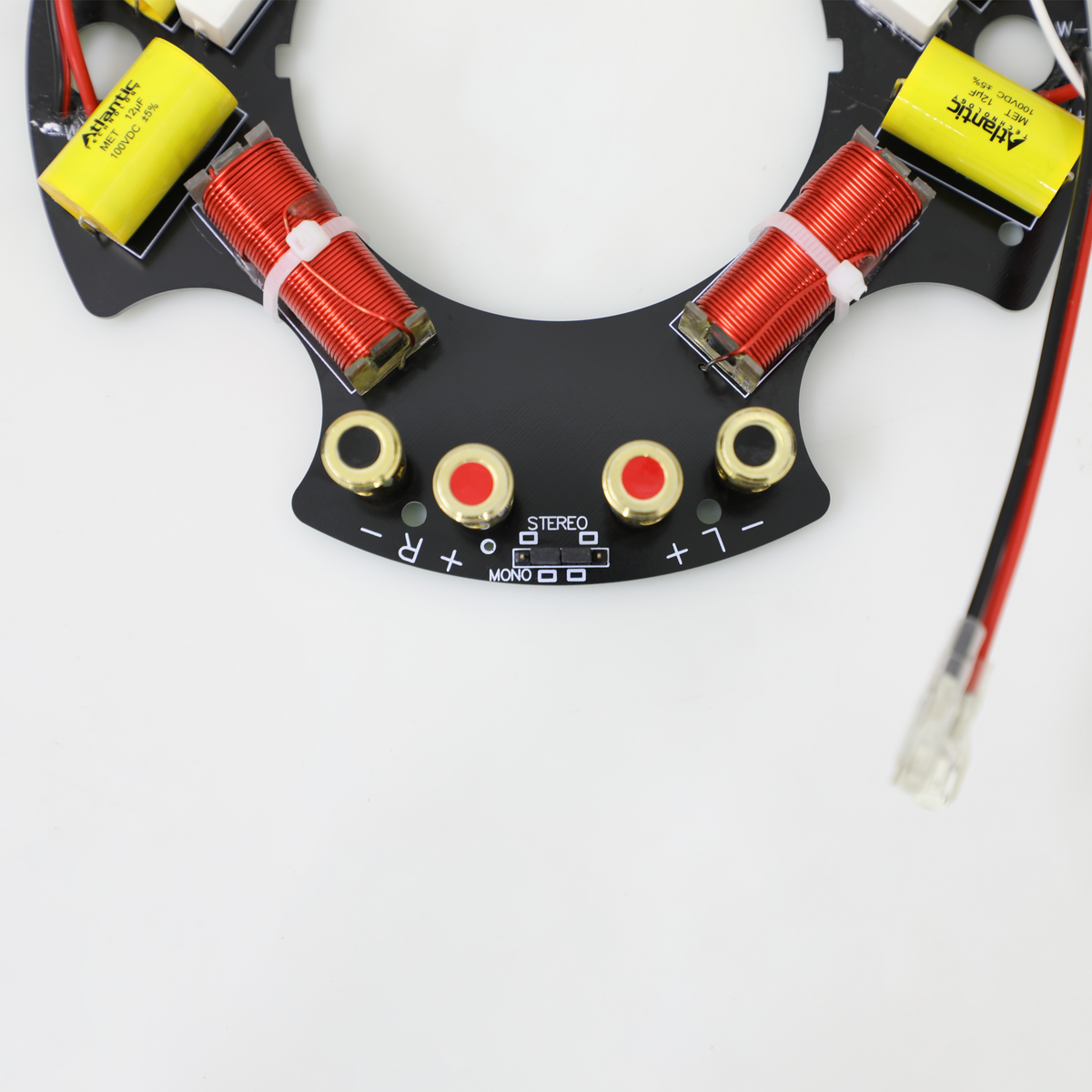

Crossover	Crossover 3 kHz, 12 db/octave, polypropylene capacitors, air core inductors, resettable polyswitch protection circuit	3 kHz, 12 db/octave, polypropylene capacitors, air core inductors, resettable polyswitch protection circuit 2.7 kHz, 12 db/octave, polypropylene capacitors, air core inductors resettable polyswitch protection circuit	2.7 kHz, Computer optimized 12 db/octave, audiophile components polypropylene capacitors, air core inductors, resettable polyswitch protection circuit	3 kHz, 12 db/octave, polypropylene capacitors, air core inductors, resettable polyswitch protection circuit 2.7 kHz, 12 db/octave, polypropylene capacitors, air core inductors resettable polyswitch protection circuit	2.7 kHz, Computer optimized 12 db/octave, audiophile components polypropylene capacitors, air core inductors, resettable polyswitch protection circuit
Cut-Out Size	8" (202mm)	8" (202mm)	8" (202mm)	9 5 /8″ (244mm)	9 5 /8″ (244mm)
Depth	4 13/16" (122.24mm)	4.5" (115mm)	4 13/16" (122.24 mm)	4 3/4″ (121mm)	5 1/2" (139.7 mm)
Net weight	3.6 lbs	3.6 lbs.	4.7 lbs (2.14 kg)	5.25 lbs.	5.15 lbs. (2.34 kg)
Dimensions	9 1/4 ” Diameter (235mm)	9 1/4 ” Diameter (235mm)	9 3/8 ” diameter (238mm)	10 7/8″ Diameter (276mm)	11 3/16″ diameter (284mm)
New Construction Kit (optional)	IC-NC-TLC-6	IC-NC-TLC-6	IC-NC-TLC-6	IC-NC-TLC-8	IC-NC-TLC-8
In-ceiling back box (optional)	IC-BOX-6/8	IC-BOX-6/8	IC-BOX-6/8	IC-BOX-6/8	IC-BOX-6/8
Square Grills (optional)	SQ-GRILLS-6 (9 3/8")	SQ-GRILLS-6 (9 3/8")	SQ-GRILLS-6 (9 3/8")	SQ-GRILLS-8 (11″)	SQ-GRILLS-8 (11″)
Required Ceiling Thickness	0.5 – 1″	0.5 – 1″	0.5 – 1″	0.5 – 1″	0.5 – 1″

Transformative Audio, Unmatched Versatility

Innovative Fiberglass Woofers and Dual Voice Coils

Exceptional Sound Precision

Immerse yourself in a superior audio landscape with our advanced, humidity-resistant, lightweight fiberglass woofers and extended-throw dual voice coils. Achieve remarkable bass performance and vibrant midranges that elevate your auditory experience.

Dynamic Neodymium Tweeter with Silk Dome

Advanced Tweeter Technology

Discover sound with greater depth and dimension. Our 1-inch silk-dome tweeter, featuring a 30° pivoting system, provides optimal sound dispersion. Its neodymium magnet and Ferrofluid cooling enhance efficiency and reliability, pushing your listening experience beyond the conventional.

Tri-Mode Functionality for Tailored Listening

Unparalleled Versatility

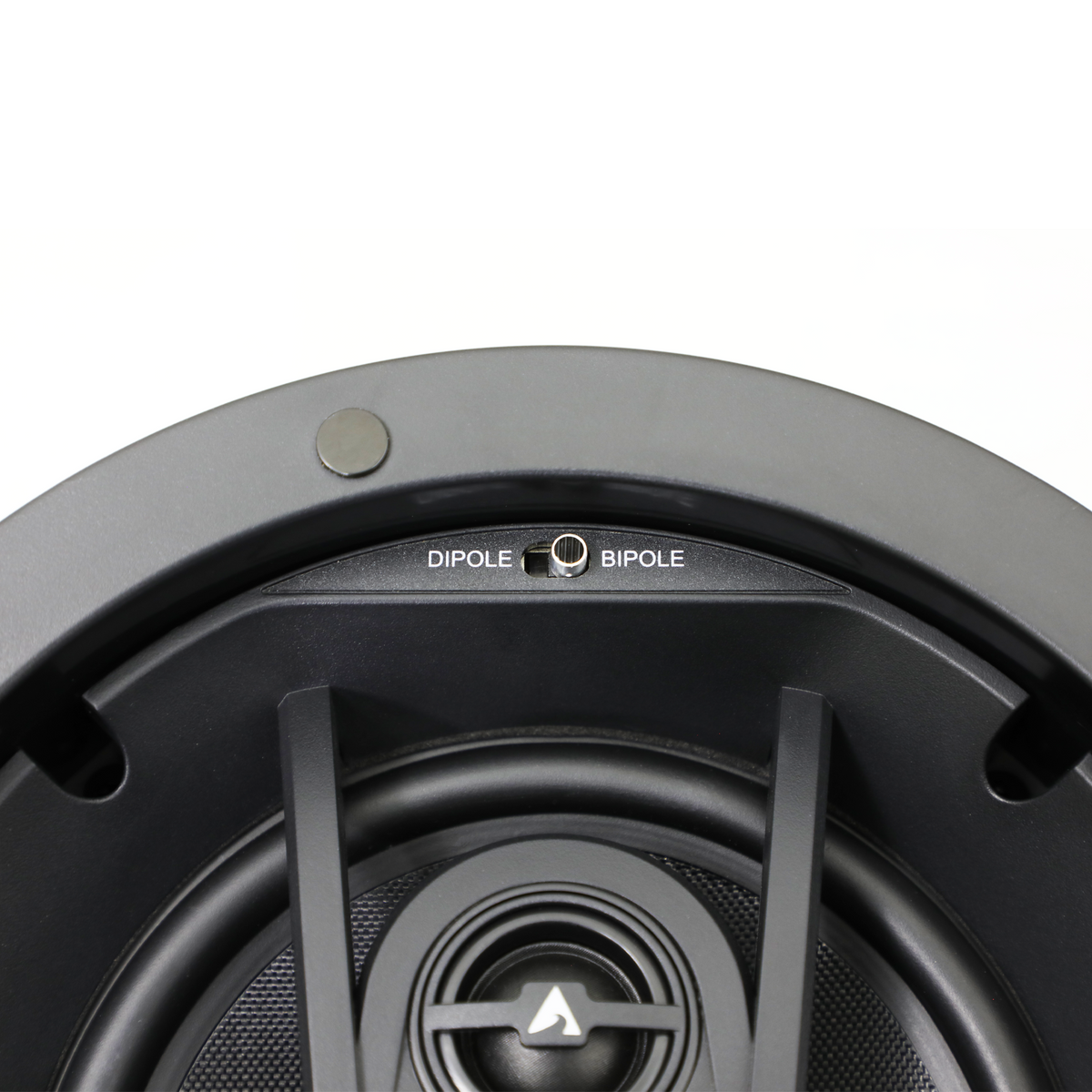

Azure™ series speakers deliver versatility in its purest form. With Mono, Single-Point Stereo, and Dipole/Bipole modes, enjoy tailored audio to suit your environment and preferences. Azure goes beyond standard audio reproduction, offering full 2-channel stereo sound from a single speaker and customizable ambient sound for cinematic experiences.

Unobtrusive and Sleek

Elegant Installation

Azure™ speakers offer a seamless setup with ultra-thin bezels and magnetically attached, paintable grilles. Easy-to-use rotating clamp fasteners ensure secure installation, subtly blending into your space.

*Ceiling installation brackets (IC-NC-TLC-6/8) & backbox (IC-BOX-6/8) can be purchased separately, please contact us for details. These items are considered parts items, and no return or refund will be allowed once shipped.
